SLU16CH036 Series
SLU16CH036-12-G406
Slotless BLDC Motor

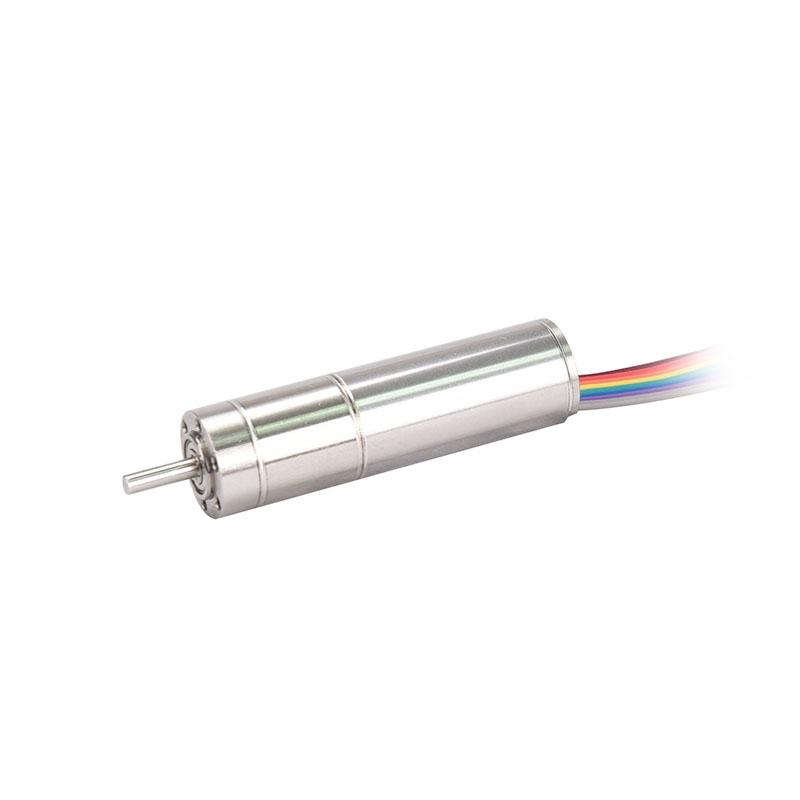

Featured product media

Quick Facts

SLU16CH036-12-G406 Series Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.337 A Rated Current
  • 92.0478 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.980 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.179 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 37 RPM
No Load Current170 mA
Nominal Speed30 RPM
Nominal Torque (Max Cont. Torque)92.0478 oz-in
Nominal Current (Max Cont. Current)1.49 A
Rated Speed34.5 RPM
Rated Torque92.0478 oz-in
Rated Current0.337 A
Stall Torque2413.0673 oz-in
Stall Current7.27 A
Max. Efficiency60.7%

Motor Characteristics

Terminal Resistance1.65 ohm
Terminal Inductance0.102 mH
Speed/Torque Gradient 37.6688 RPM/oz-in
Speed Constant1240 RPM/V
Mechanical Time Constant1.56 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load11.24 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit8.992 lbf
Max Speed (Mechanical)74 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 185.00 °F
Insulation ClassF
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio406
Nominal Reduction Ratio405.94
Number Of Stages4

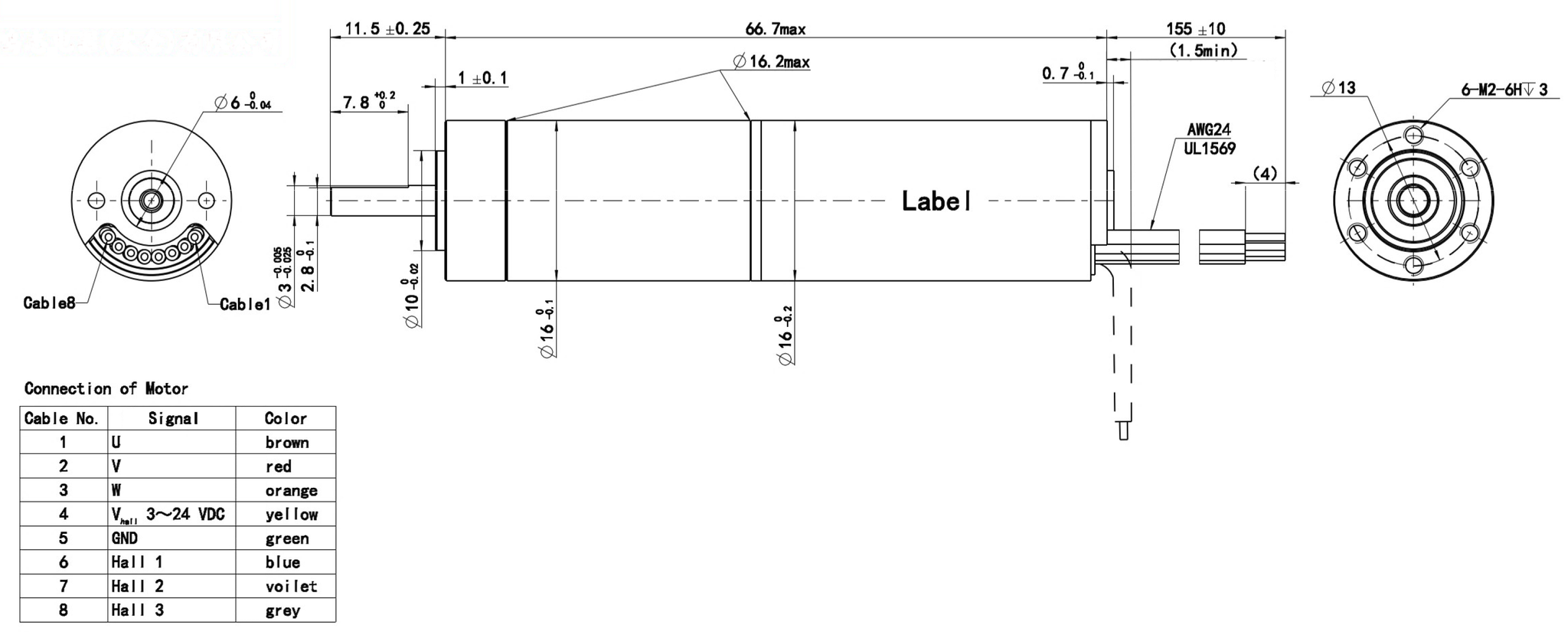

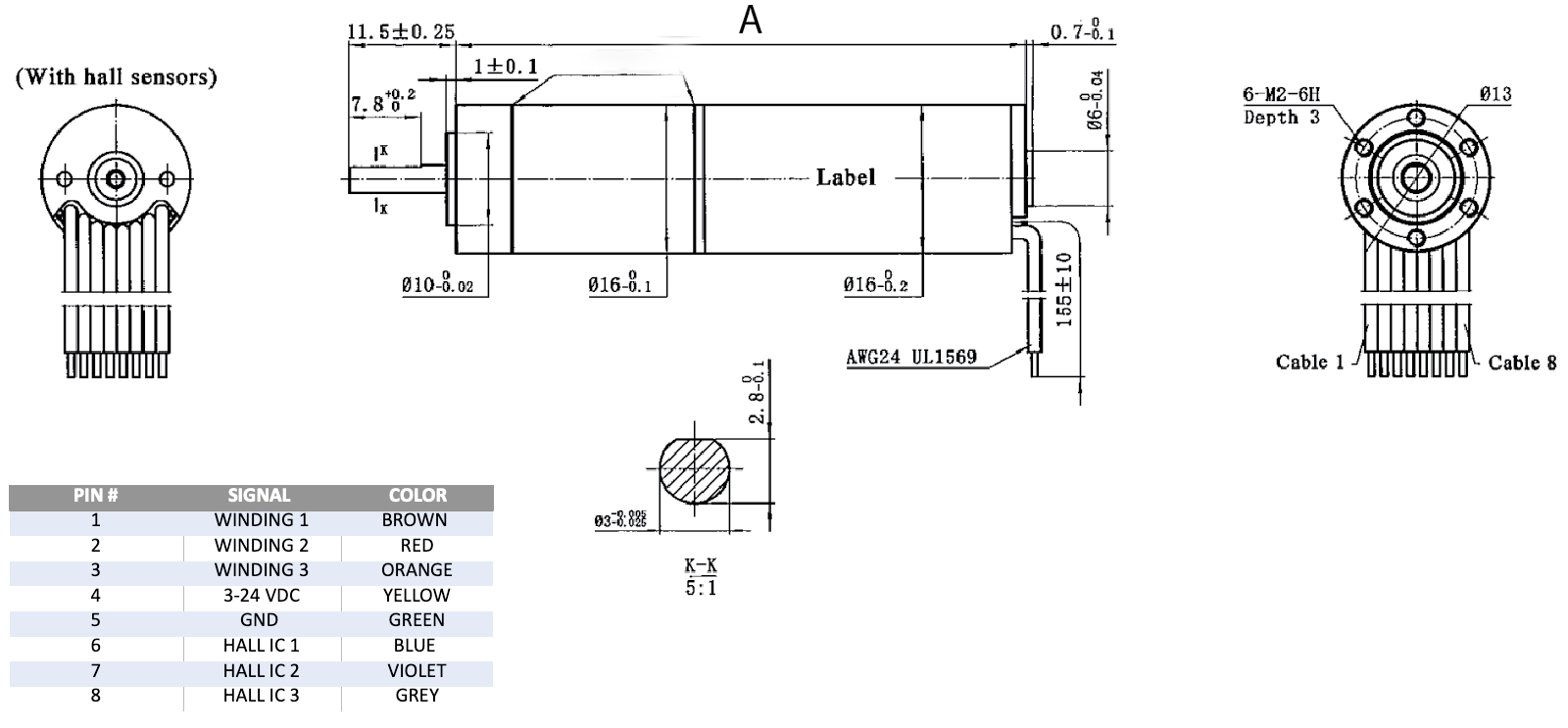

Dimensions

ModelDIM. A (length) in
SLU16CH036-12-G4062.980 in
