SLU16CH036 Series
SLU16CH036-24-G172
Slotless BLDC Motor

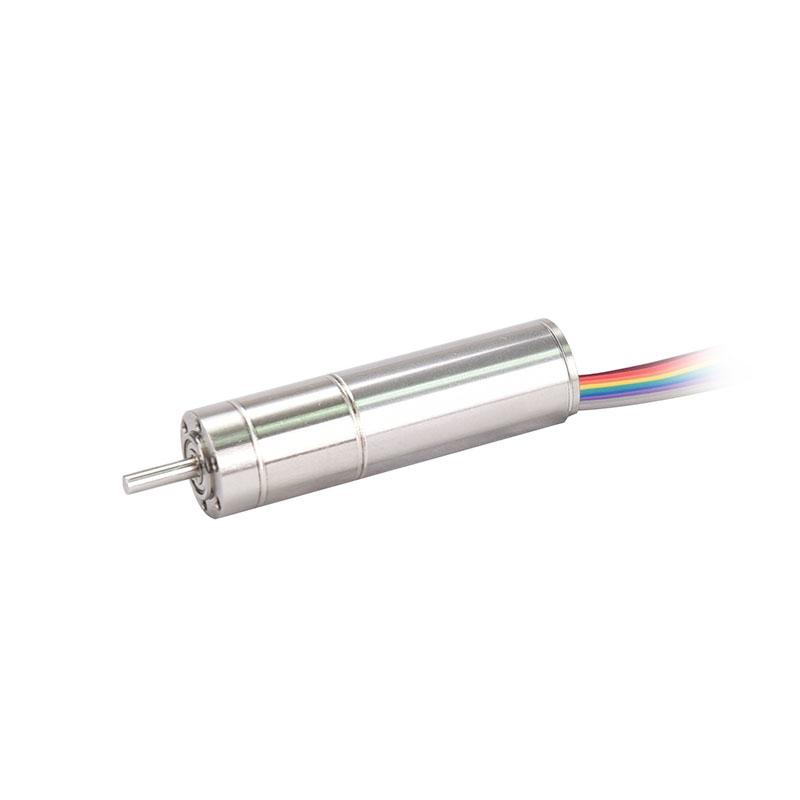

Featured product media

Quick Facts

SLU16CH036-24-G172 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.27 A Rated Current
  • 73.6382 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.420 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.168 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 88.5 RPM
No Load Current130 mA
Nominal Speed74 RPM
Nominal Torque (Max Cont. Torque)73.6382 oz-in
Nominal Current (Max Cont. Current)0.76 A
Rated Speed80 RPM
Rated Torque73.6382 oz-in
Rated Current0.27 A
Stall Torque1142.8083 oz-in
Stall Current3.81 A
Max. Efficiency64%

Motor Characteristics

Terminal Resistance6.3 ohm
Terminal Inductance0.41 mH
Speed/Torque Gradient 35.9694 RPM/oz-in
Speed Constant620 RPM/V
Mechanical Time Constant1.49 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load11.24 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit8.992 lbf
Max Speed (Mechanical)174 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 185.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)68.90 °F/W
Thermal resistance (Winding-Housing)37.94 °F/W
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio171.95
Nominal Reduction Ratio172
Number Of Stages3

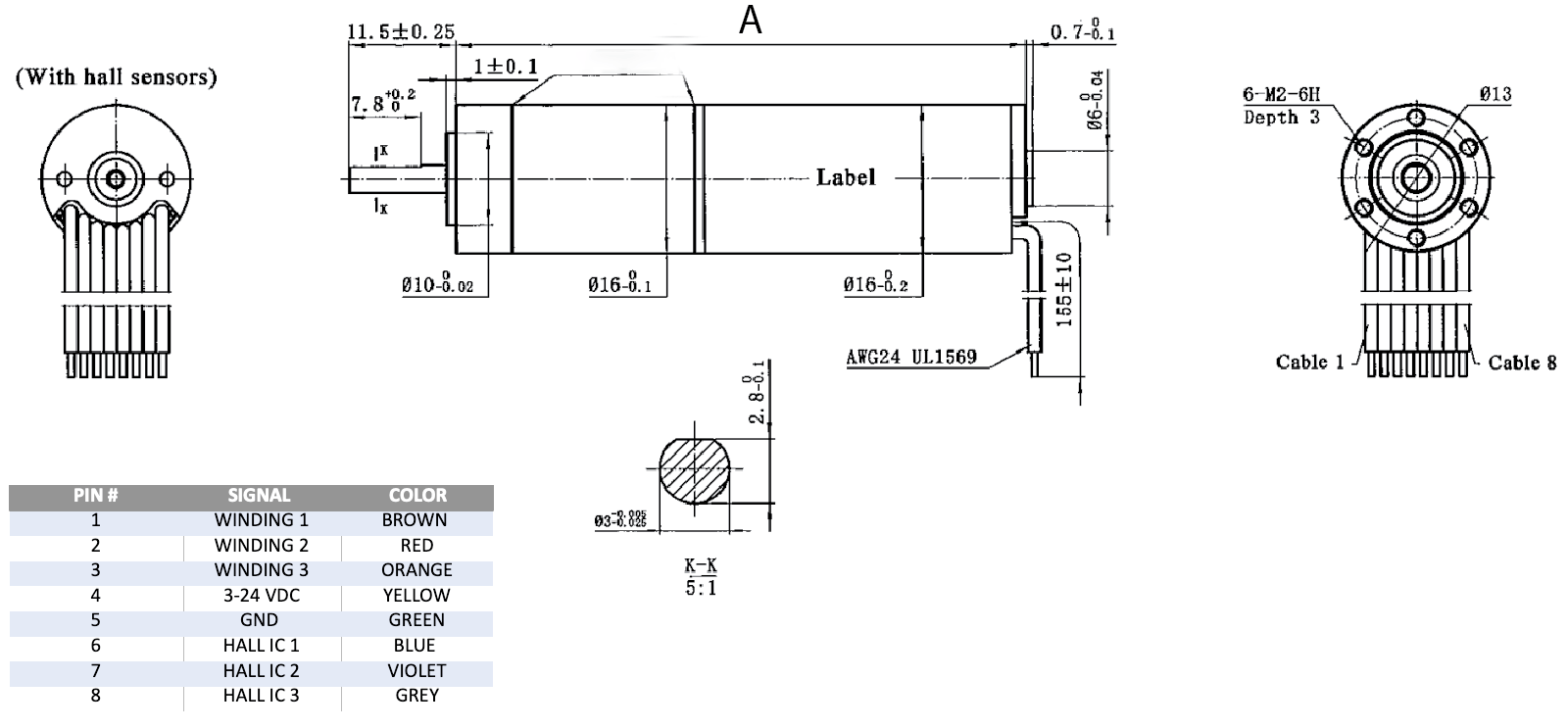

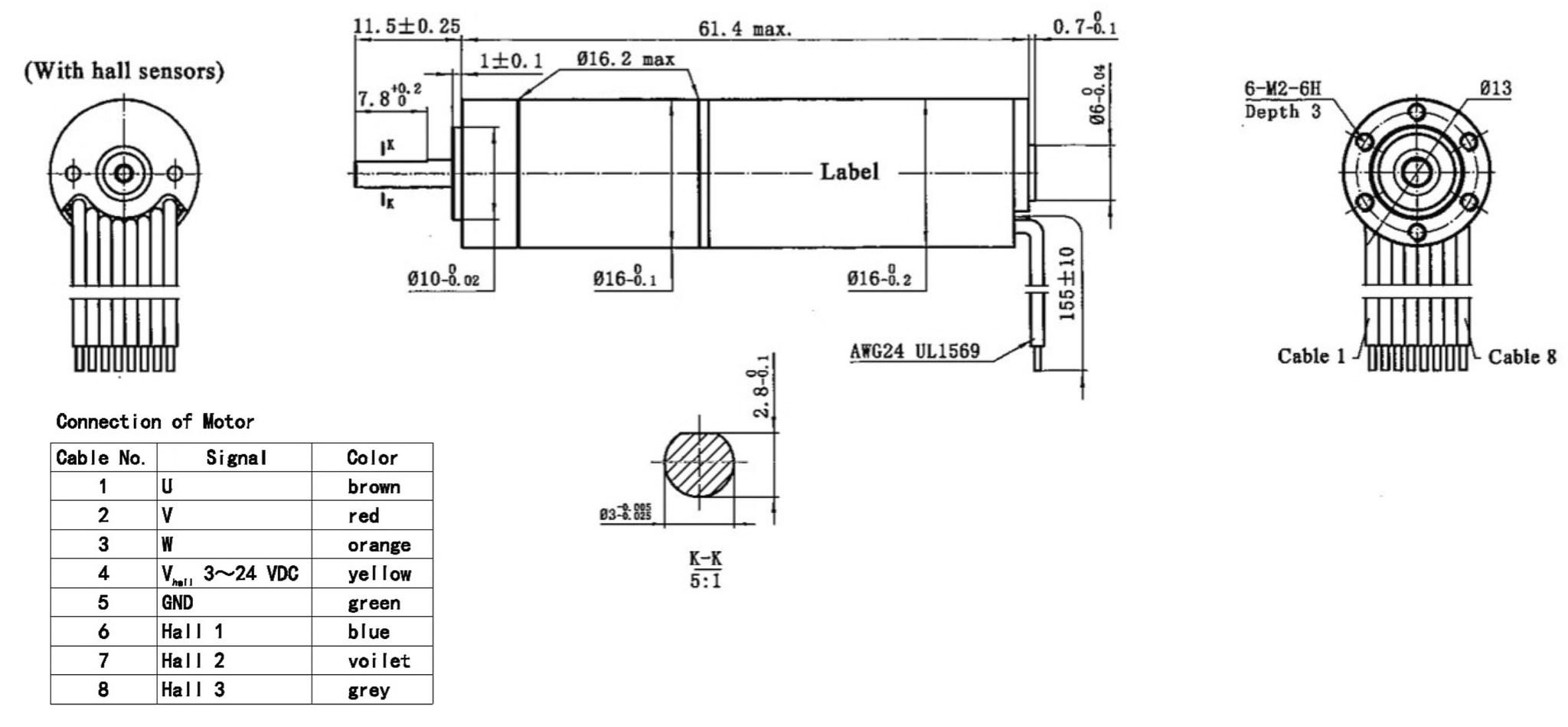

Dimensions

ModelDIM. A (length) in MAX
SLU16CH036-24-G1722.420 in

Performance Curve

SLU16CH036 Series

Downloads

SLU16CH036-24-G172 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
