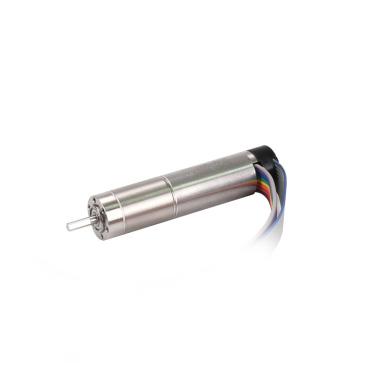

SLU16CH036 Series
SLU16CH036-24-MC16-15B
Slotless BLDC Motor

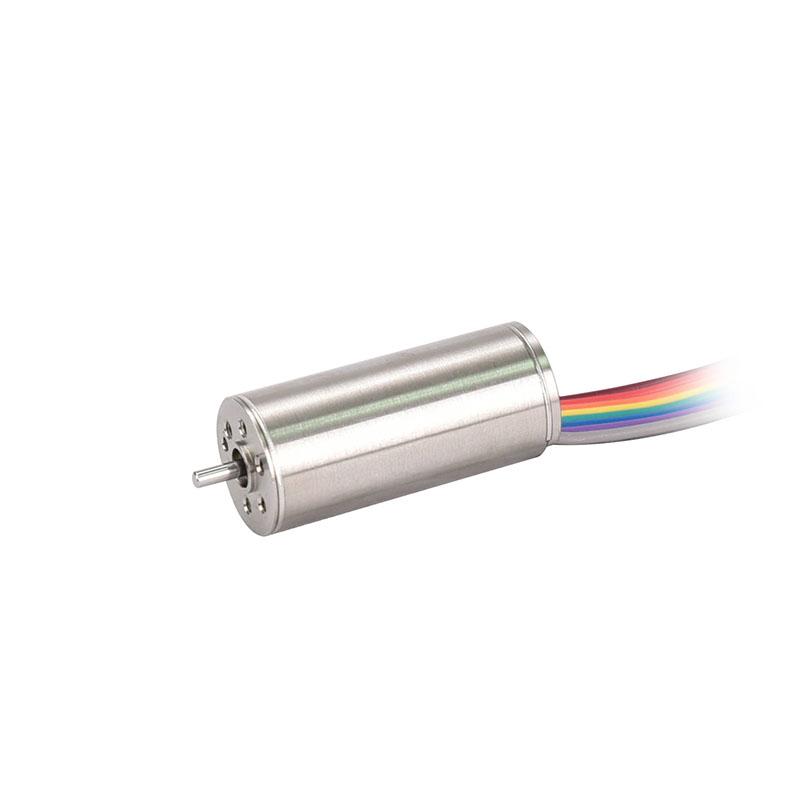

Featured product media

Quick Facts

SLU16CH036-24-MC16-15B Series Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.475 A Rated Current
  • 1.0621 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • null Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder
Weight0.119 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 15200 RPM
No Load Current115 mA
Nominal Speed12660 RPM
Nominal Torque (Max Cont. Torque)1.4161 oz-in
Nominal Current (Max Cont. Current)0.76 A
Rated Speed12350 RPM
Rated Torque1.0621 oz-in
Rated Current0.475 A
Stall Torque8.3126 oz-in
Stall Current3.81 A
Max. Efficiency80%

Motor Characteristics

Terminal Resistance6.3 ohm
Terminal Inductance0.41 mH
Speed/Torque Gradient 35.9694 RPM/oz-in
Speed Constant620 RPM/V
Mechanical Time Constant1.49 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial playPreloaded
Max. Radial Load1.349 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit4.046 lbf
Max Speed (Mechanical)30000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Insulation ClassF
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Encoder Specifications

Counts Per Turn8192
Number Of Channels3

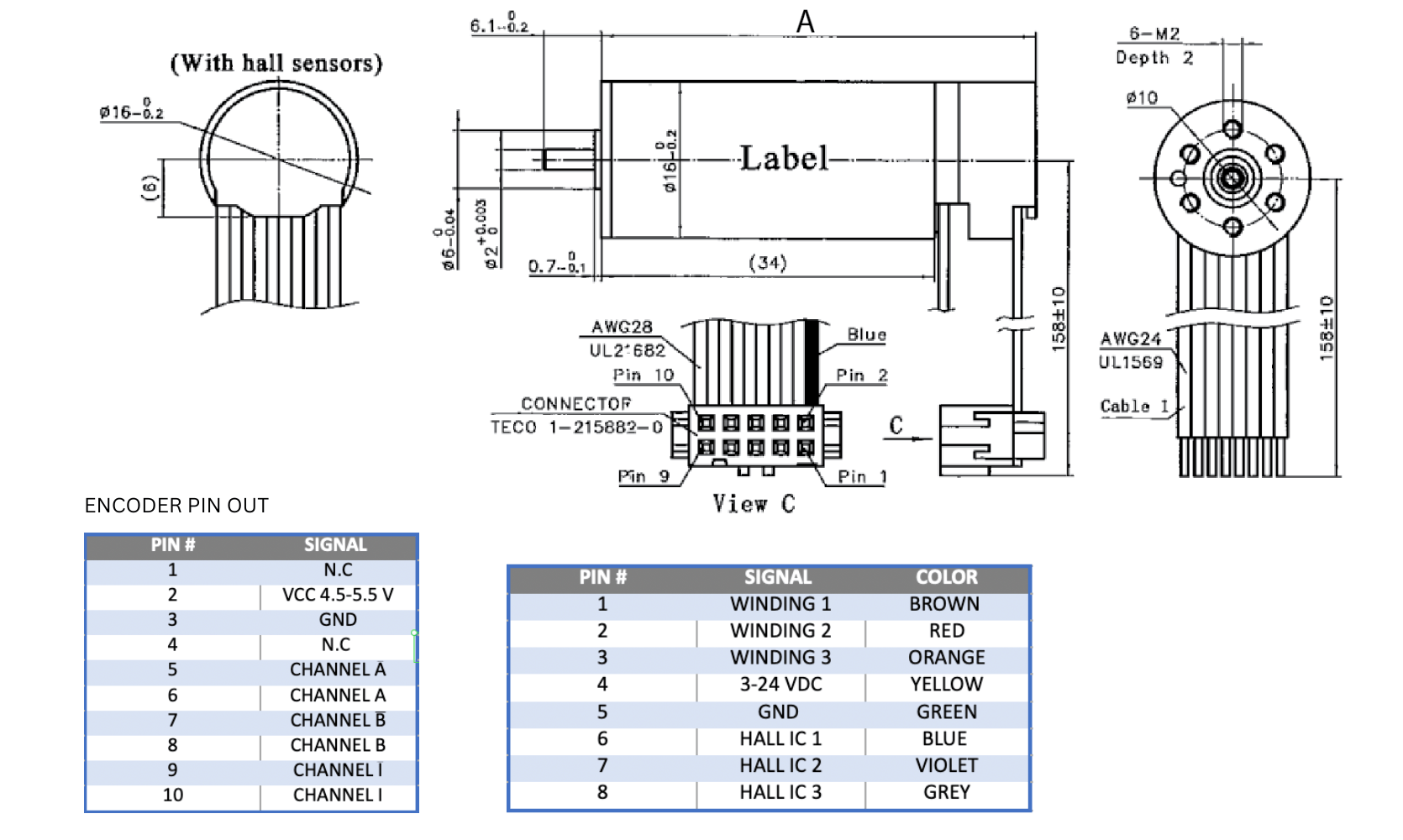

Dimensions

ModelDIM. A (length) in
SLU16CH036-24-MC16-15B

Performance Curve

SLU16CH036 Series

Downloads

SLU16CH036-24-MC16-15B Configured Datasheet (PDF)
