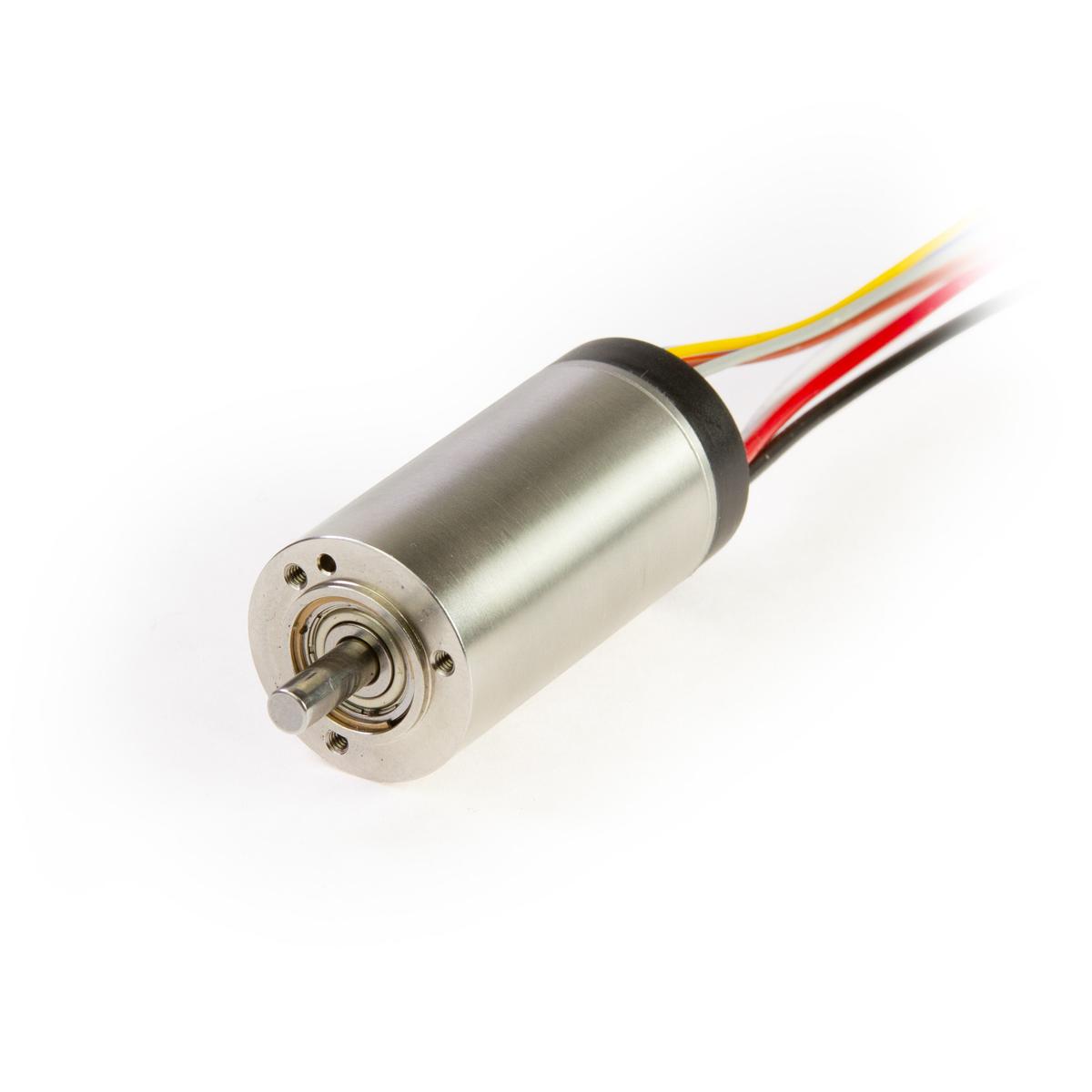

SLU22CH045 SeriesSlotless BLDC Motor
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU22CH045-24 | 0.870 in | 1.770 in | 24 VDC | 35400 RPM | 3.0022 oz-in | 42300 RPM | 827 mA | NA | 0.216 lbs | 4.19 A | Online |
| SLU22CH045-48 | 0.870 in | 1.770 in | 48 VDC | 36400 RPM | 2.4357 oz-in | 39500 RPM | 550 mA | NA | 0.216 lbs | 1.99 A | Online |

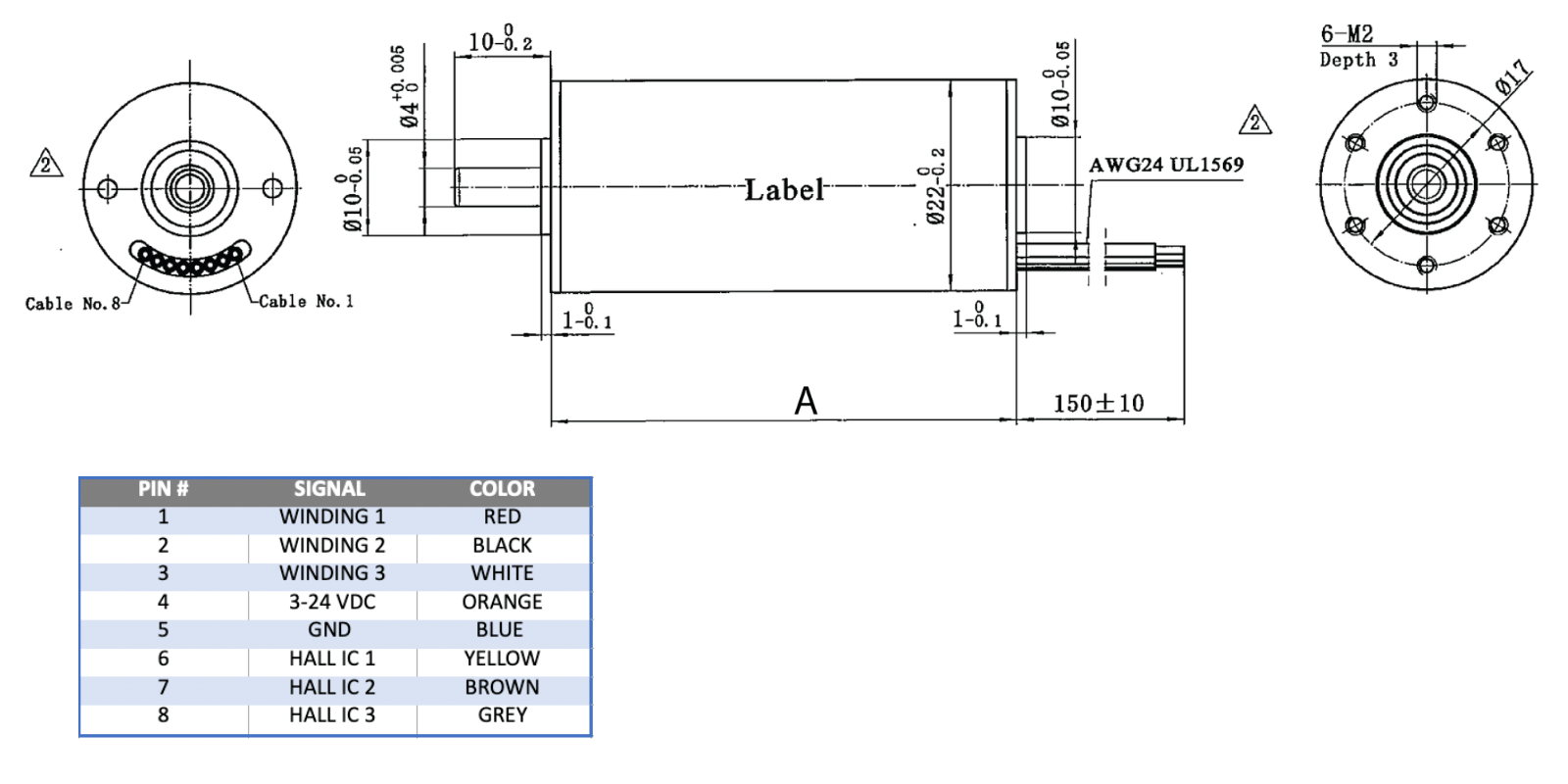

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU22CH045-24 | 1.770 in |
| SLU22CH045-48 | 1.770 in |
