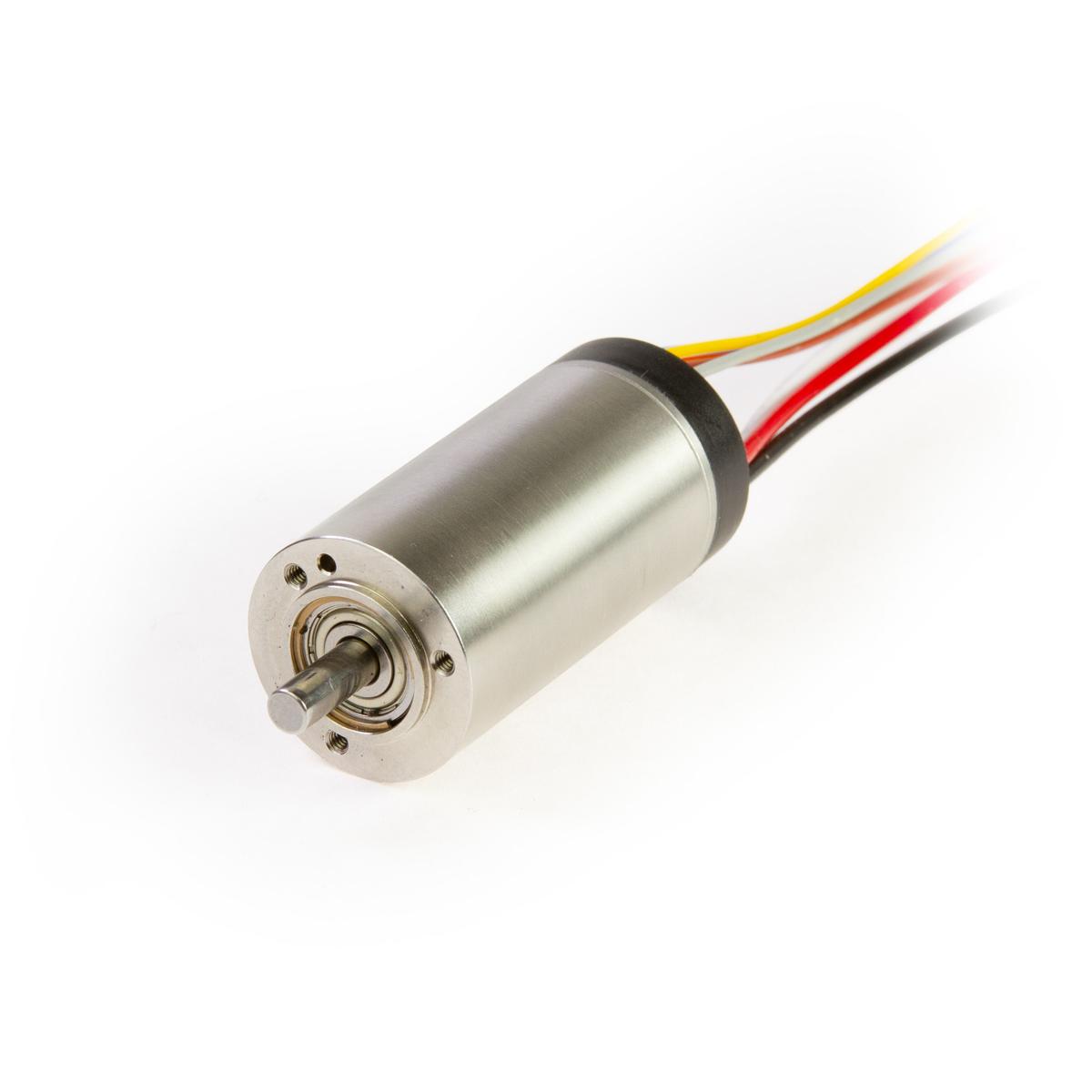

SLU22CH045 SeriesSLU22CH045-24Slotless BLDC Motor
Specifications:
- 0.870 in Frame Size
- 4.19 A Rated Current
- 3.0022 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 1.770 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$200.00
Inventory:
0 Available
Part Number:
SLU22CH045-24
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.870 in |
| Motor Type | Motor Only |
| Weight | 0.216 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 42300 RPM |
| No Load Current | 827 mA |
| Nominal Speed | 40430 RPM |
| Nominal Torque (Max Cont. Torque) | 2.6057 oz-in |
| Nominal Current (Max Cont. Current) | 4.19 A |
| Rated Speed | 35400 RPM |
| Rated Torque | 3.0022 oz-in |
| Rated Current | 4.19 A |
| Stall Torque | 58.2875 oz-in |
| Stall Current | 75 A |
| Max. Efficiency | 91% |
Motor Characteristics
| Terminal Resistance | 0.32 ohm |
| Terminal Inductance | 0.035 mH |
| Speed/Torque Gradient | 12.7451 RPM/oz-in |
| Speed Constant | 1740 RPM/V |
| Mechanical Time Constant | 2.34 ms |
| Rotor Inertia | 0.012 oz-in² |
Motor Mechanical Data
| Axial play | 0.009 in |
| Radial play | Preloaded |
| Max. Radial Load | 3.597 lbf |
| Max Force For Press Fit | 24.728 lbf |
| Max Speed (Mechanical) | 50000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 59.00 °F/W |
| Thermal resistance (Winding-Housing) | 33.08 °F/W |
| Thermal time constant motor | 450 s |
| Thermal time constant winding | 1.83 s |

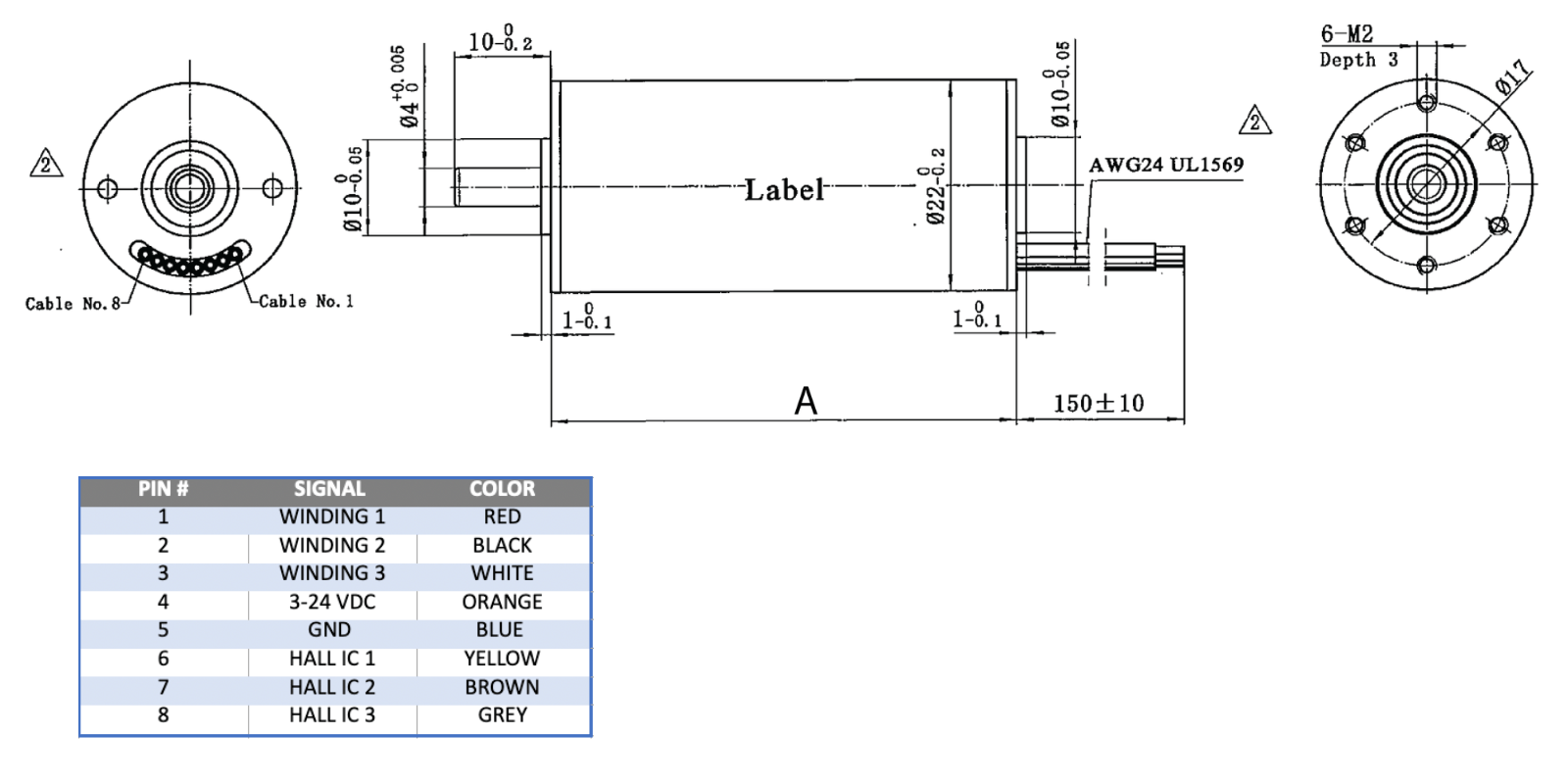

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU22CH045-24 | 1.770 in |
Performance Curve
SLU22CH045 Series
