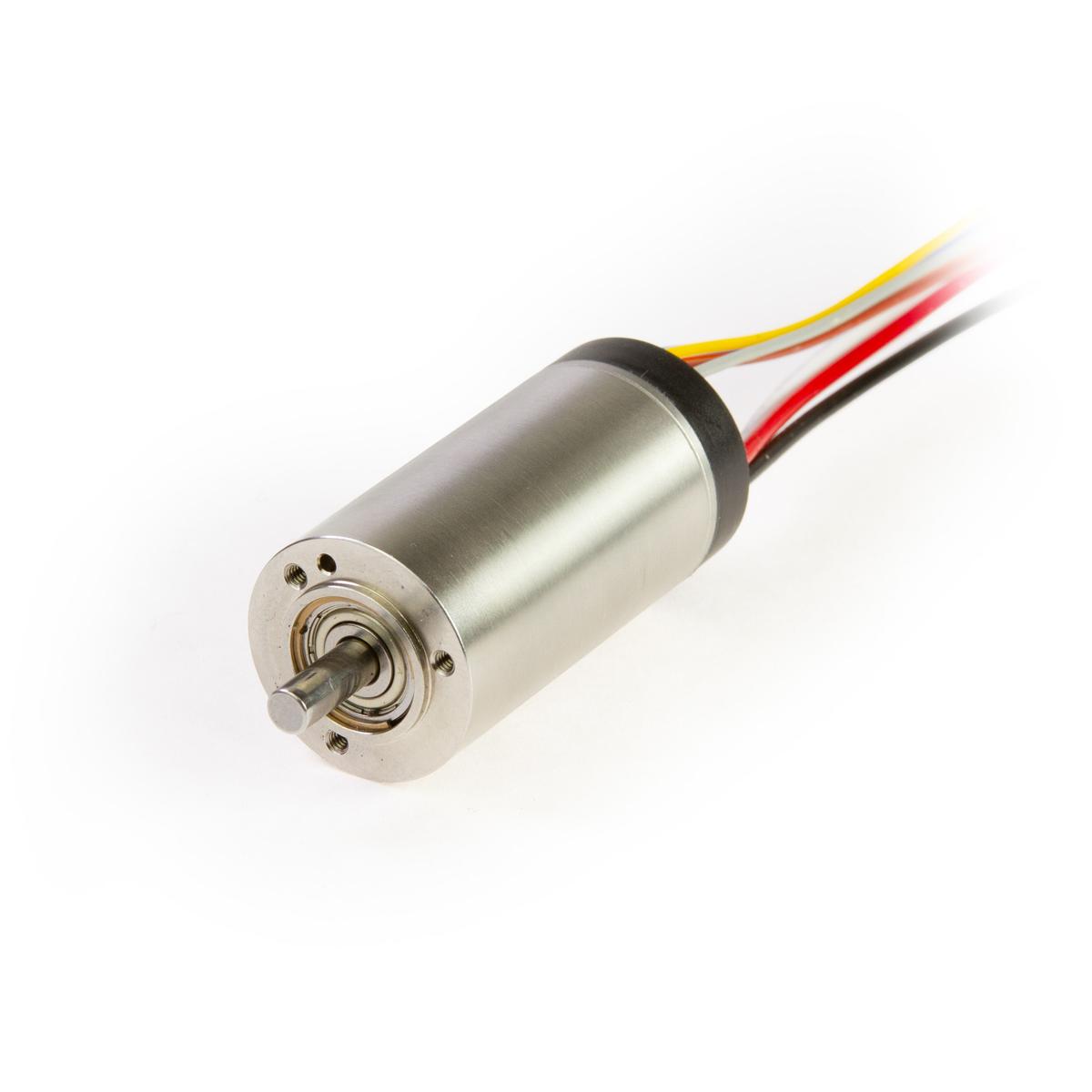

SLU22CH048 SeriesSlotless BLDC Motor
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU22CH048-24 | 0.870 in | 1.890 in | 24 VDC | 15835 RPM | 3.0588 oz-in | 19200 RPM | 326 mA | NA | 0.243 lbs | 1.67 A | Online |
| SLU22CH048-24-G111-M16-1024 | 0.870 in | 24 VDC | 85.2 RPM | 226.5791 oz-in | 107.9 RPM | 285 mA | 111:1 | 0.41 lbs | 1.44 A | Quote | |
| SLU22CH048-24-G16-M16-1024 | 0.870 in | 3.420 in | 24 VDC | 575 RPM | 41.0675 oz-in | 770.1 RPM | 285 mA | 16:1 | 0.407 lbs | 1.67 A | Online |
| SLU22CH048-24-G35-M16-1024 | 0.870 in | 3.420 in | 24 VDC | 245 RPM | 86.3833 oz-in | 342 RPM | 260 mA | 35:1 | 0.41 lbs | 1.67 A | Online |
| SLU22CH048-24-G4-M16-1024 | 0.870 in | 3.190 in | 24 VDC | 2271 RPM | 11.1873 oz-in | 3040 RPM | 285 mA | 4:1 | 0.38 lbs | 1.67 A | Online |
| SLU22CH048-24-G546-M16-1024 | 0.870 in | 3.890 in | 24 VDC | 20.7 RPM | 283.2239 oz-in | 22 RPM | 285 mA | 546:1 | 0.462 lbs | 0.56 A | Online |
| SLU22CH048-24-G62-M16-1024 | 0.870 in | 3.650 in | 24 VDC | 152 RPM | 137.3636 oz-in | 195.1 RPM | 285 mA | 62:1 | 0.434 lbs | 1.58 A | Online |
| SLU22CH048-24-M16-1024 | 0.870 in | 2.360 in | 24 VDC | 15835 RPM | 3.0588 oz-in | 19200 RPM | 326 mA | NA | 0.273 lbs | 1.67 A | Online |
| SLU22CH048-24-MC16-16B | 0.870 in | 2.360 in | 24 VDC | 15800 RPM | 3.0588 oz-in | 19200 RPM | 326 mA | NA | 0.28 lbs | 1.67 A | Online |
| SLU22CH048-48 | 0.870 in | 1.890 in | 48 VDC | 17720 RPM | 2.9257 oz-in | 19860 RPM | 254 mA | NA | 0 lbs | 0.86 A | Online |

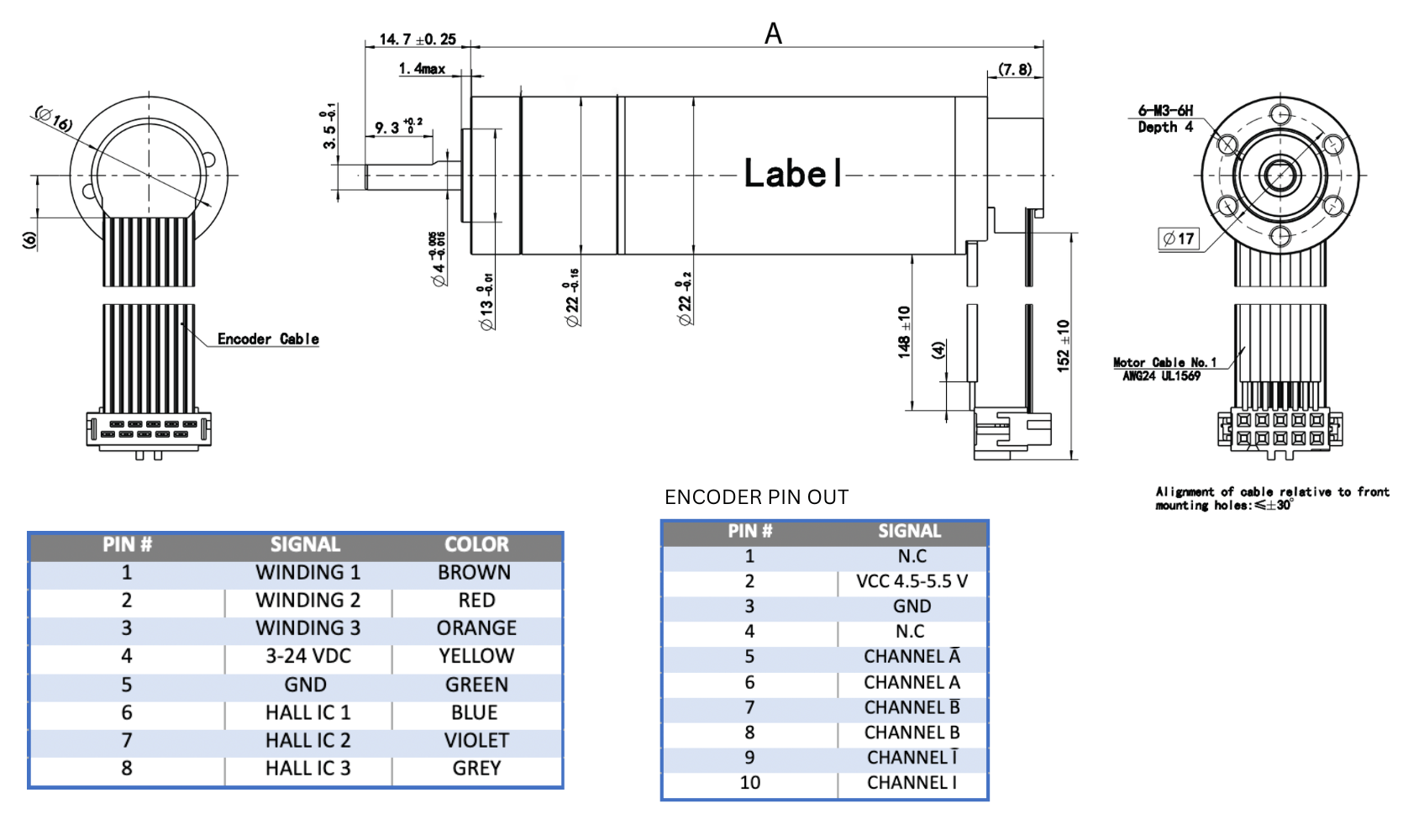

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU22CH048-24 | 1.890 in |
| SLU22CH048-24-G111-M16-1024 | |
| SLU22CH048-24-G16-M16-1024 | 3.420 in |
| SLU22CH048-24-G35-M16-1024 | 3.420 in |
| SLU22CH048-24-G4-M16-1024 | 3.190 in |
| SLU22CH048-24-G546-M16-1024 | 3.890 in |
| SLU22CH048-24-G62-M16-1024 | 3.650 in |
| SLU22CH048-24-M16-1024 | 2.360 in |
| SLU22CH048-24-MC16-16B | 2.360 in |
| SLU22CH048-48 | 1.890 in |
