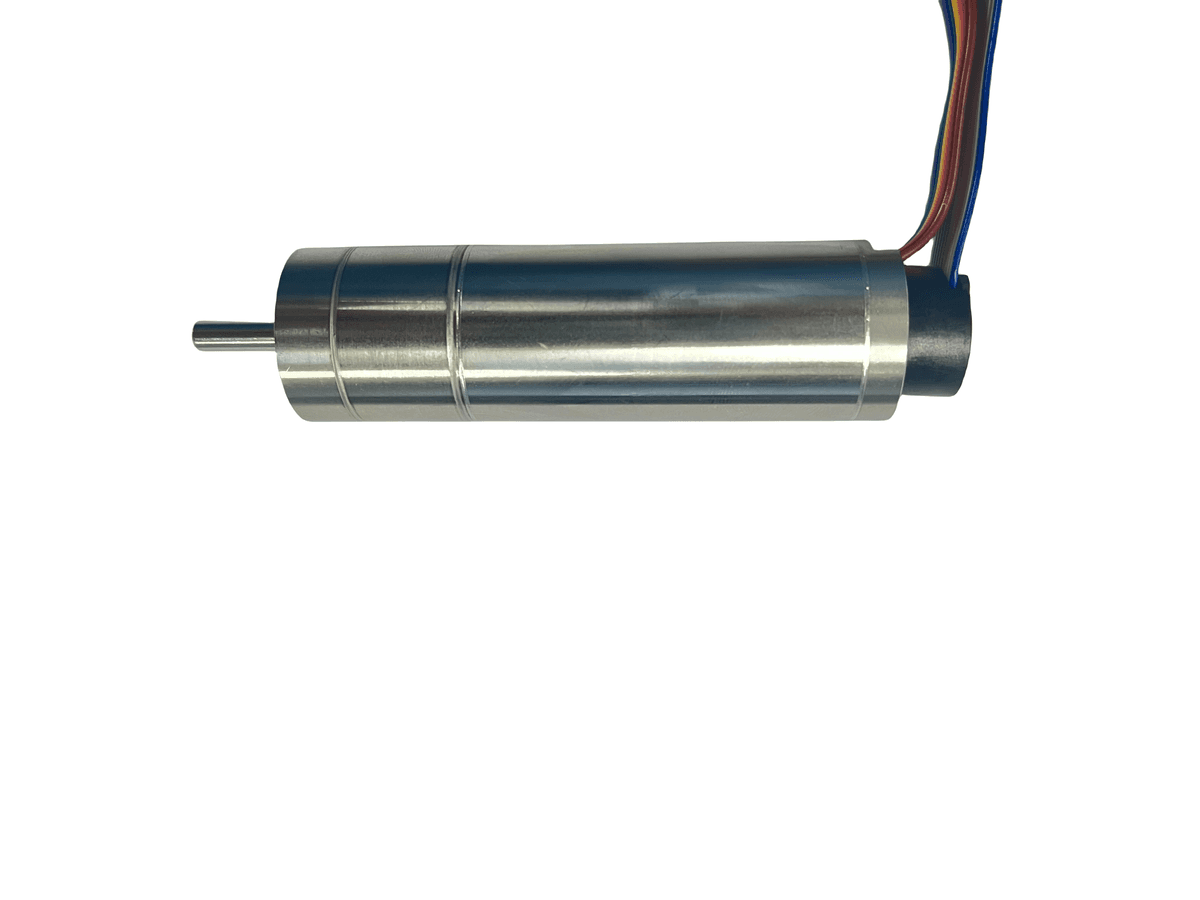

SLU22CH048 SeriesSLU22CH048-24-G62-M16-1024Slotless BLDC Motor
Quick Facts
SLU22CH048-24-G62-M16-1024 Slotless BLDC Motors
SLU22CH048-24-G62-M16-1024 Slotless BLDC Motors
Specifications:
- 0.870 in Frame Size
- 1.58 A Rated Current
- 137.3636 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 3.650 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.870 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.434 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 195.1 RPM |
| No Load Current | 285 mA |
| Nominal Speed | 174 RPM |
| Nominal Torque (Max Cont. Torque) | 226.5791 oz-in |
| Nominal Current (Max Cont. Current) | 2.94 A |
| Rated Speed | 152 RPM |
| Rated Torque | 137.3636 oz-in |
| Rated Current | 1.58 A |
| Stall Torque | 1257.5139 oz-in |
| Stall Current | 15.96 A |
| Max. Efficiency | 61.6% |
Motor Characteristics
| Terminal Resistance | 0.94 ohm |
| Terminal Inductance | 0.104 mH |
| Speed/Torque Gradient | 8.2135 RPM/oz-in |
| Speed Constant | 770 RPM/V |
| Mechanical Time Constant | 2.36 ms |
| Rotor Inertia | 0.02 oz-in² |
Motor Mechanical Data
| Radial play | 0.004 |
| Max. Radial Load | 13.488 lbf |
| Distance From Flange For Radial Load | 10 in |
| Max Force For Press Fit | 22.48 lbf |
| Max Speed (Mechanical) | 30000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 48.20 °F/W |
| Thermal resistance (Winding-Housing) | 35.15 °F/W |
| Thermal time constant motor | 510 s |
| Thermal time constant winding | 1.59 s |
Gearhead Specifications
| Type Of Gearhead | Planetary Gearhead |
| Gearhead Reduction Ratio | 62 |
| Nominal Reduction Ratio | 61.55 |
| Absolute Reduction Ratio | 421875/6859 |
| Number Of Stages | 3 |
Encoder Specifications
| Counts Per Turn | 1024 |
| Number Of Channels | 3 |

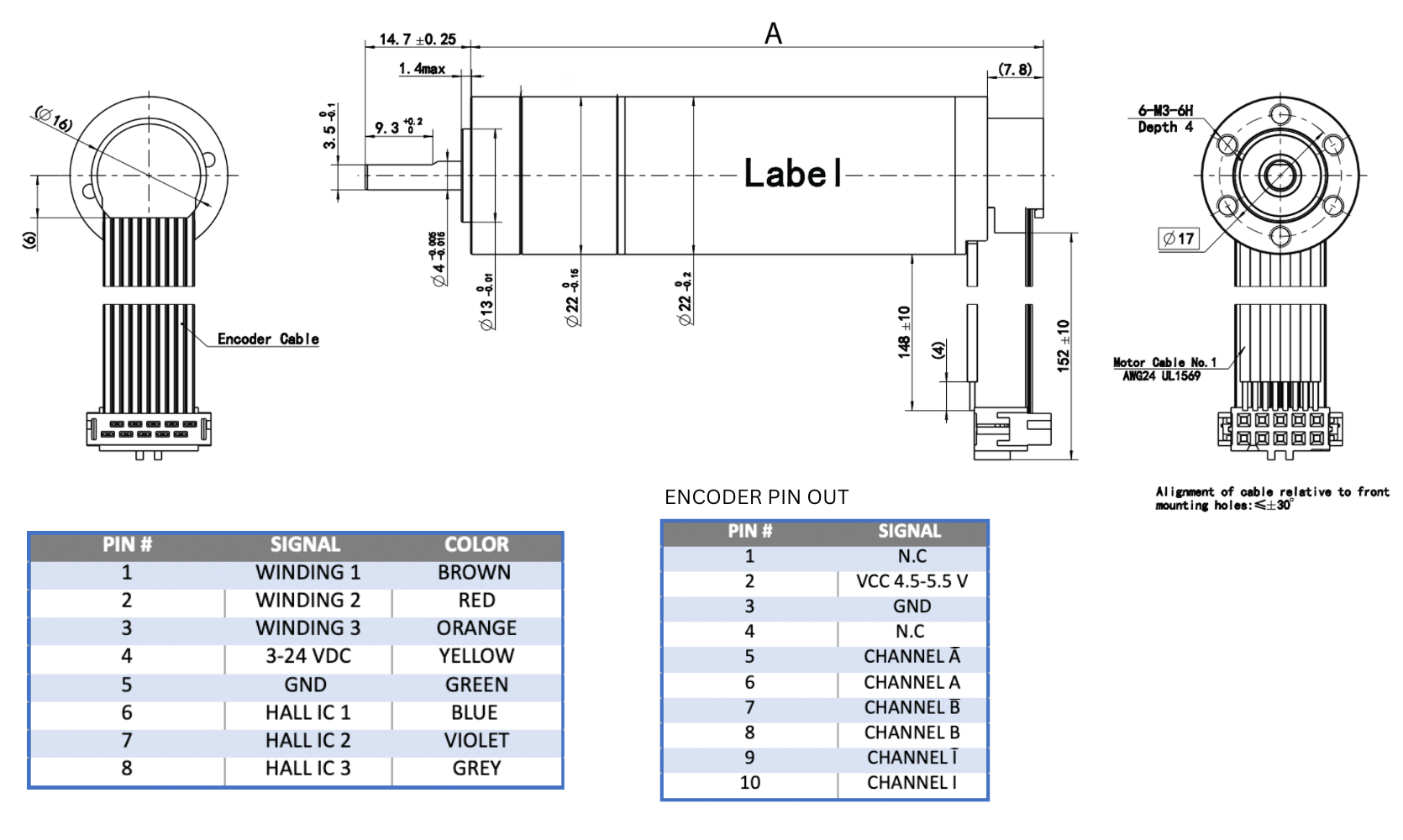

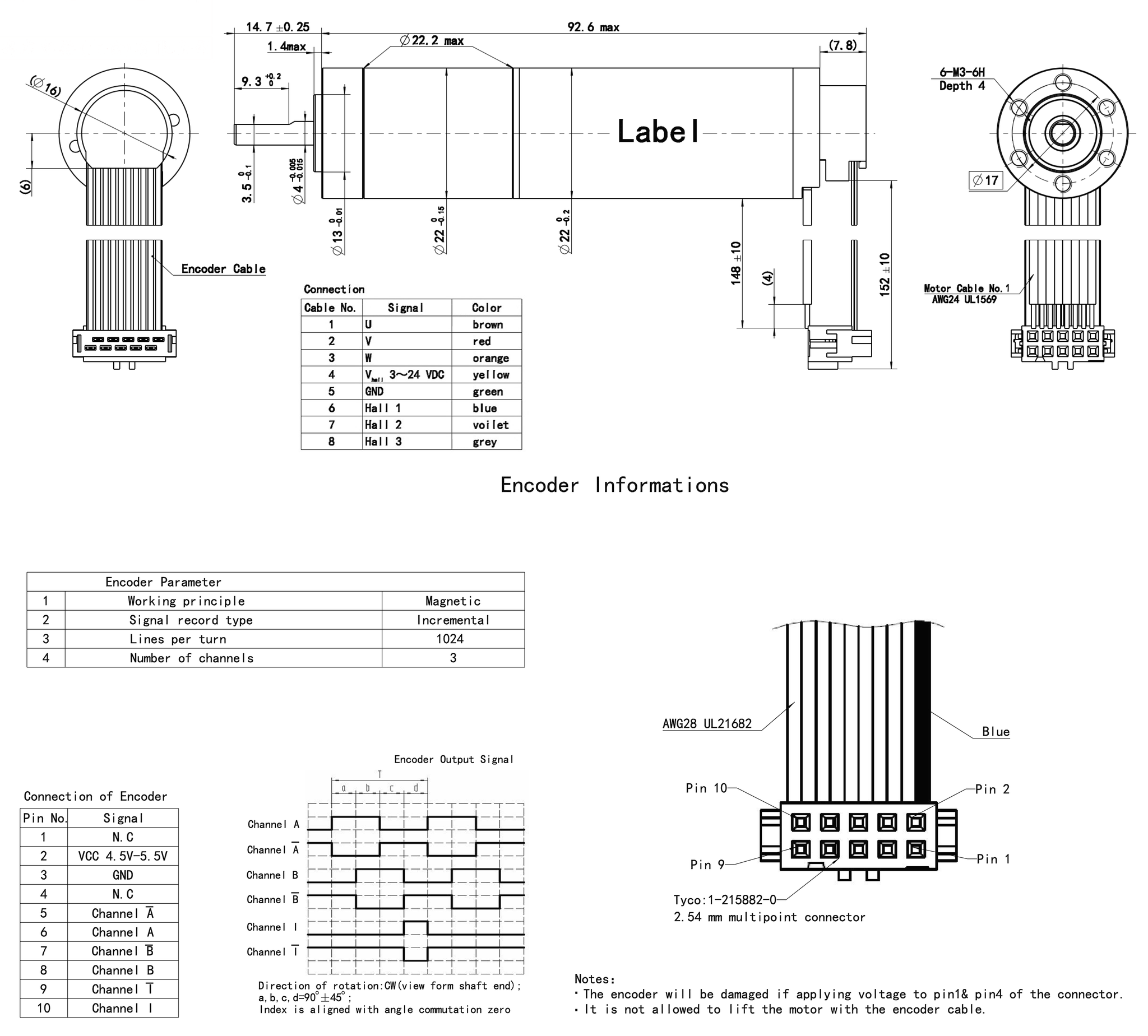

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU22CH048-24-G62-M16-1024 | 3.650 in |
Performance Curve
SLU22CH048 Series
Downloads
SLU22CH048-24-G62-M16-1024 Configured Datasheet (PDF)
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
