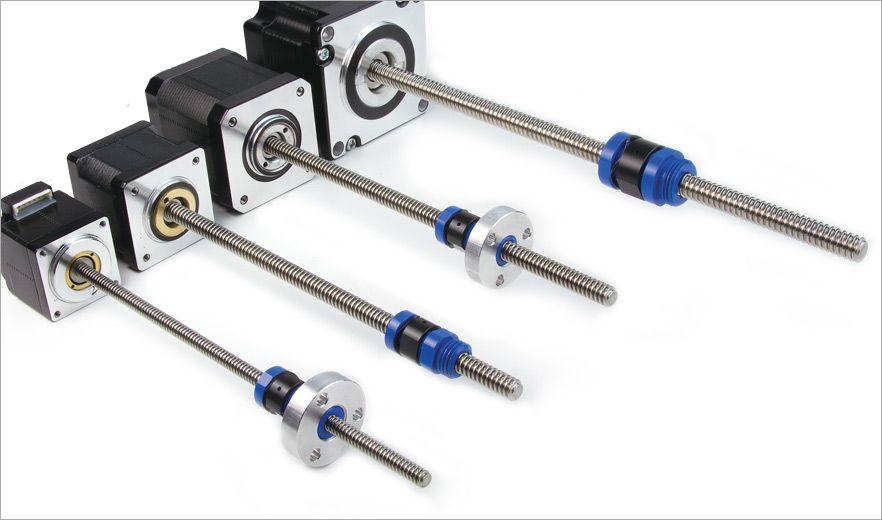

external nut actuators

Frame Size

NEMA 08 (0.800 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.07 in

Screw Lead

0.024 in

Frame Size

NEMA 11 (1.110 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.26 to 2.05 in

Screw Lead

0.118 to 0.5 in

Frame Size

NEMA 14 (1.390 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.07 to 1.38 in

Screw Lead

0.118 to 0.5 in

Frame Size

NEMA 17 (1.670 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.35 to 1.9 in

Screw Lead

0.157 to 0.413 in

Frame Size

NEMA 23 (2.220 in)

Step Angle Stepper Motor

1.8°

Motor Length

2.24 to 3.11 in

Screw Lead

0.079 to 0.413 in
