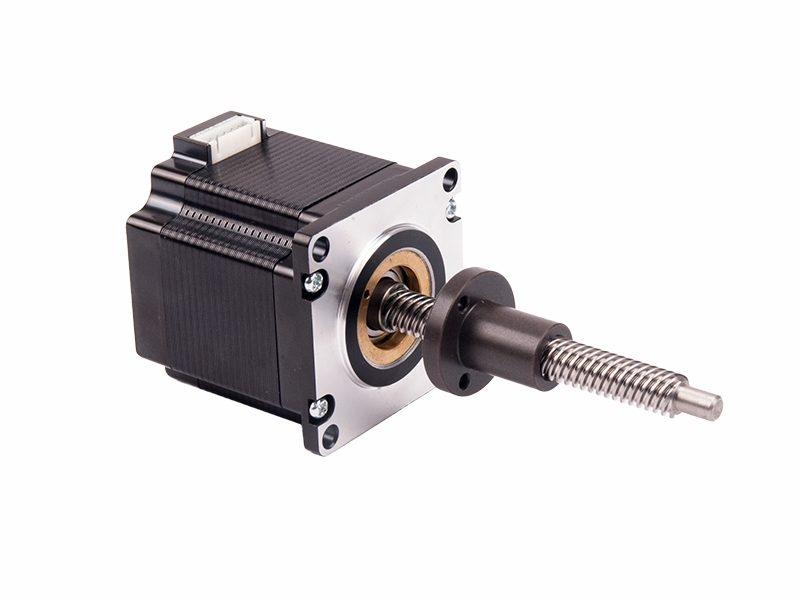

LE23 Series
Features and Benefits:
- External Nut Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 23 (2.220 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 2.24 to 3.11 in Motor Length
- 0.079 to 0.413 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LE23S8220-T10105-300N-AR | 2.220 in | 2.240 in | 2.2 AMP | 0.413 in | 0.390 in | 0.00206 in | Online |
| LE23S8220-T1202-400N-AR | 2.220 in | 2.240 in | 2.2 AMP | 0.079 in | 0.470 in | 0.0004 in | Online |
| LE23SA150-T10105-300N-AR | 2.220 in | 3.110 in | 1.5 AMP | 0.413 in | 0.390 in | 0.00206 in | Online |
| LE23SA150-T1202-400N-AR | 2.220 in | 3.110 in | 1.5 AMP | 0.079 in | 0.470 in | 0.0004 in | Online |
| LE23SA150-T1206-400N-AR | 2.220 in | 3.110 in | 1.5 AMP | 0.236 in | 0.470 in | 0.00118 in | Online |
| LE23SA300-T10105-300N-AR | 2.220 in | 3.110 in | 3 AMP | 0.413 in | 0.390 in | 0.00206 in | Online |
| LE23SA300-T1202-400N-AR | 2.220 in | 3.110 in | 3 AMP | 0.079 in | 0.470 in | 0.0004 in | Online |
| LE23SA300-T1206-400N-AR | 2.220 in | 3.110 in | 3 AMP | 0.236 in | 0.470 in | 0.00118 in | Online |
Performance Chart
- LE23S8220-T10105-300N-AR
- LE23S8220-T1202-400N-AR
- LE23SA150-T10105-300N-AR
- LE23SA150-T1202-400N-AR
- LE23SA150-T1206-400N-AR
- LE23SA300-T10105-300N-AR
- LE23SA300-T1202-400N-AR
- LE23SA300-T1206-400N-AR

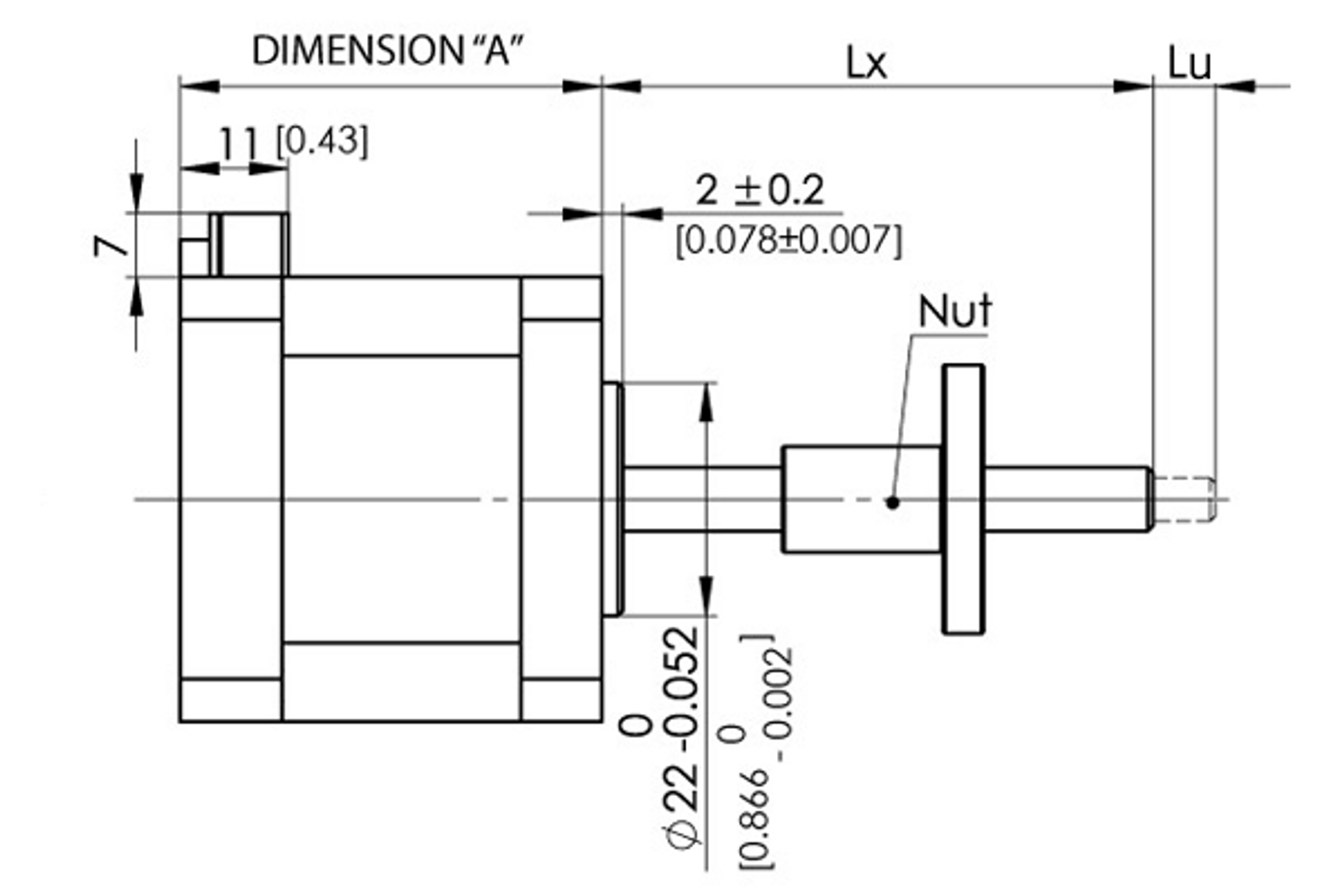

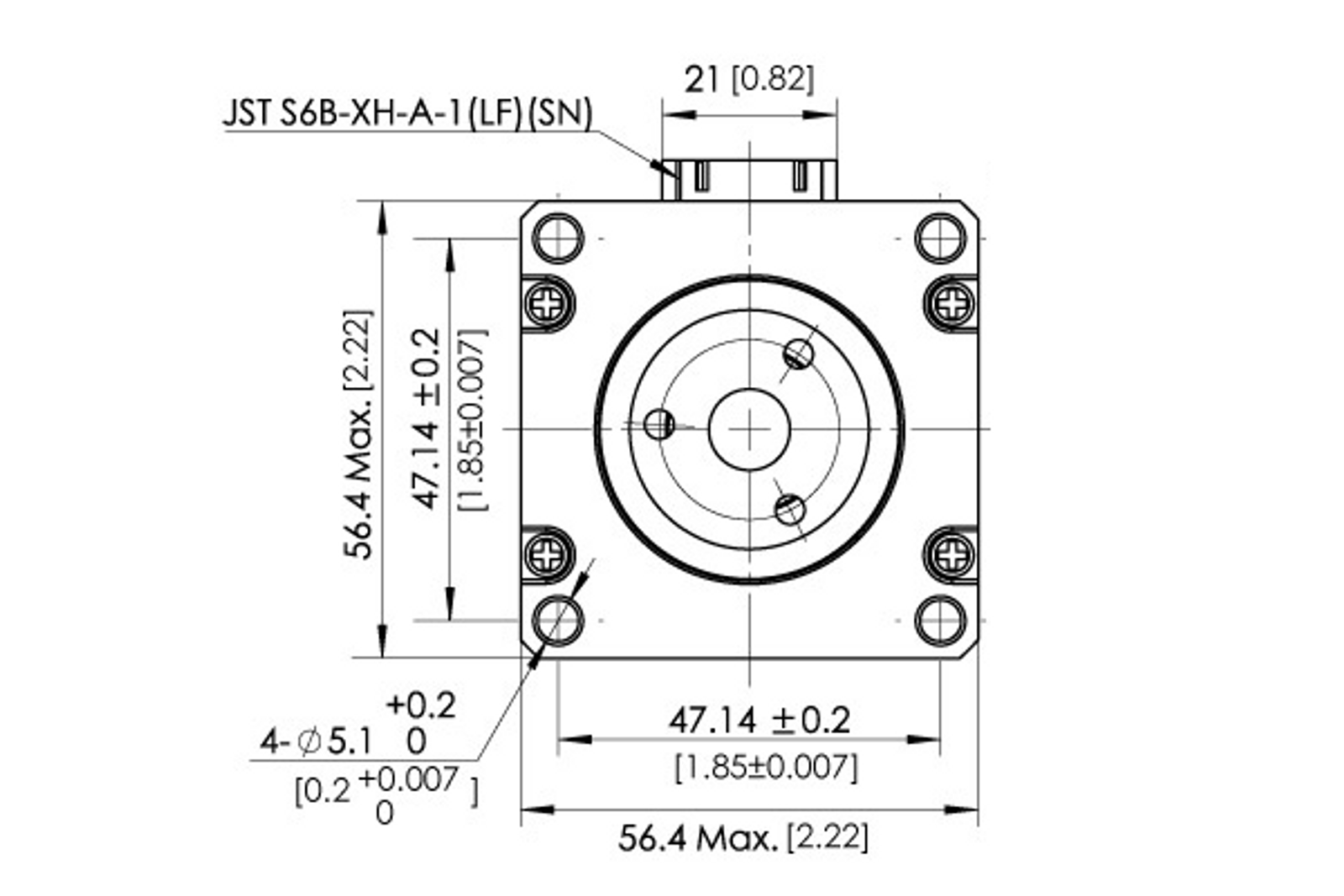

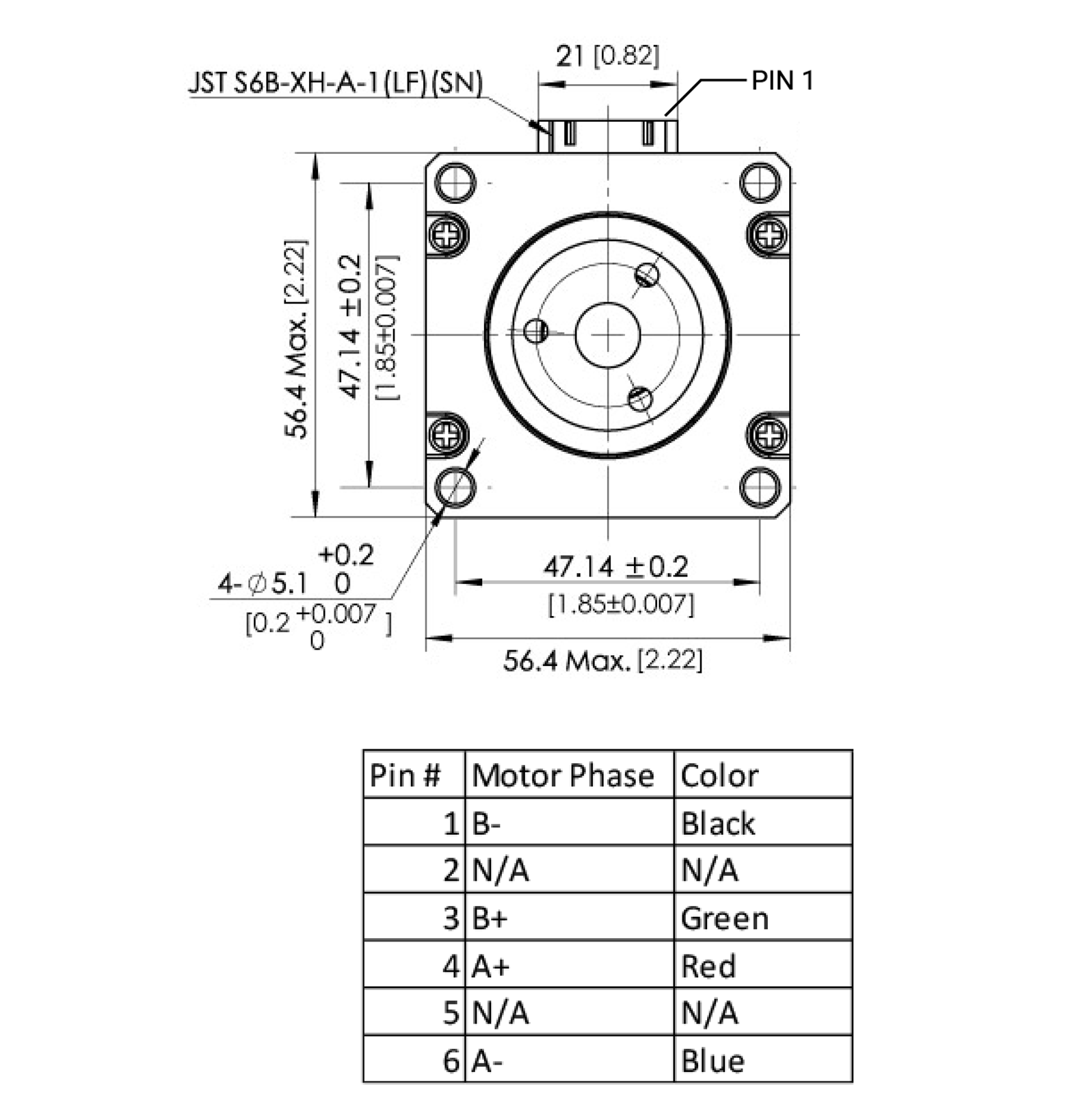

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LE23S8220-T10105-300N-AR | 2.240 in |
| LE23S8220-T1202-400N-AR | 2.240 in |
| LE23SA150-T10105-300N-AR | 3.110 in |
| LE23SA150-T1202-400N-AR | 3.110 in |
| LE23SA150-T1206-400N-AR | 3.110 in |
| LE23SA300-T10105-300N-AR | 3.110 in |
| LE23SA300-T1202-400N-AR | 3.110 in |
| LE23SA300-T1206-400N-AR | 3.110 in |
