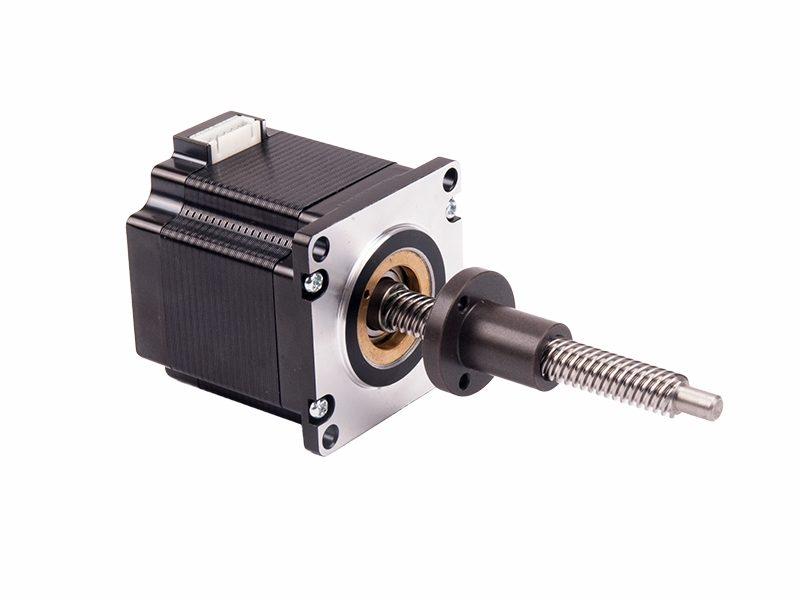

LE23 SERIESLE23SA150-T10105-300N-AR
Motor Configuration:
Screw
Ø: 0.390 in Lead: 0.413 in (T10105)
Screw Length
Screw End Finish
No End Finish
Nut
Circular Flange (AR)
Unit Price:
$190.85
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LE23SA150-T10105-300N-AR
Looking For Higher Volume?
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
| Motor Frame Size | 2.220 in |
| Motor Length | 3.110 in |
| Rated Current | 1.5 AMP |
| Motor Step Angle | 1.8° |
| Screw Lead | 0.413 in |
| Screw Diameter | 0.390 in |
| Screw Length | 11.810 in |
| Linear Travel Per Step | 0 in |
| Resistance | 4.3 ohm |
| Rotor Inertia | 2 oz-in² |
| Winding | bipolar |
| Weight | 0.5 lbs |
Motor Dimensions
| Dimension A | 3.110 in |
| Dimension L (Lx + Lu) | 11.810 in (±0.060 in) |
Performance Chart
LE23SA150 with T10105 screw
24 VDC, 1.5 AMP/Phase
Nut Dimension
| Title | AR |
| Flange Type | Circular Flange |
| Nut Style | Free Running |
Leadscrew End Finish (Front)
No End Finish
| Dimensions | N/A |
Downloads
LE23SA150-T10105-300N-AR Configured Datasheet (PDF)
