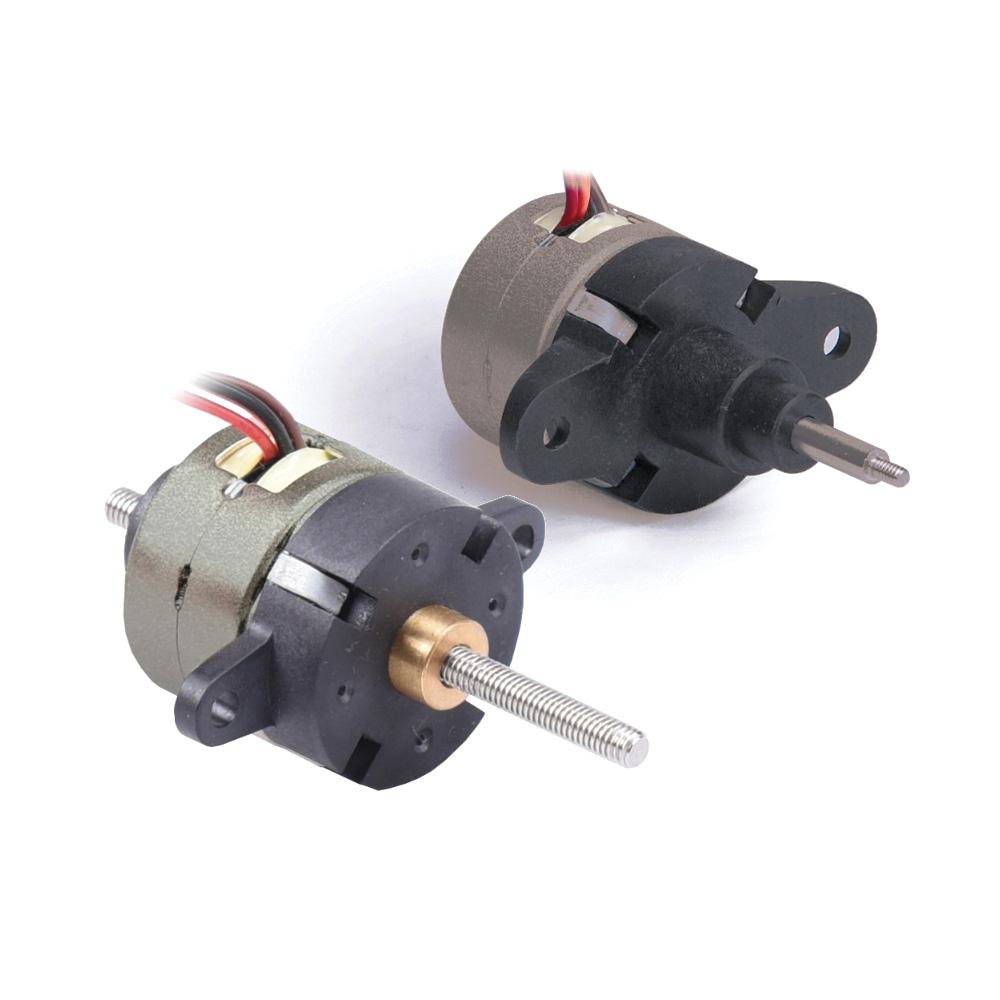

LPM25 Series
Specifications:
- 0.980 in Frame Size
- 15° Step Angle
- 12 to 24 Rated Voltage
- 0.35 to 0.5 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Leadscrew Lead | Step Travel | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LNPM25M-150-050 | 0.980 in | 1.140 in | 15° | 24 VDC | 0.5 AMP/Phase | 0.048 in | 0.002 in | 0.099 lbs | Online |
| LCPM25M-150-035 | 0.980 in | 1.140 in | 15° | 12 VDC | 0.35 AMP/Phase | 0.024 in | 0.001 in | 0.099 lbs | Online |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LNPM25M-150-050 | 1.140 in |
| LCPM25M-150-035 | 1.140 in |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.006 in @ 7.868 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -40 °F to 185.00 °F |
| Humidity Range | 20 - 90% RH |
