Configured Part Number
LCPM25M-150-035
Configure This Motor
Unit Price:
$41.40
Inventory:
10 Available in 2 Business Days
Ships:
2 Business Days
QTY
Looking For Higher Volume?
LPM25 SeriesLCPM25M-150-035
Quick Facts

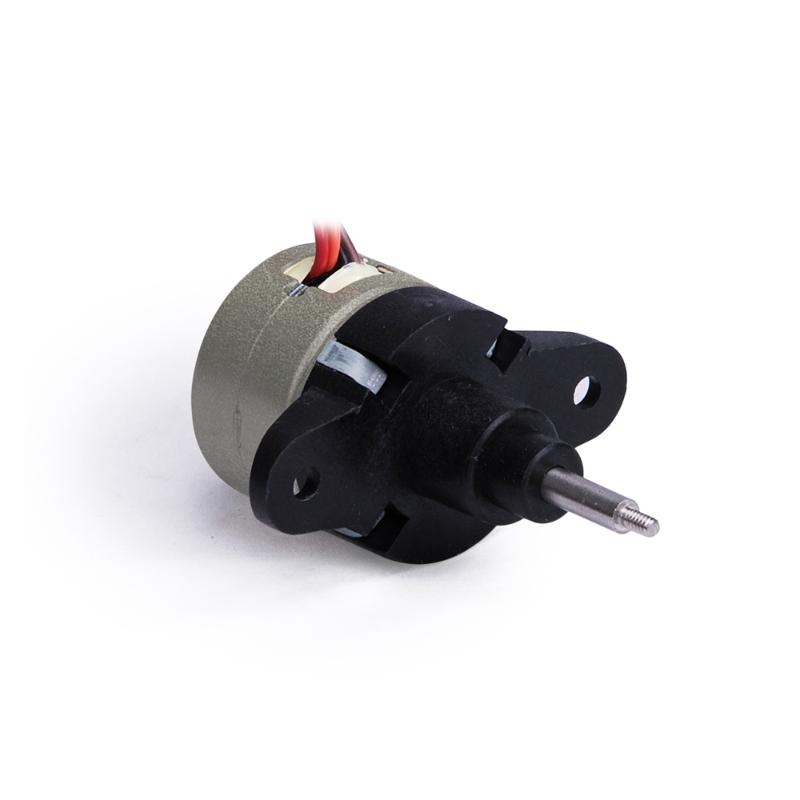

LCPM25M-150-035 Series PM Linear Stepper Motors
LCPM25M-150-035 Series PM Linear Stepper Motors
Specifications:
- 0.980 in Frame Size
- 15° Step Angle
- 12 Rated Voltage
- 0.35 A/Phase
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LCPM25M-150-035 | 1.140 in |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Part Number | LCPM25M-150-035 |
| Style | LC |
| Step Angle | 15° |
| Frame Size | 0.980 in |
| Body Length | 1.140 in |
| Rated Current | 0.35 AMP |
| Rated Voltage | 12 VDC |
| Leadscrew Lead | 0.024 in |
| Step Travel | 0.001 in |
| Holding Force | 8.992 lbf |
| Resistance | 14 ohm |
| Connection | Bipolar |
| Phase | 2 |
| Weight | 0.099 lbs |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.006 in @ 7.868 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -40 °F to 185.00 °F |
| Humidity Range | 20 - 90% RH |
LPM25 Series
Downloads
LCPM25M-150-035 Configured Datasheet (PDF)
