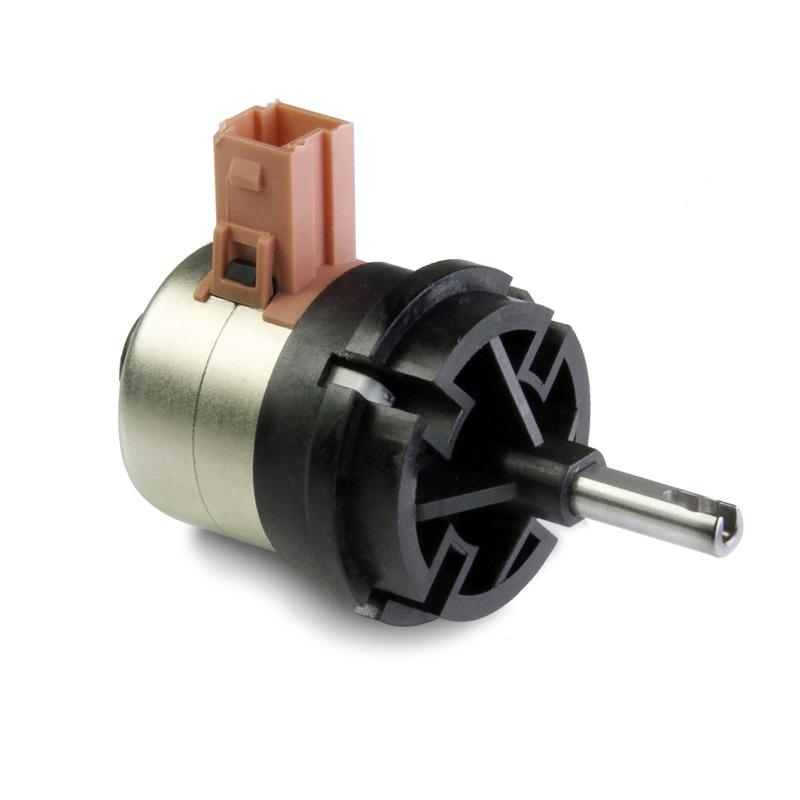

LPM28 Series
Specifications:
- 1.100 in Frame Size
- 15° Step Angle
- 24 Rated Voltage
- 0.13 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Leadscrew Lead | Step Travel | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LCPM28L-150-013 | 1.100 in | 1.600 in | 15° | 24 VDC | 0.13 AMP/Phase | 0.040 in | 0.0017 in | 0.099 lbs | Quote |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LCPM28L-150-013 | 1.600 in |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.012 in @ 4.496 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
| Storage Temperature Rating | -22 °F to 185.00 °F |
| Humidity Range | 15 - 85% RH |
