LPM28 Series

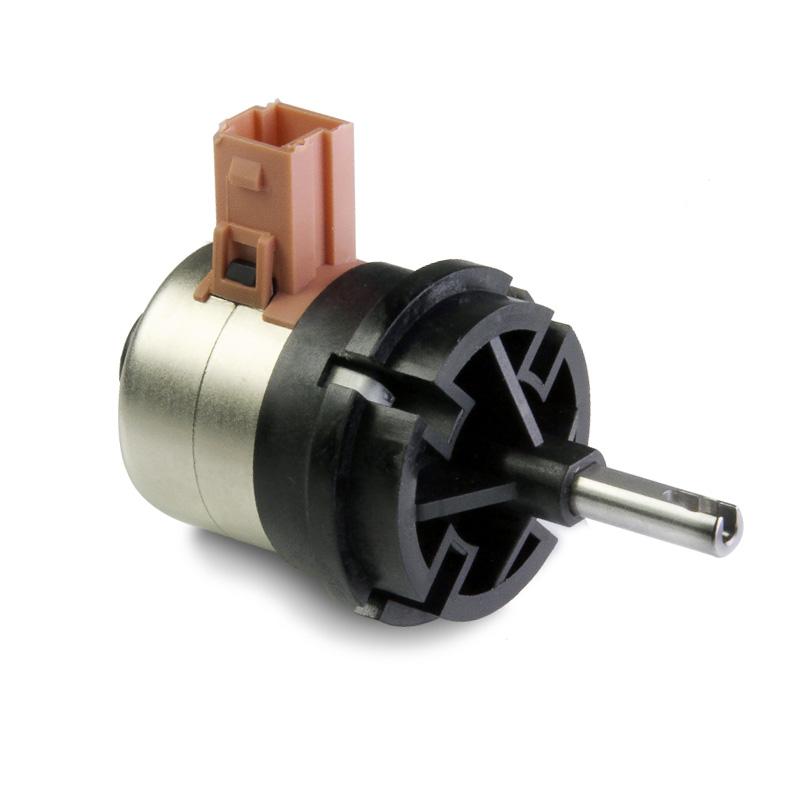

LCPM28L-150-013

Name: LCPM28L-150-013
Brand: Lin Engineering
SKU: LCPM28L-150-013
Price: 45.9 USD
Availability: PreOrder

Quick Facts

LCPM28L-150-013 Series PM Linear Stepper Motors

Specifications:

1.100 in Frame Size
15° Step Angle
24 Rated Voltage
0.13 A/Phase

Dimensions

Model	DIM. A (length) in
LCPM28L-150-013	1.600 in

Performance Curve

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Part Number	LCPM28L-150-013
Style	LC
Step Angle	15°
Frame Size	1.100 in
Body Length	1.600 in
Rated Current	0.13 AMP
Rated Voltage	24 VDC
Leadscrew Lead	0.040 in
Step Travel	0.0017 in
Holding Force	8.992 lbf
Resistance	150 ohm
Connection	Bipolar
Phase	2
Weight	0.099 lbs

Operating Specifications

Radial Shaft Play	0.002 in @ 1.124 lbf
Axial Shaft Play	0.012 in @ 4.496 lbf
Insulation Rating	Class B
Ambient Temperature Rating	-4 °F to 122.00 °F
Storage Temperature Rating	-22 °F to 185.00 °F
Humidity Range	15 - 85% RH

Downloads

LCPM28L-150-013 Configured Datasheet (PDF)
