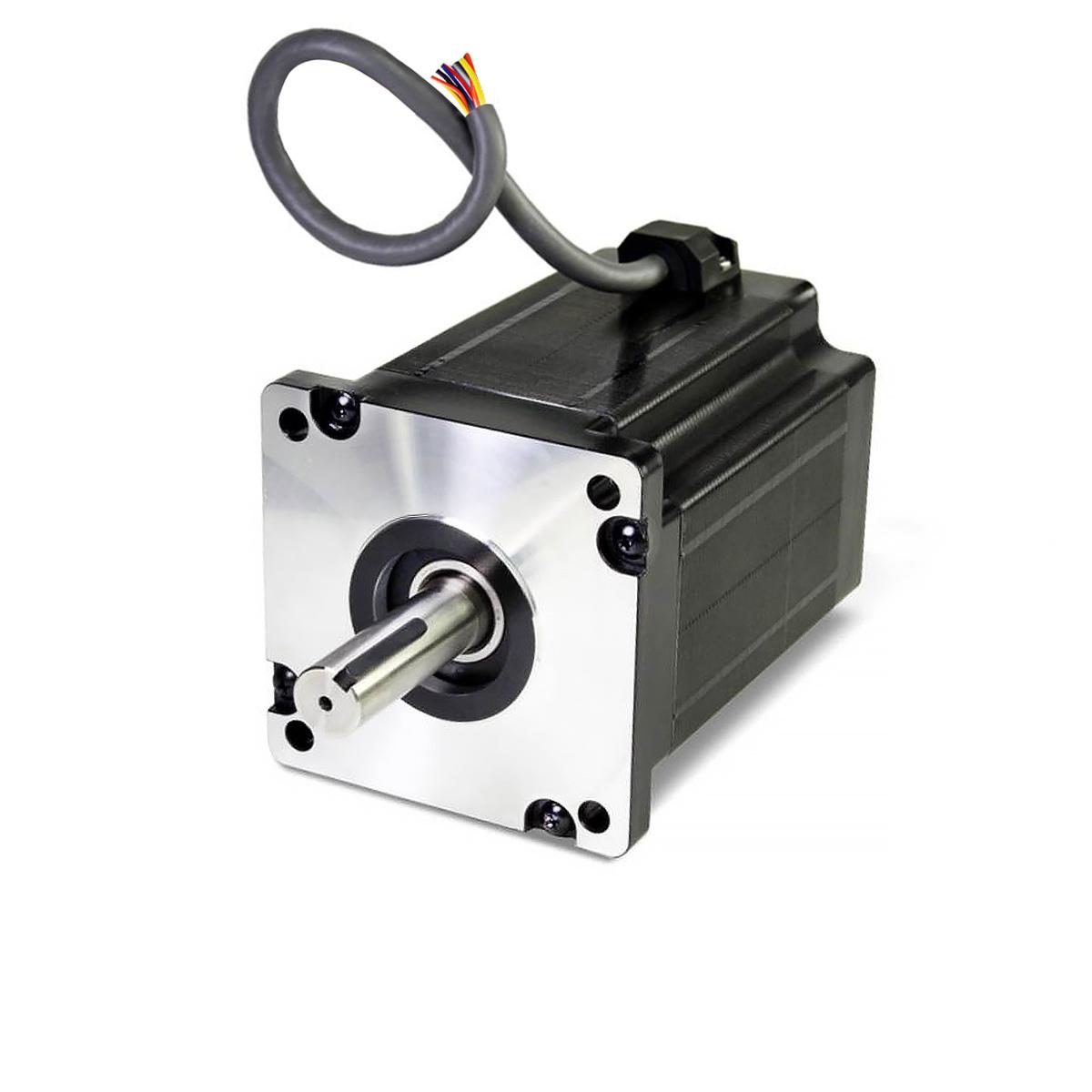

11018 SeriesHybrid Stepper Motor
Features and Benefits:
- Extreme Torque
Specifications:
- NEMA 42 (4.330 in) Frame Size
- 1.8° Step Angle
- 3.88 to 7.91 in Length
- 1727.67 to 4531.58 oz-in Holding Torque
Models
Select Winding type
This motor can be wired as Series or Parallel motor winding. Please select preferred winding for this motor.
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11018-100-60E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 3.880 in | 8.4 AMP | 1727.67 oz-in | 0.3 | 30.07 oz-in² | 10.582 lbs | 8 | Online |
| 11018-100-85E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 3.880 in | 12 AMP | 1741.83 oz-in | 0.159 | 30.07 oz-in² | 10.582 lbs | 8 | Online |
| 11018-151-11E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 5.940 in | 16 AMP | 3115.46 oz-in | 0.108 | 59.6 oz-in² | 17.637 lbs | 8 | Online |
| 11018-151-94E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 5.940 in | 12 AMP | 3115.46 oz-in | 0.7 | 59.6 oz-in² | 17.637 lbs | 8 | Online |
| 11018-202-11E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 7.910 in | 16 AMP | 4531.58 oz-in | 0.144 | 88.57 oz-in² | 25.574 lbs | 8 | Online |
| 11018-202-90E | NEMA 42 | 4.330 in | 1.8° | Bipolar-Parallel | 7.910 in | 12 AMP | 4389.97 oz-in | 0.23 | 88.57 oz-in² | 25.574 lbs | 8 | Online |
Torque Curves
Select Winding type
This motor can be wired as Series or Parallel motor winding. Please select preferred winding for this motor.
Speed
RPM
- 11018-100-60E
- 11018-100-85E
- 11018-151-11E
- 11018-151-94E
- 11018-202-11E
- 11018-202-90E
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| 11018-100-60E | 3.880 in |
| 11018-100-85E | 3.880 in |
| 11018-151-11E | 5.940 in |
| 11018-151-94E | 5.940 in |
| 11018-202-11E | 7.910 in |
| 11018-202-90E | 7.910 in |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 39 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |

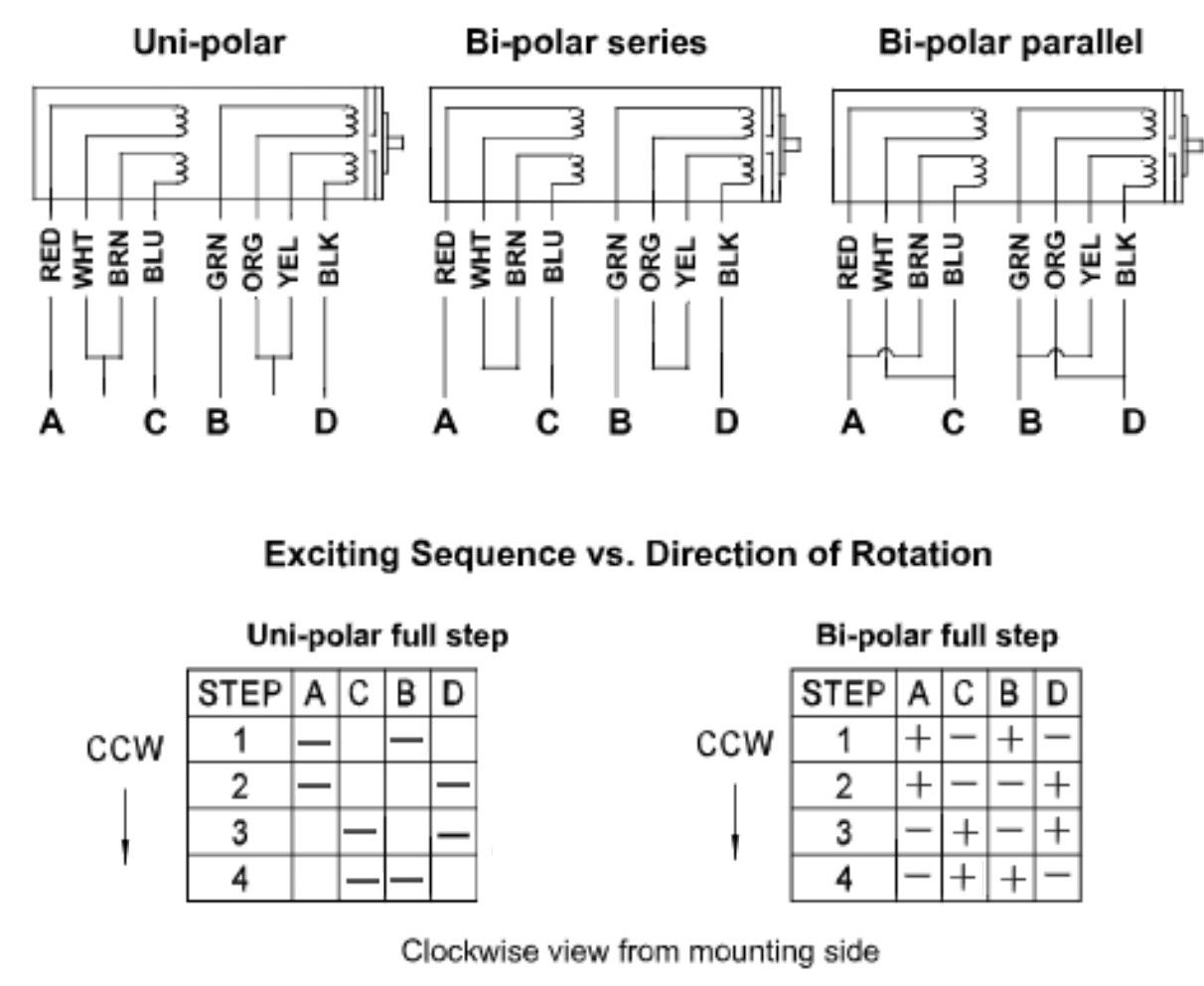

Wiring Diagram
