Hybrid Stepper Motors
Rotary Actuators
Lin Engineering designs and manufactures stepper motors, offering a broad selection of frame sizes, step angles, and options. Start prototyping your next product with our configurable off-the-shelf motors or collaborate with our US-based engineering team for a tailored solution that meets your specific requirements.

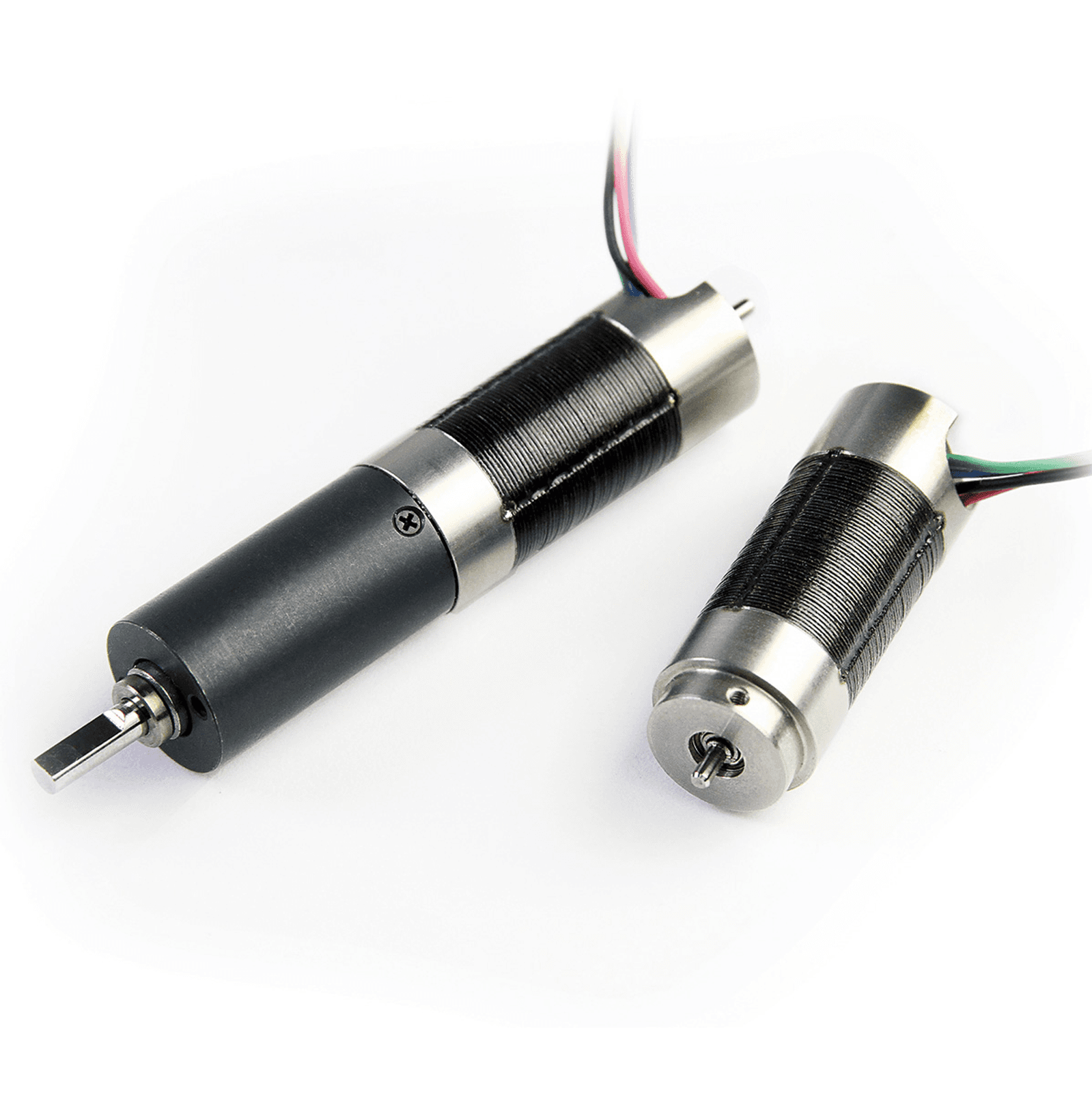

1330 Series
NEMA 5
Frame Size
NEMA 05 (0.510 in)
Step Angle
30°
Length
1.24 to 2.28 in
Holding Torque
0.61 to 41.7 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

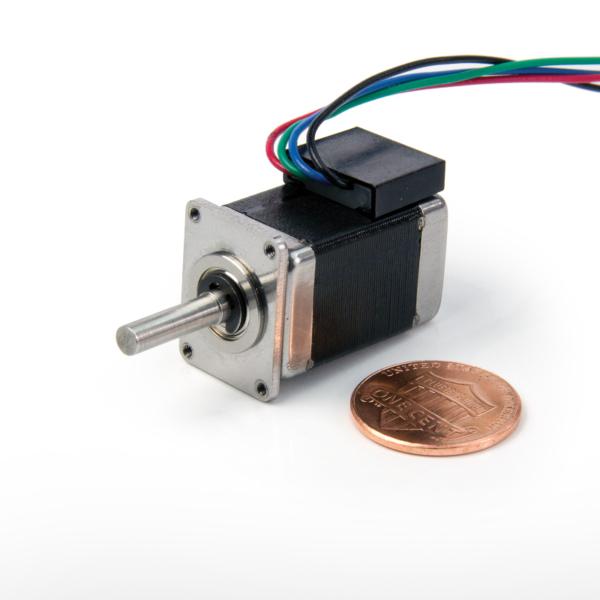

106 Series
NEMA 6
Frame Size
NEMA 06 (0.630 in)
Step Angle
3.46°
Length
1.3 in
Holding Torque
1.98 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

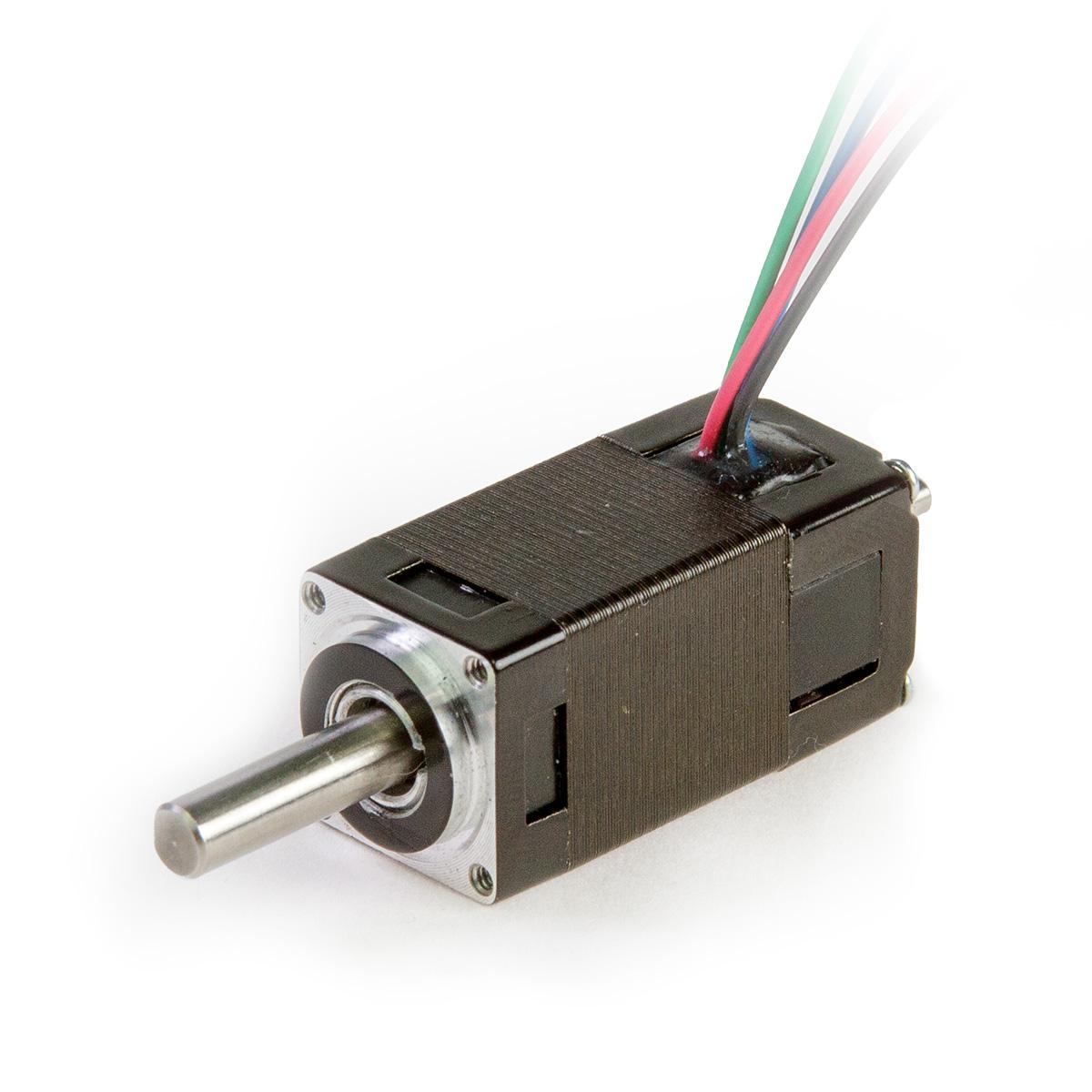

206 Series
NEMA 6
Frame Size
NEMA 06 (0.550 in)
Step Angle
1.8°
Length
1.18 in
Holding Torque
0.91 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

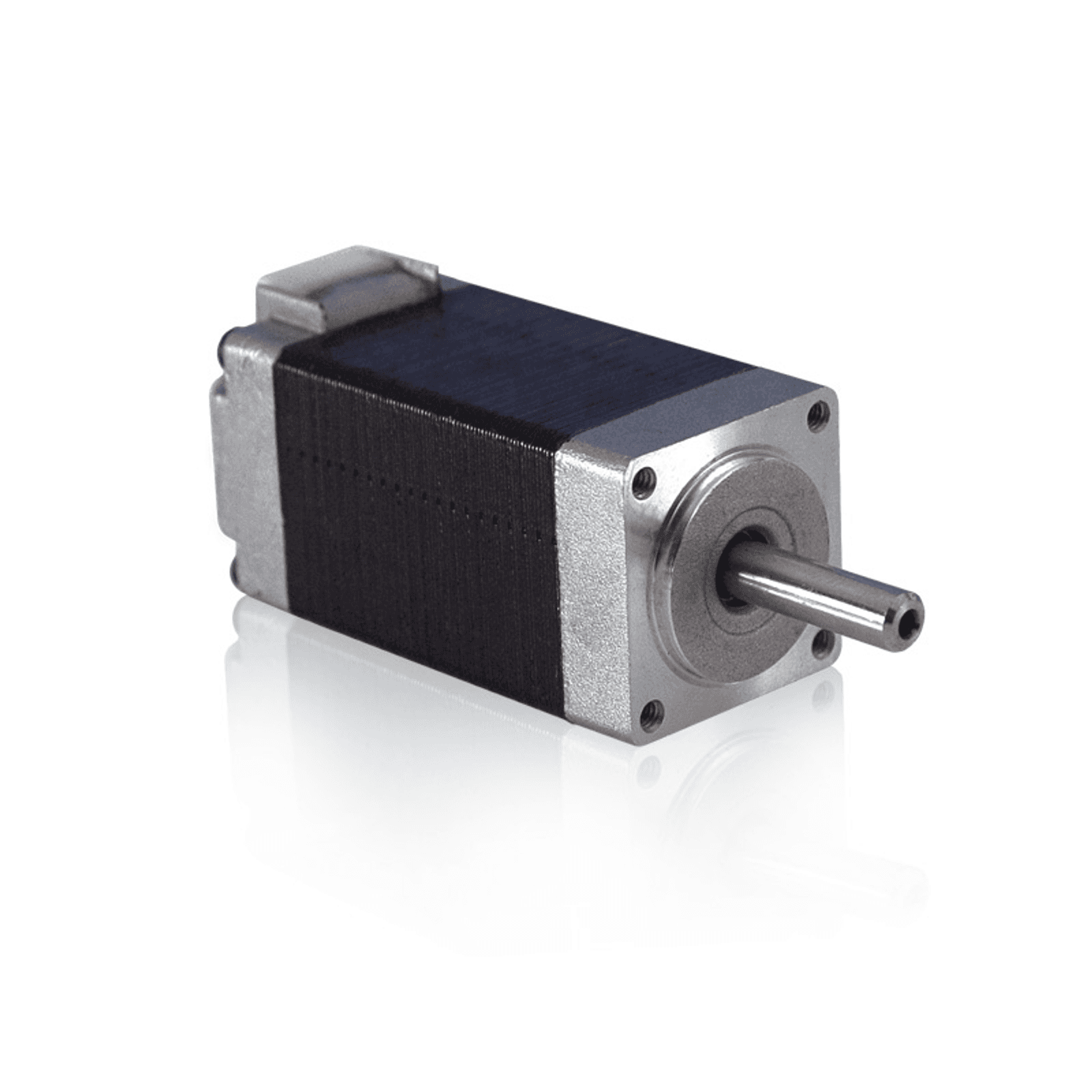

208 Series
NEMA 8
Frame Size
NEMA 08 (0.800 in)
Step Angle
1.8°
Length
1.3 to 1.69 in
Holding Torque
3 to 4.25 oz-in
Available Options
Hot/Cold
Vacuum
Available Online
View Series Details
X208 Series
NEMA 8
Frame Size
NEMA 08 (0.800 in)
Step Angle
1.8°
Length
1.16 to 1.83 in
Holding Torque
4.25 to 8.21 oz-in
Available Options
Hot/Cold
Vacuum
Available Online
View Series Details

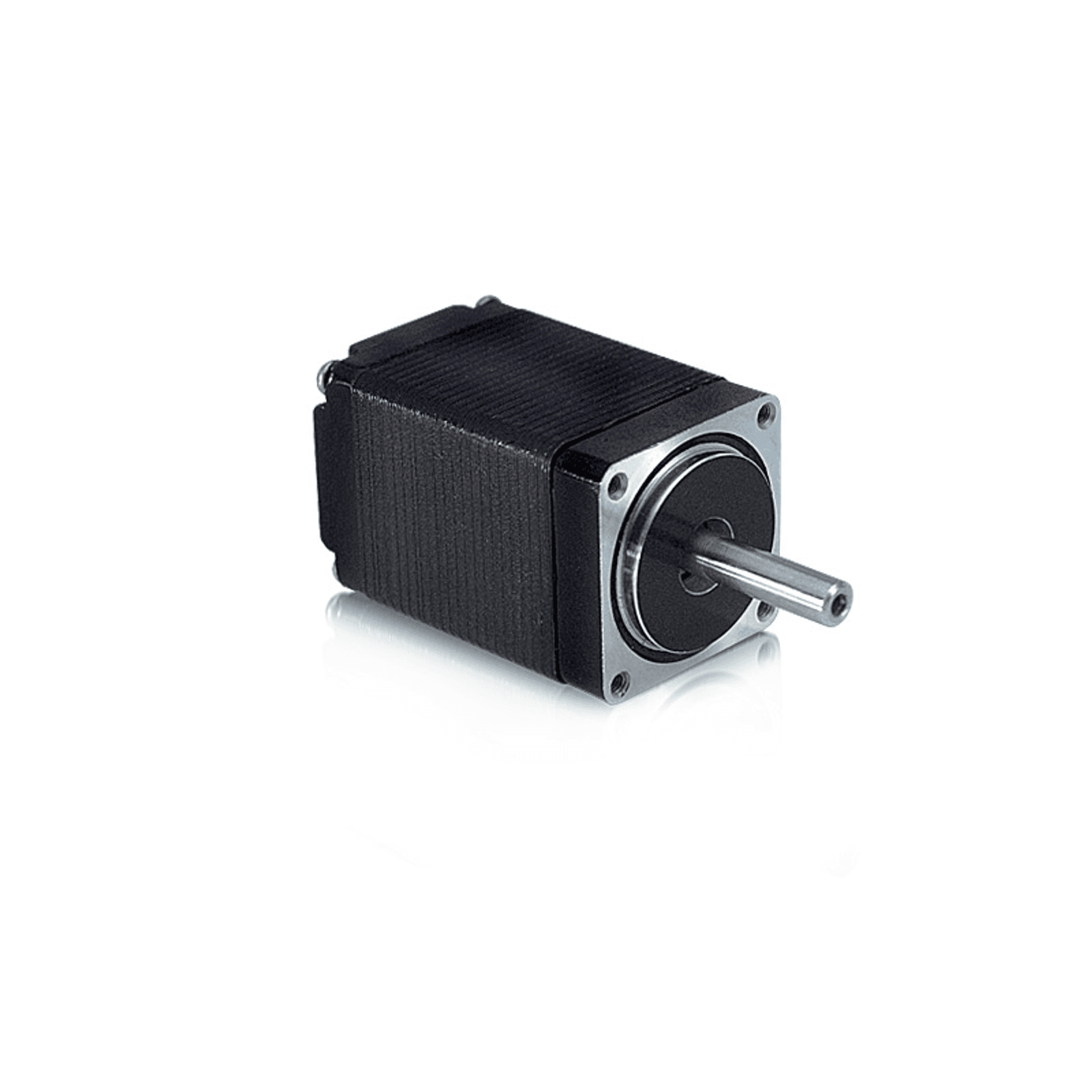

211 Series
NEMA 11
Frame Size
NEMA 11 (1.110 in)
Step Angle
1.8°
Length
1.26 to 2.01 in
Holding Torque
8.5 to 16.99 oz-in
Available Options
Hot/Cold
Vacuum
Available Online
View Series Details

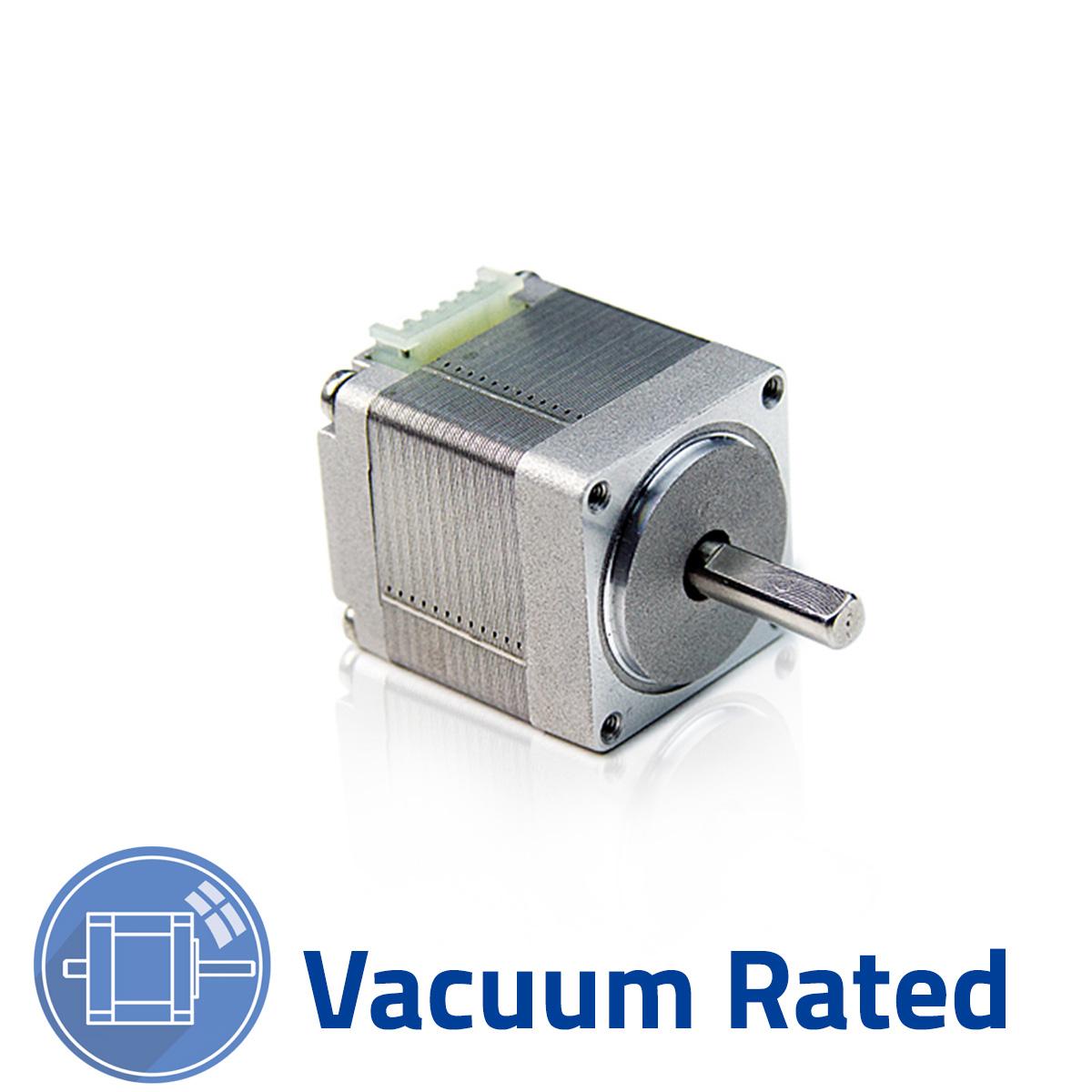

V211 Series
NEMA 11
Frame Size
NEMA 11 (1.110 in)
Step Angle
1.8°
Length
1.26 to 2.01 in
Holding Torque
8.5 to 16.99 oz-in
Available Options
Vacuum
Hot/Cold
Quote
View Series Details
3518 Series
NEMA 14
Frame Size
NEMA 14 (1.390 in)
Step Angle
0.9°
Length
1.02 to 2.19 in
Holding Torque
7.08 to 56.64 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

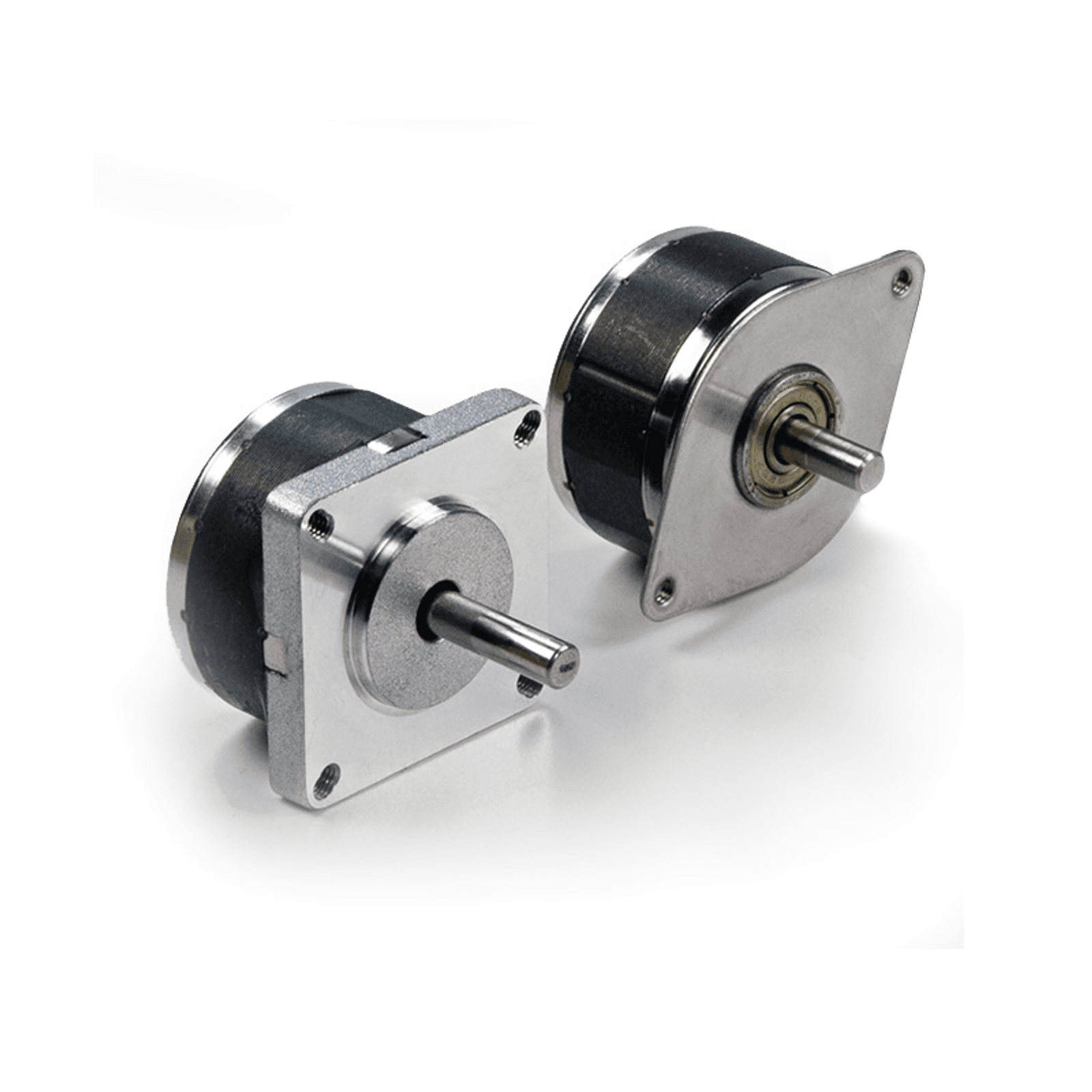

3709 Series
NEMA 14
Frame Size
NEMA 14 (1.440 in)
Step Angle
0.9°
Length
0.55 to 1.19 in
Holding Torque
5.35 to 21.24 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

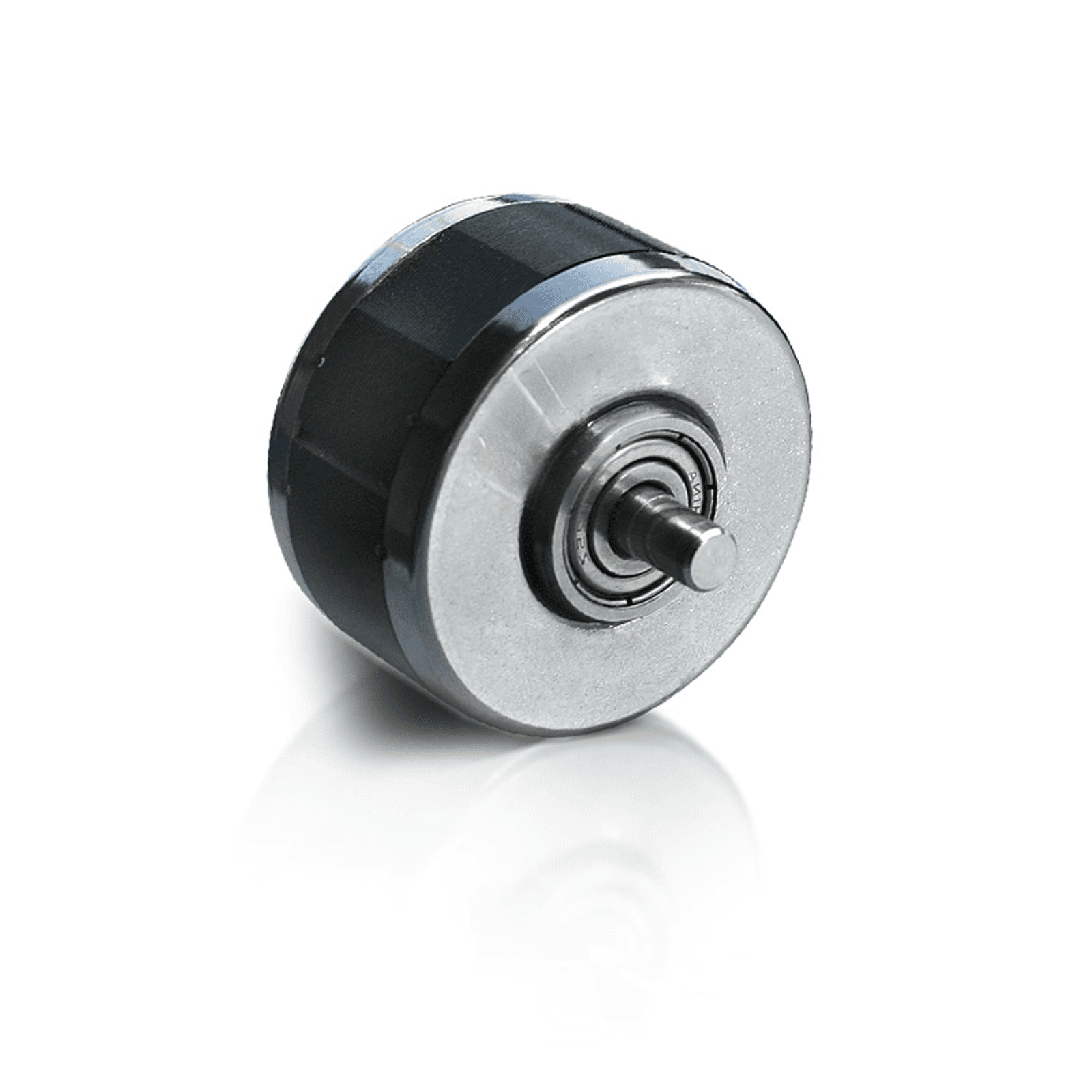

3809 Series
NEMA 14
Frame Size
NEMA 14 (1.430 in)
Step Angle
0.9°
Length
0.5 to 0.78 in
Holding Torque
4.25 to 15.58 oz-in
Available Options
Hot/Cold
Available Online
View Series Details
V3518 Series
NEMA 14
Frame Size
NEMA 14 (1.390 in)
Step Angle
1.8°
Length
1.34 to 2.19 in
Holding Torque
19.83 to 56.64 oz-in
Available Options
Vacuum
Hot/Cold
Quote
View Series Details

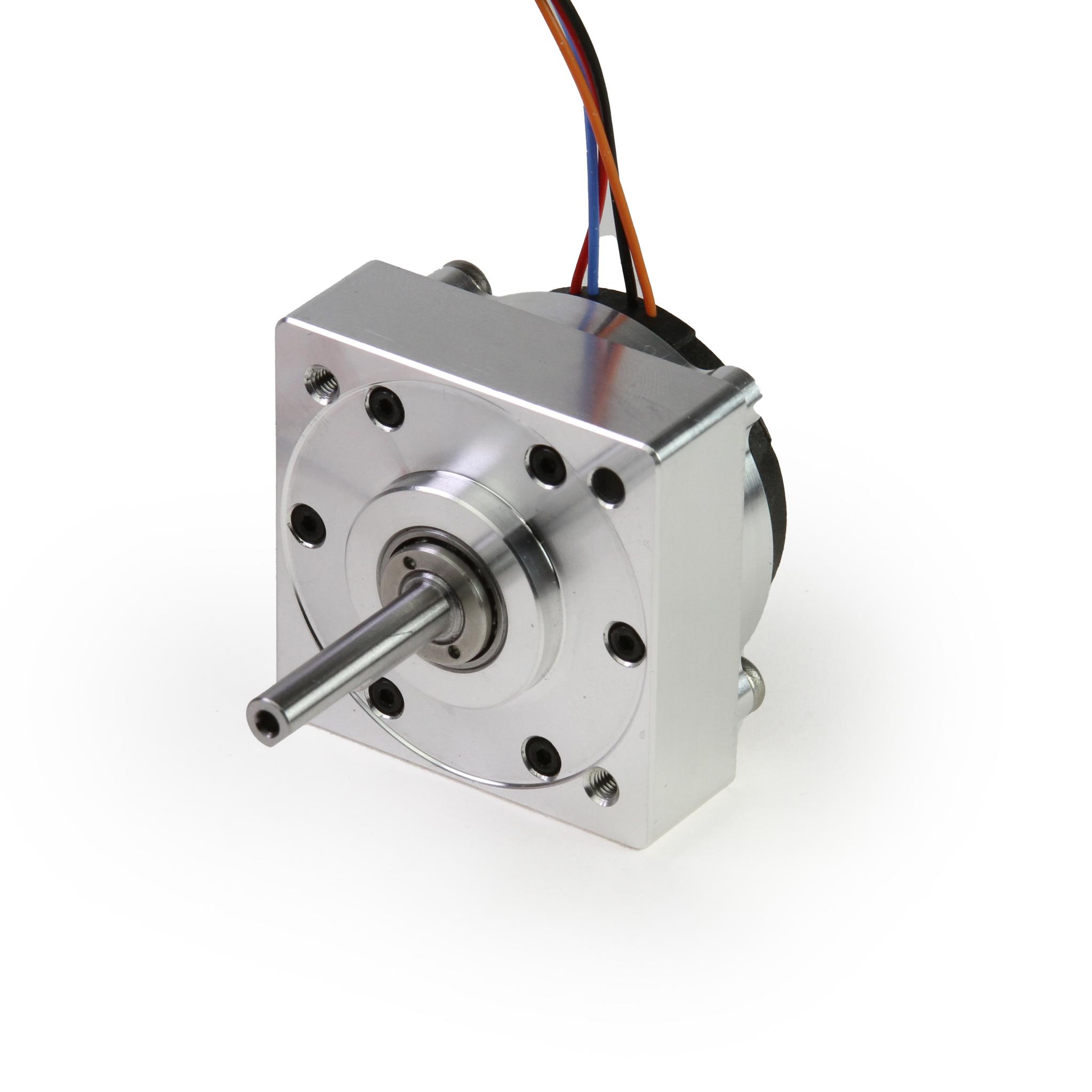

3618 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
0.18°
Length
1.02 in
Holding Torque
52.99 to 105.98 oz-in
Quote
View Series Details

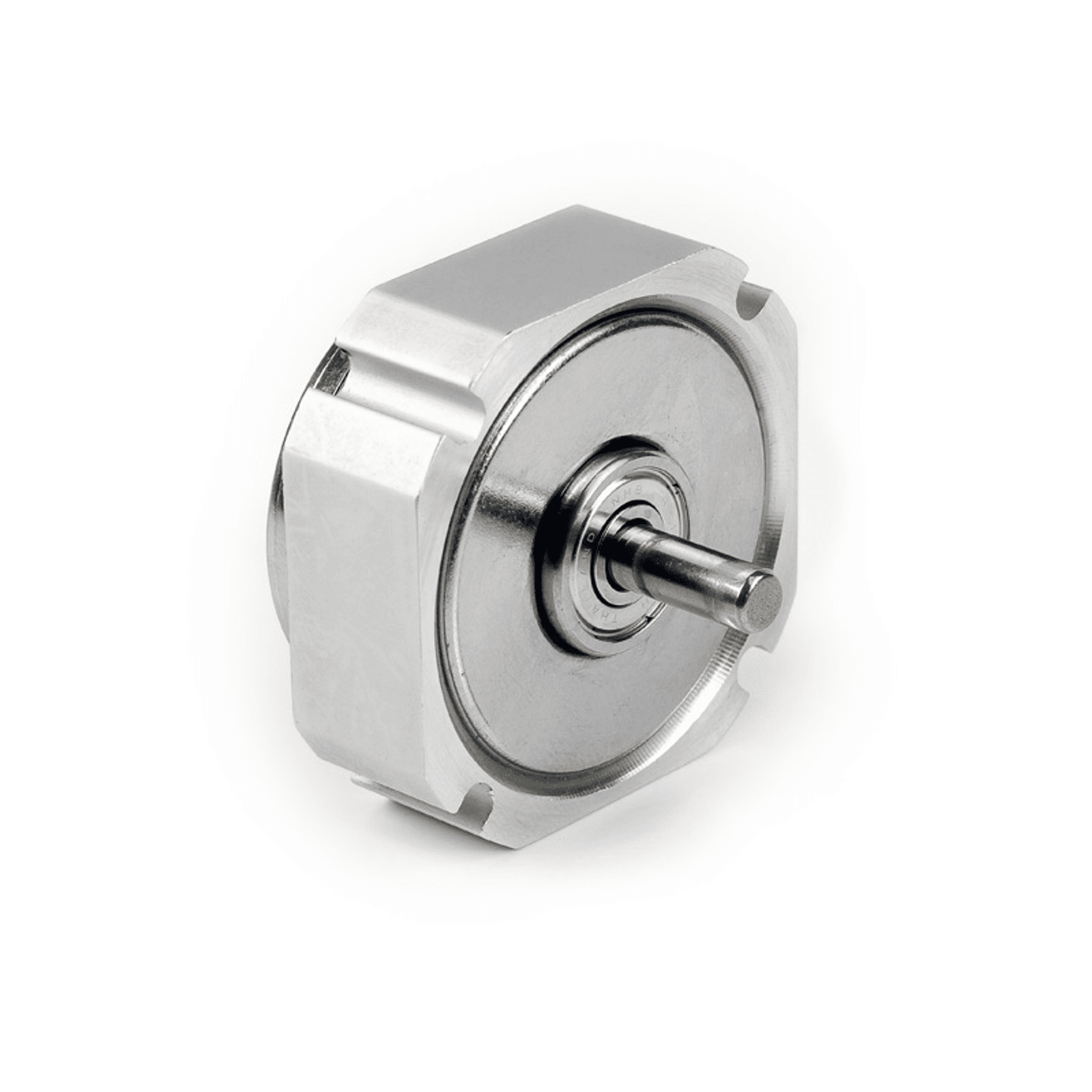

4109 Series
NEMA 17
Frame Size
NEMA 17 (1.650 in)
Length
0.49 to 1.1 in
Holding Torque
2.83 to 22.66 oz-in
Available Options
Hot/Cold
Vacuum
Available Online
View Series Details
4118 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
1.8°
Length
1.34 to 2.34 in
Holding Torque
42.48 to 124.62 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details
416 Series
NEMA 17
Frame Size
NEMA 17 (1.540 in)
Step Angle
0.9°
Length
0.55 to 0.7 in
Holding Torque
5.66 to 8.5 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

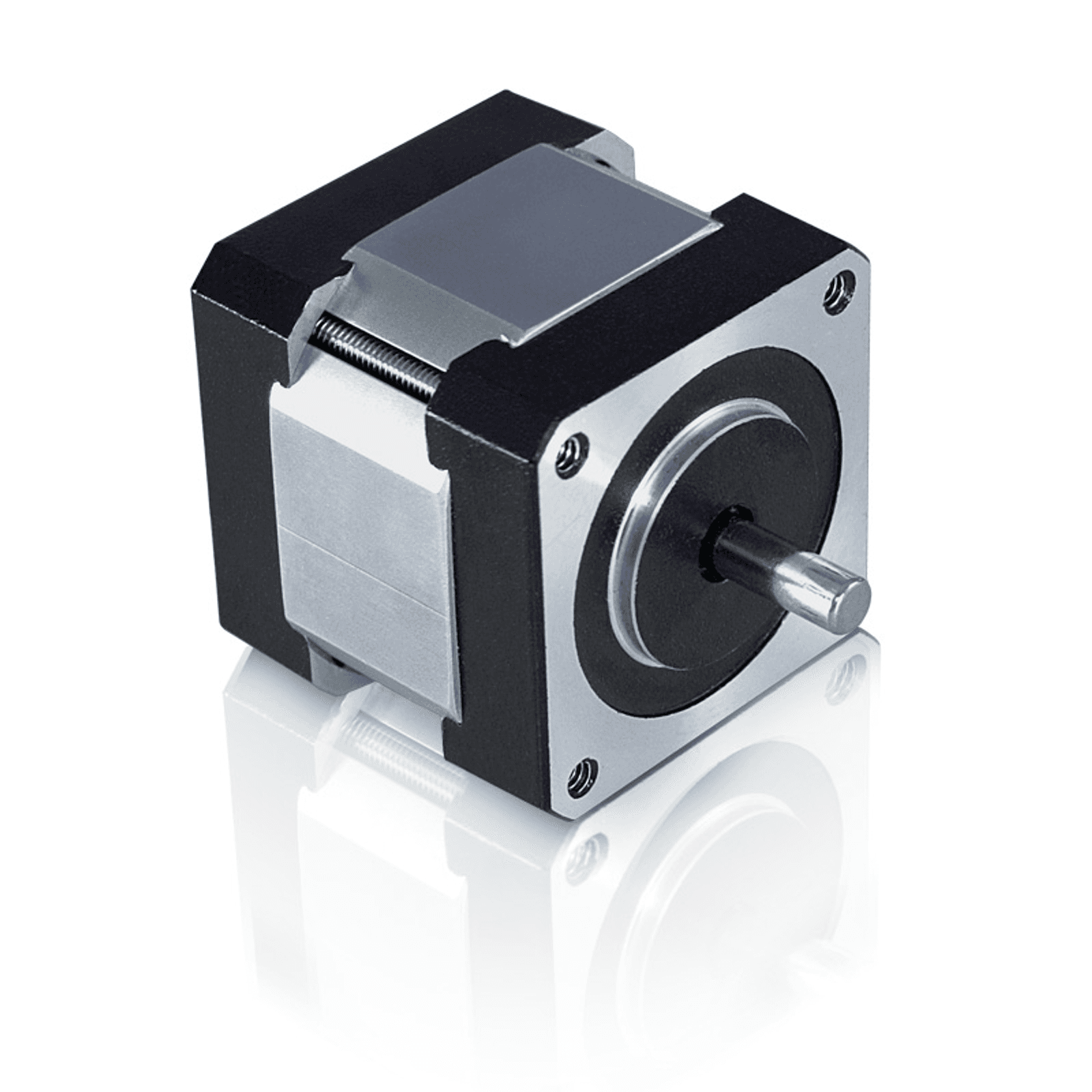

417 Series
NEMA 17
Frame Size
NEMA 17 (1.650 in)
Step Angle
0.9°
Length
0.93 to 1.54 in
Holding Torque
11.33 to 29.74 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

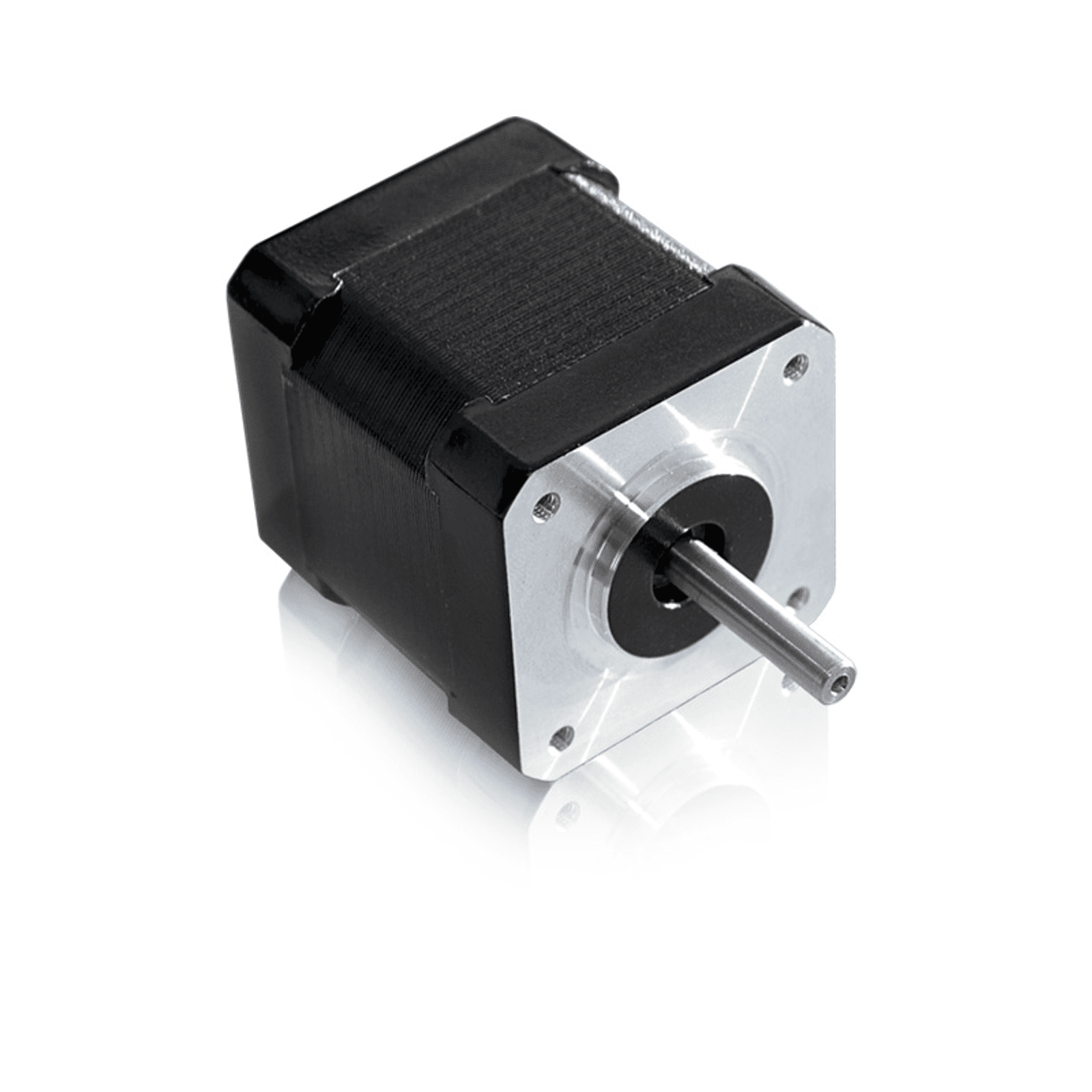

4209 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
0.9°
Length
1.34 to 1.89 in
Holding Torque
31.15 to 62.31 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

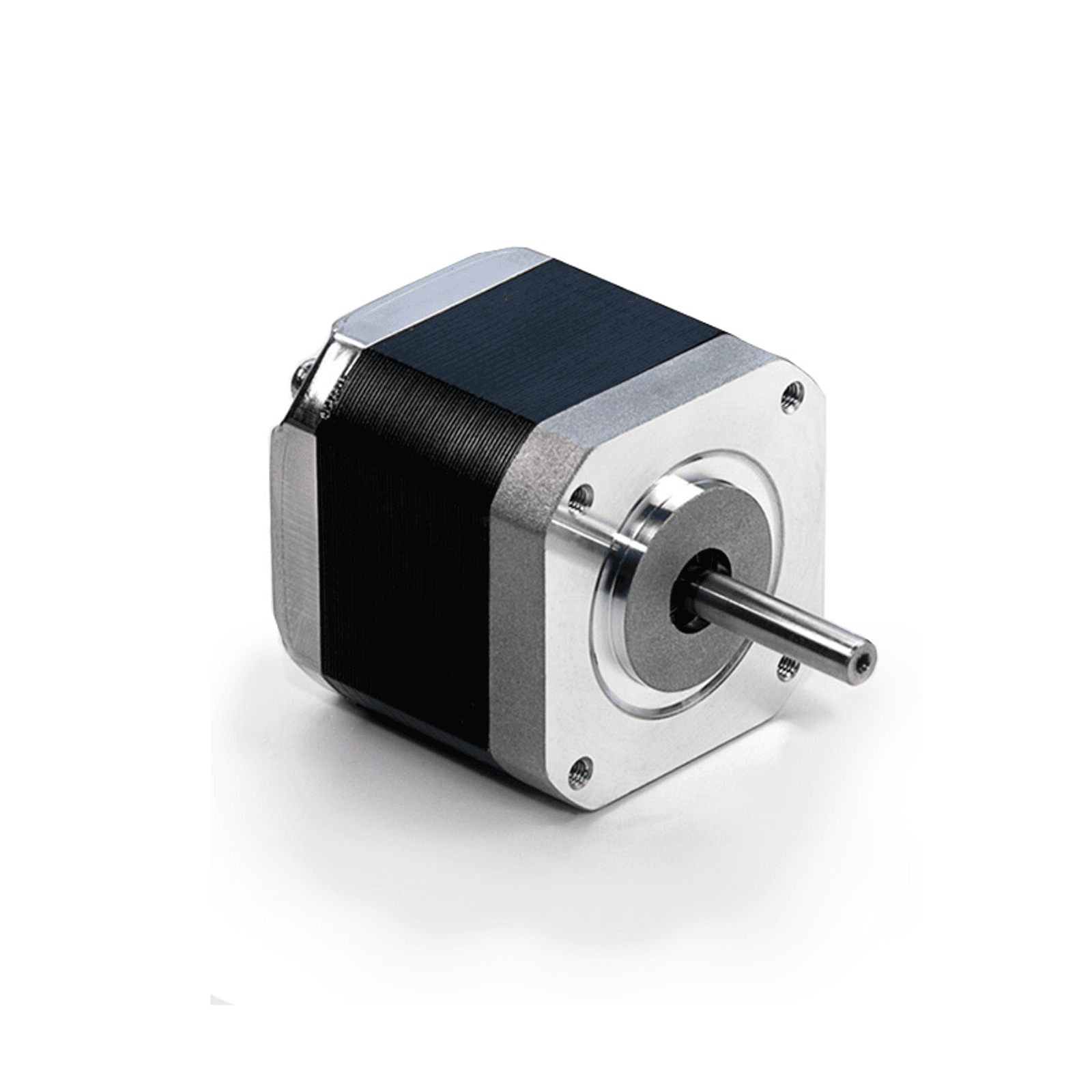

4418 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
1.8°
Length
1.02 to 1.89 in
Holding Torque
26.91 to 100.54 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

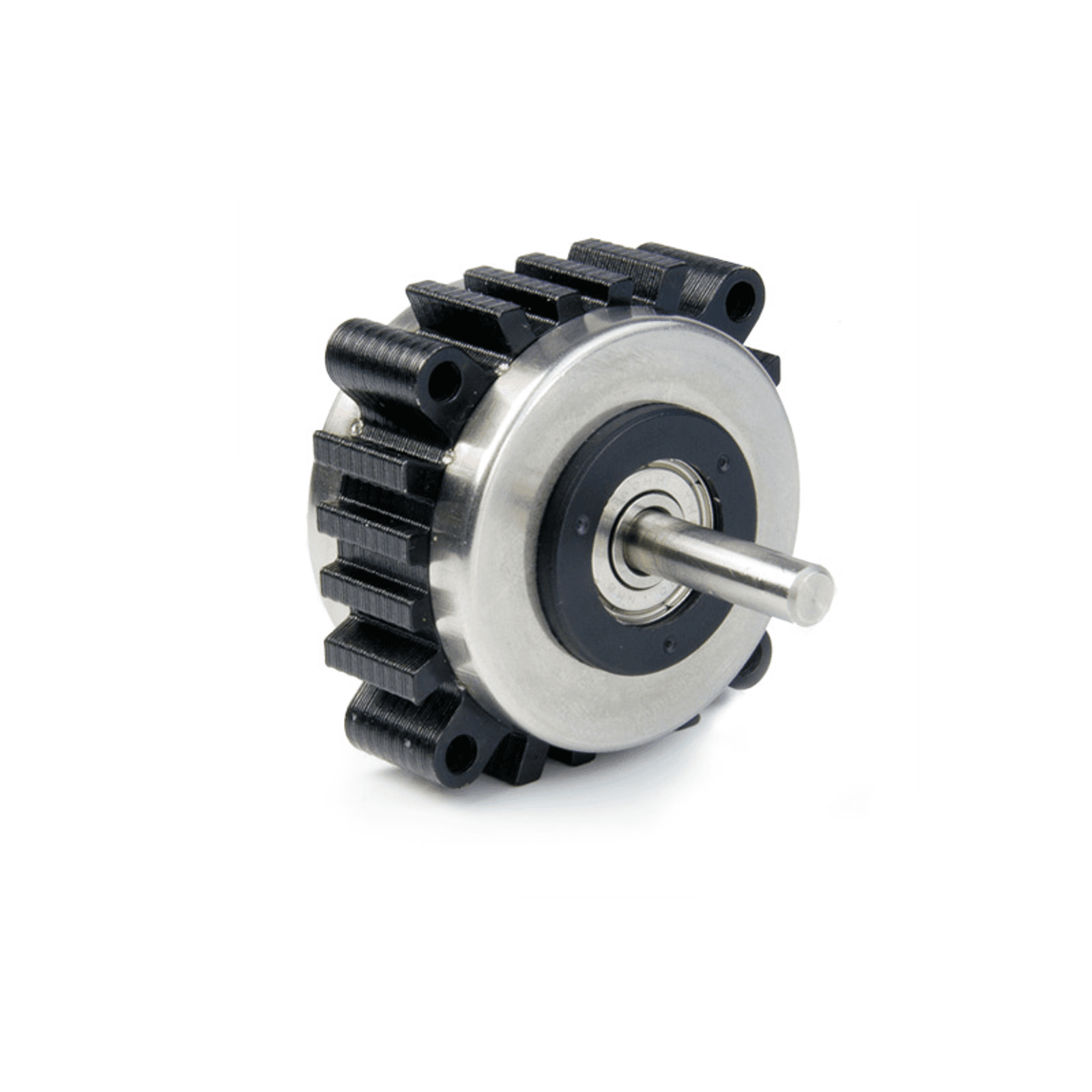

G3718 Series
NEMA 17
Frame Size
NEMA 17 (1.580 in)
Step Angle
1.8°
Length
0.9 in
Holding Torque
25.49 oz-in
Available Options
Hot/Cold
Quote
View Series Details

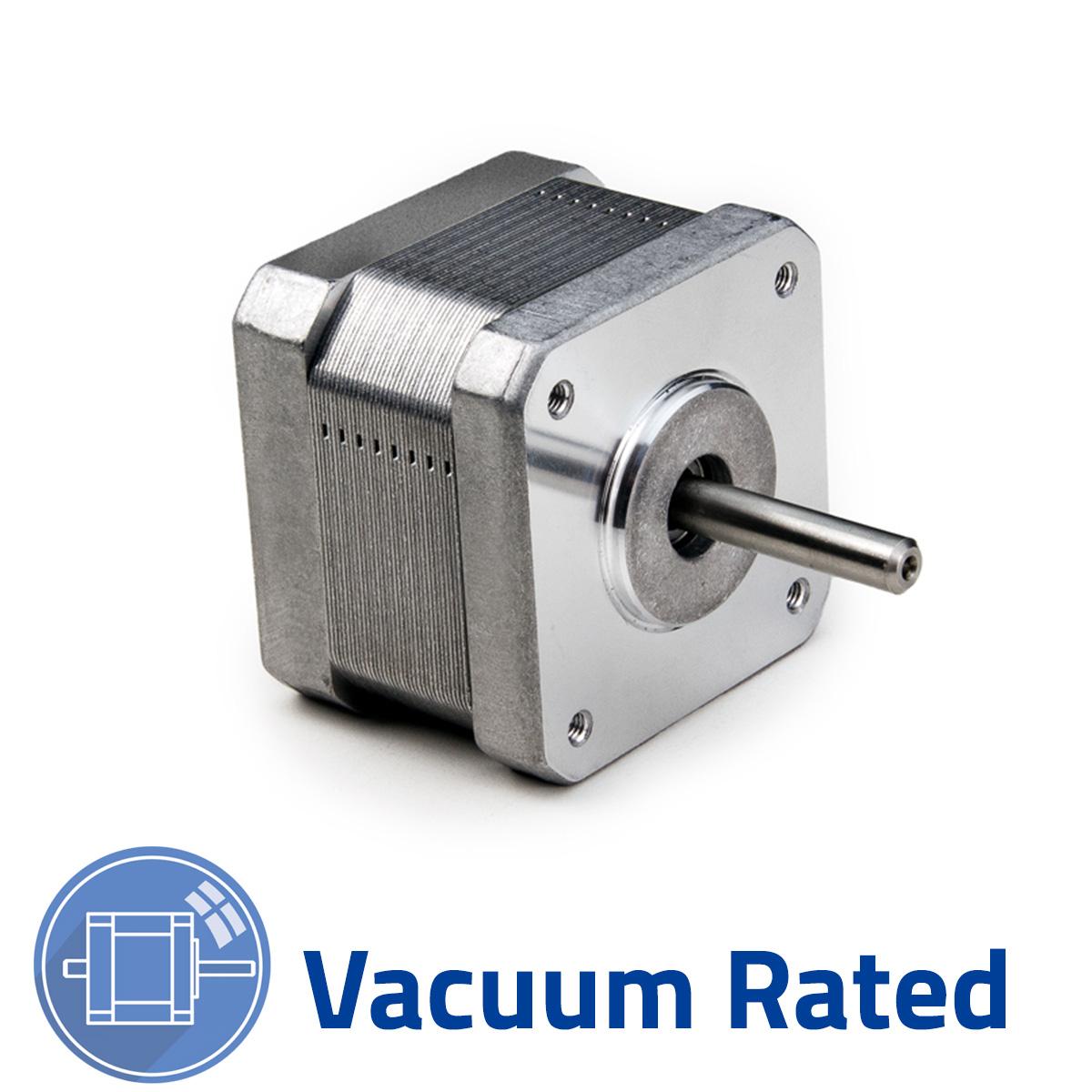

V4118 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
1.8°
Length
1.34 to 2.34 in
Holding Torque
42.48 to 124.62 oz-in
Available Options
Vacuum
Hot/Cold
Quote
View Series Details

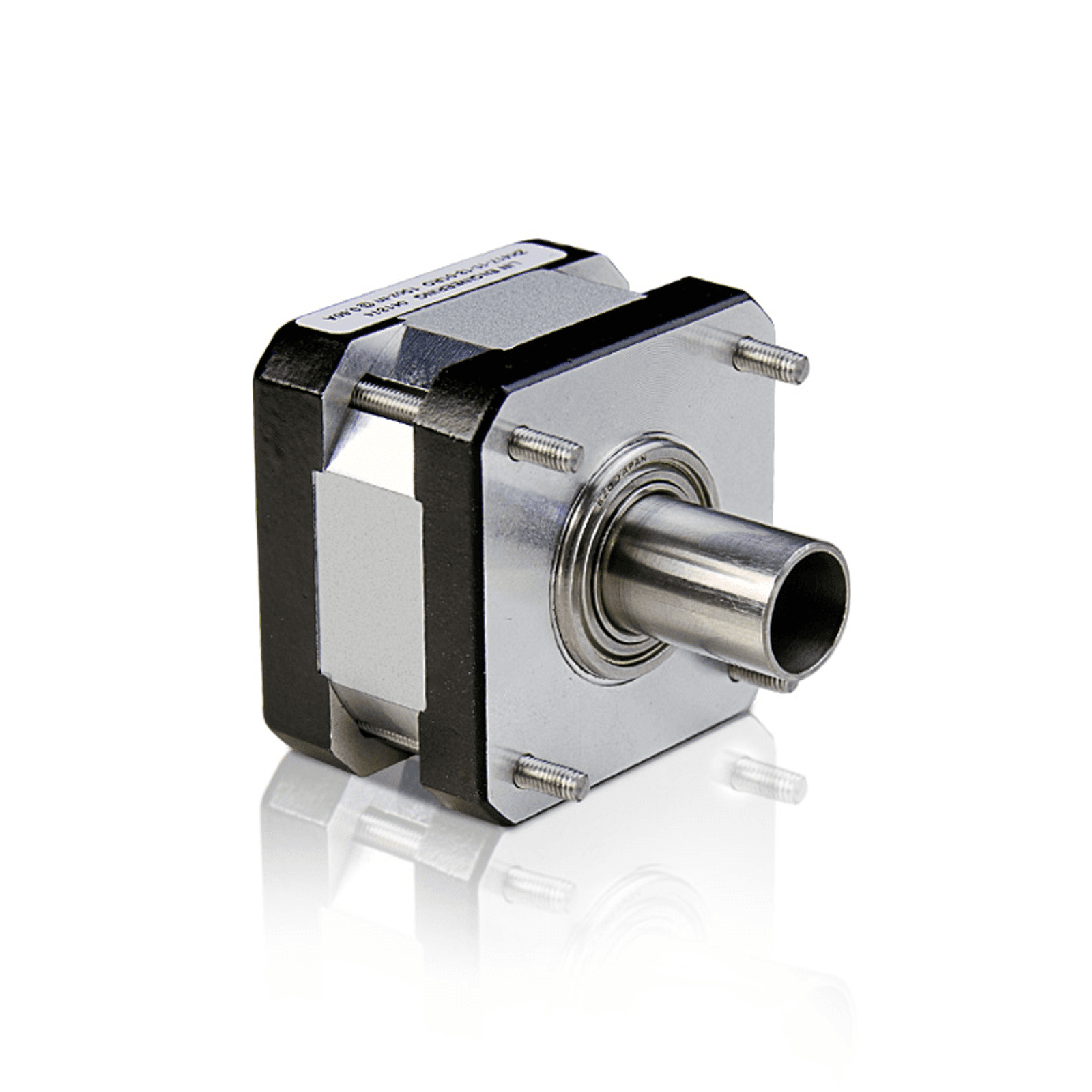

ZH417 Series
NEMA 17
Frame Size
NEMA 17 (1.650 in)
Step Angle
0.9°
Length
1.1 to 1.7 in
Holding Torque
16.99 to 33.99 oz-in
Available Options
Hot/Cold
Quote
View Series Details

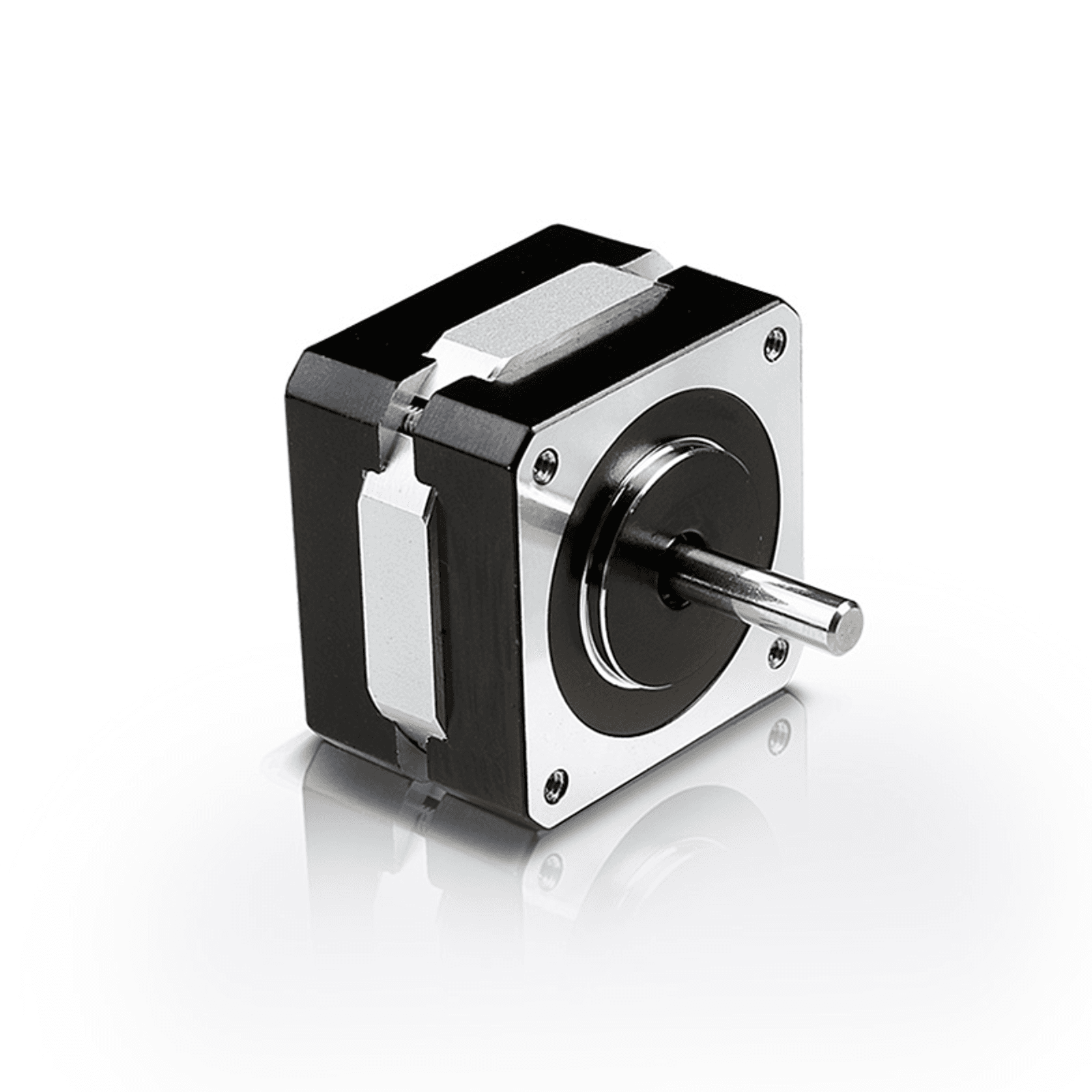

ZN417 Series
NEMA 17
Frame Size
NEMA 17 (1.650 in)
Step Angle
0.9°
Length
1.1 to 1.7 in
Holding Torque
11.33 to 28.32 oz-in
Available Options
Hot/Cold
Vacuum
Quote
View Series Details

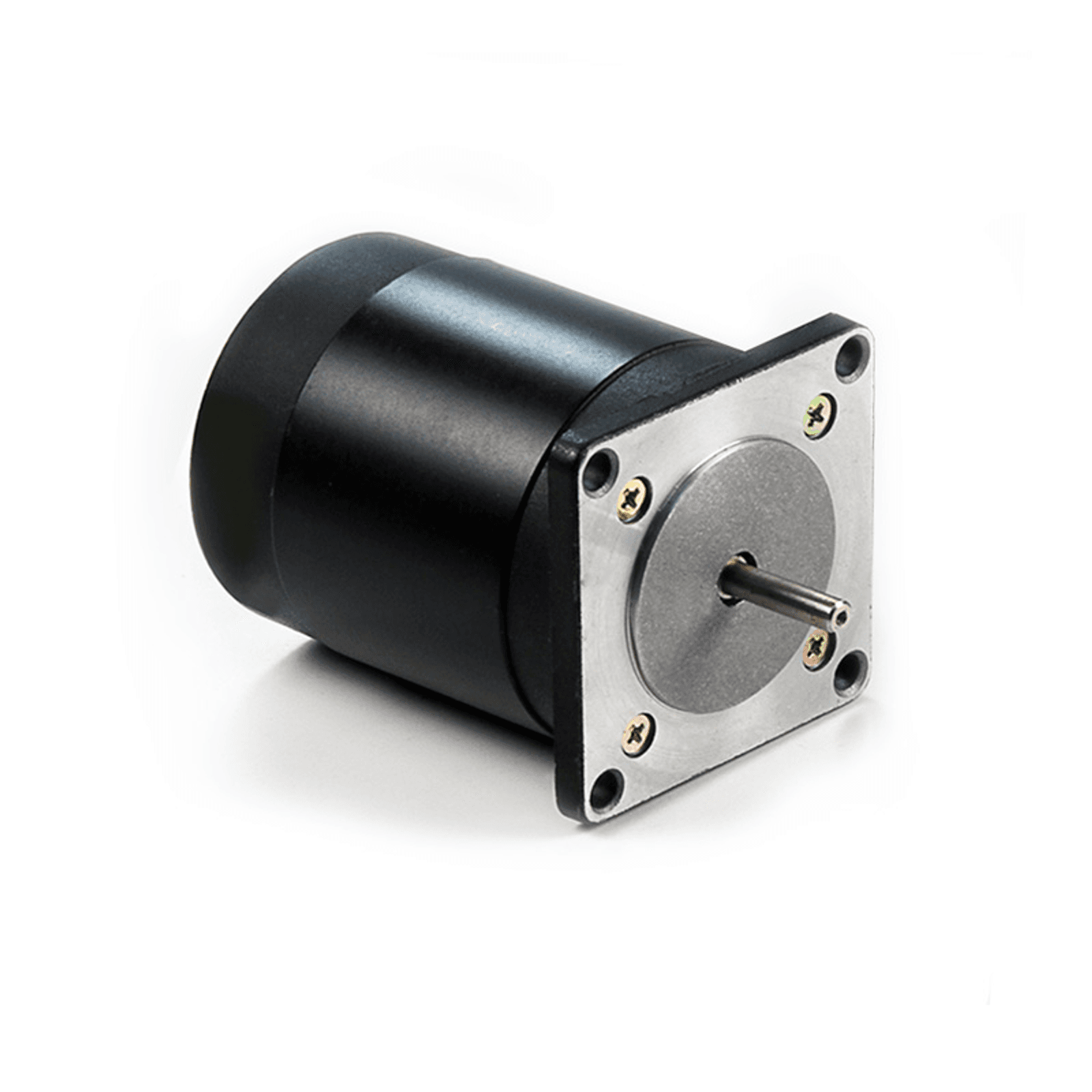

5618 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
1.62 to 3.03 in
Holding Torque
76.47 to 175.6 oz-in
Available Options
Hot/Cold
Available Online
View Series Details

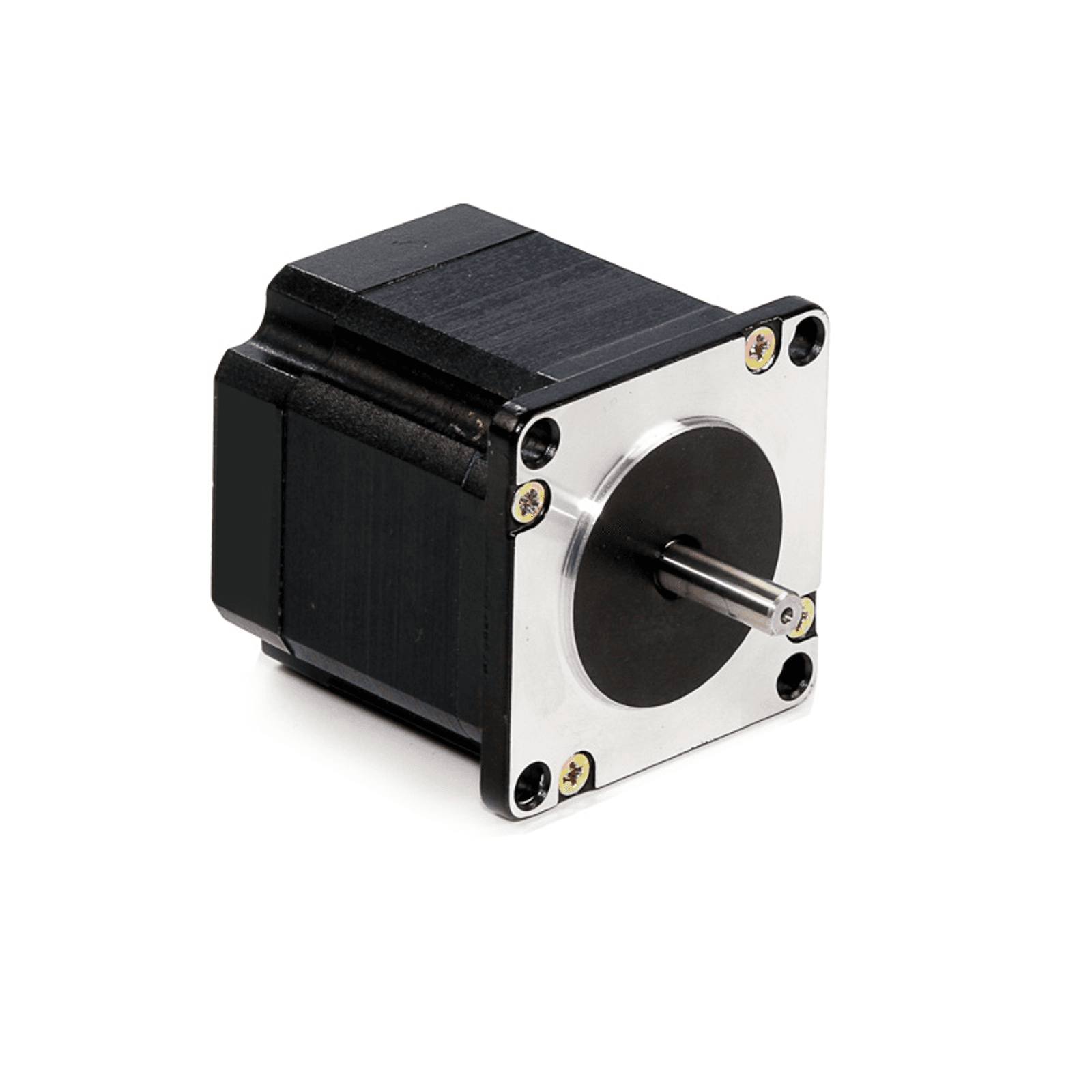

5704 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
0.45°
Length
1.73 to 2.17 in
Holding Torque
75.05 to 140.2 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Quote
View Series Details
5709 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
0.9°
Length
1.63 to 3.08 in
Holding Torque
84.92 to 339.7 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details
5718 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
1.74 to 3.1 in
Holding Torque
100.54 to 294.55 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details
5818 Series
NEMA 23
Frame Size
NEMA 23 (2.400 in)
Step Angle
1.8°
Length
1.74 to 2.6 in
Holding Torque
155.77 to 304.47 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

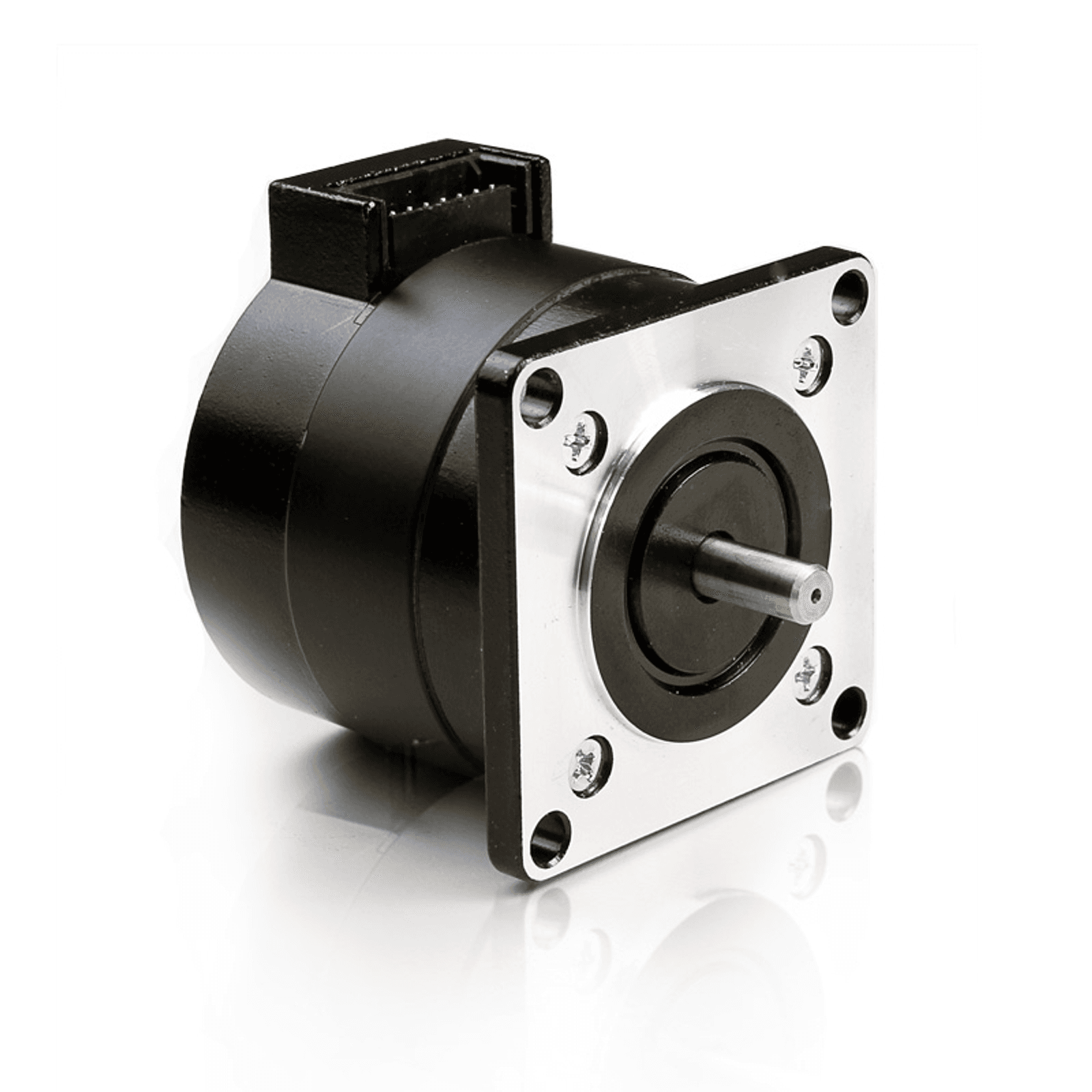

E5618 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
2.01 in
Holding Torque
112.02 to 162 oz-in
Available Options
Hot/Cold
Quote
View Series Details
E5718 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
2.24 to 3.43 in
Holding Torque
260.57 to 600.43 oz-in
Available Options
Hot/Cold
Quote
View Series Details
V5718 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
1.8°
Length
1.74 to 3.1 in
Holding Torque
100.54 to 294.55 oz-in
Available Options
Vacuum
Hot/Cold
Quote
View Series Details

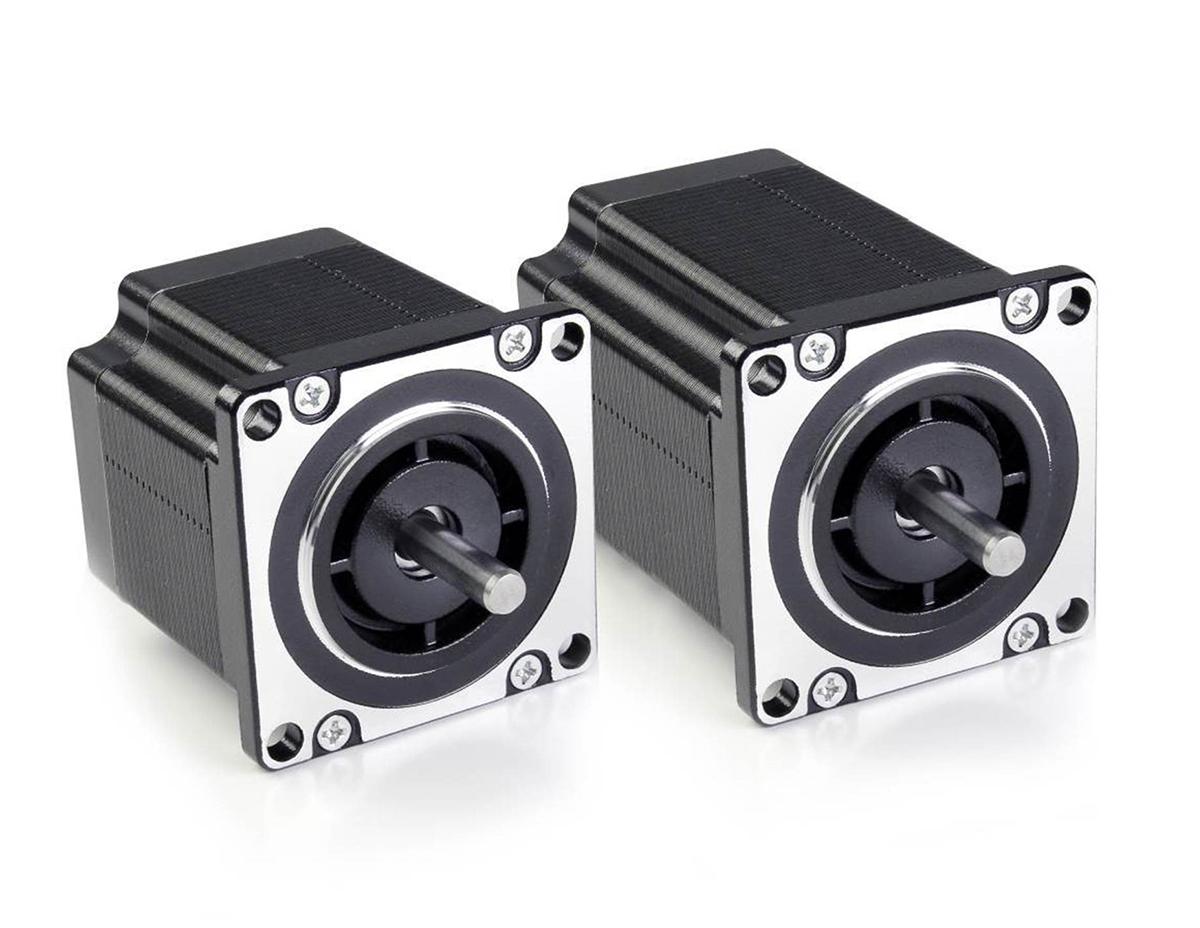

X5718 Series
NEMA 23
Frame Size
NEMA 23 (2.220 in)
Step Angle
1.8°
Length
2.17 to 3.03 in
Holding Torque
311.55 to 467.32 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details

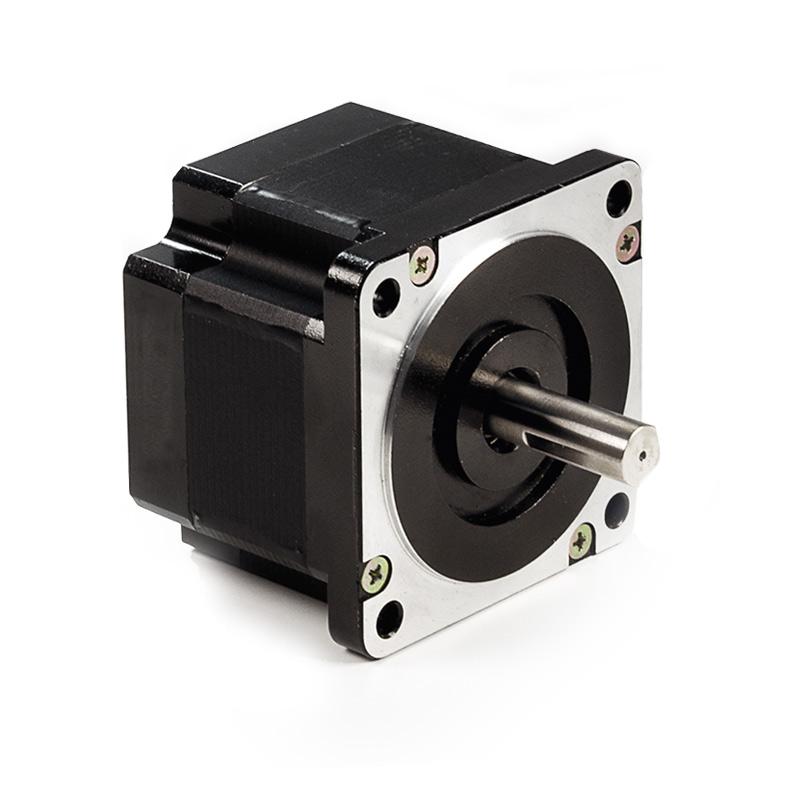

8718 Series
NEMA 34
Frame Size
NEMA 34 (3.390 in)
Step Angle
1.8°
Length
2.64 to 5 in
Holding Torque
433.33 to 1288.67 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details
X8718 Series
NEMA 34
Frame Size
NEMA 34 (3.390 in)
Step Angle
1.8°
Length
2.66 to 6.18 in
Holding Torque
679.74 to 2124.18 oz-in
Available Options
Hot/Cold
Vacuum
IP67
Available Online
View Series Details
11018 Series
NEMA 42
Frame Size
NEMA 42 (4.330 in)
Step Angle
1.8°
Length
3.88 to 7.91 in
Holding Torque
1727.67 to 4531.58 oz-in
Available Options
Hot/Cold
Available Online
View Series DetailsLegacy products
G4518 Series
NEMA 17
Frame Size
NEMA 17 (1.670 in)
Step Angle
1.8°
Length
1.34 to 2.34 in
Holding Torque
43.9 to 130.28 oz-in
Available Options
Hot/Cold
Quote
View Series Details

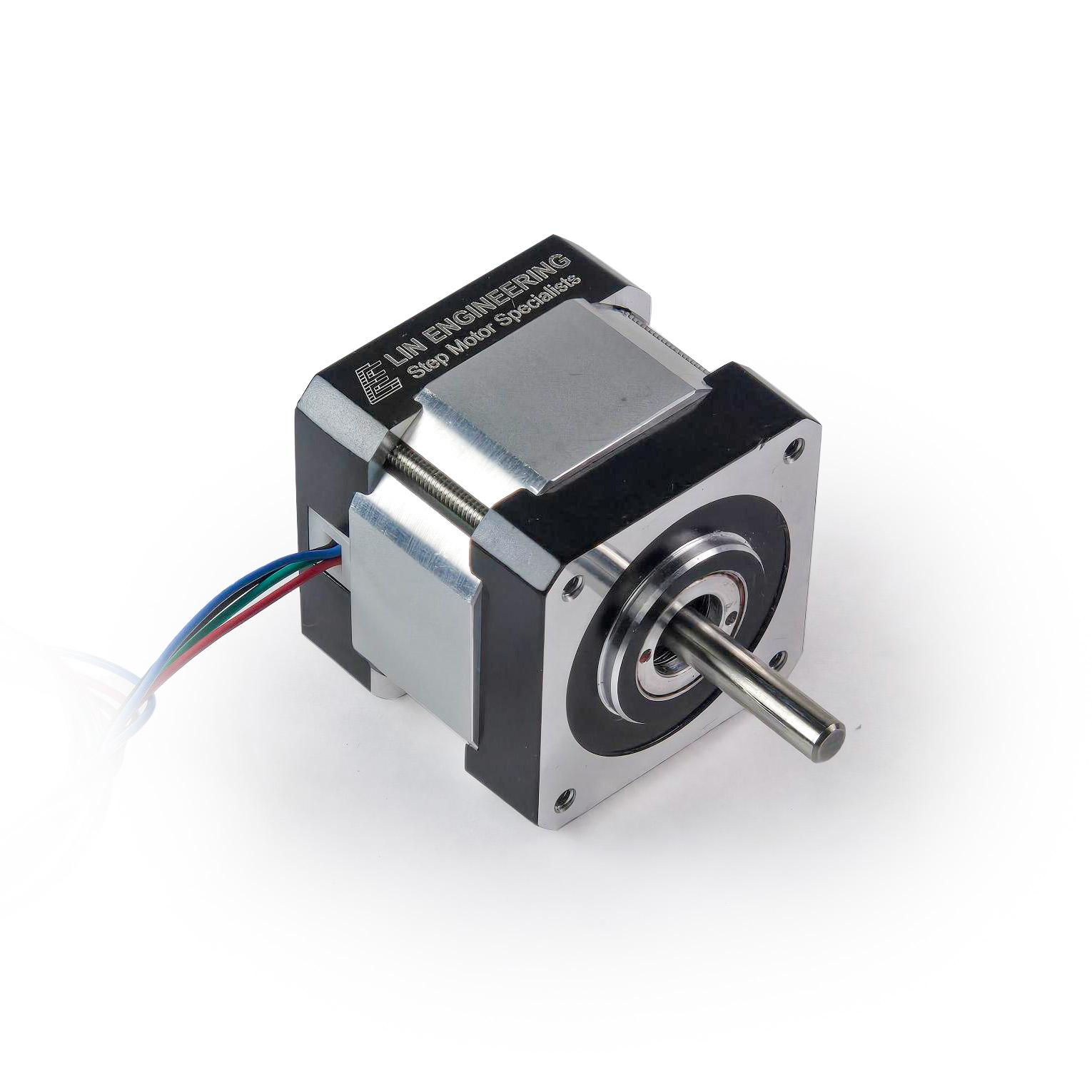

Z417 Series
NEMA 17
Frame Size
NEMA 17 (1.650 in)
Step Angle
0.9°
Length
1.1 to 1.7 in
Holding Torque
11.33 to 28.32 oz-in
Quote
View Series Details

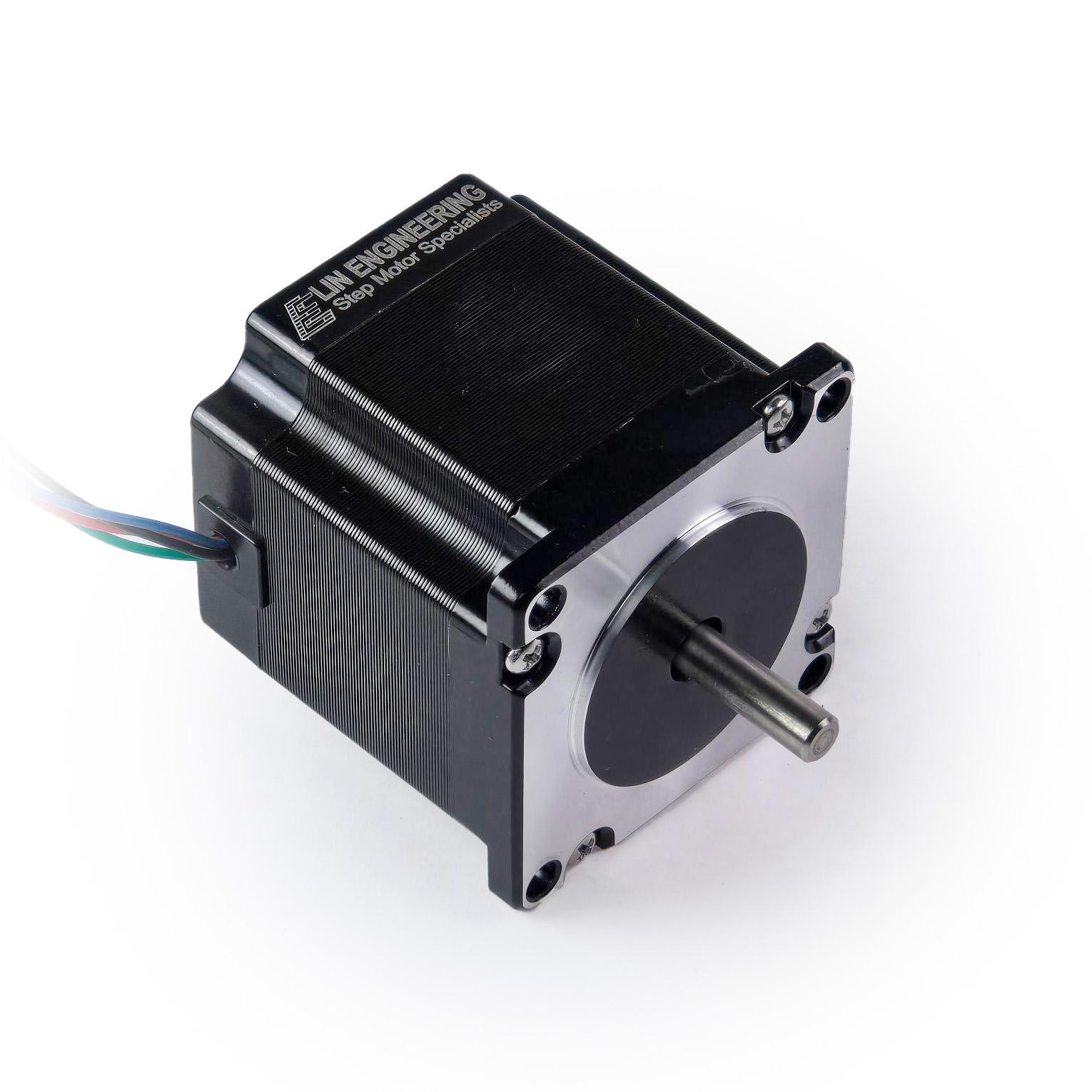

G5709 Series
NEMA 23
Frame Size
NEMA 23 (2.250 in)
Step Angle
0.9°
Length
1.74 to 3.08 in
Holding Torque
83.55 to 270.48 oz-in
Quote
View Series Details
