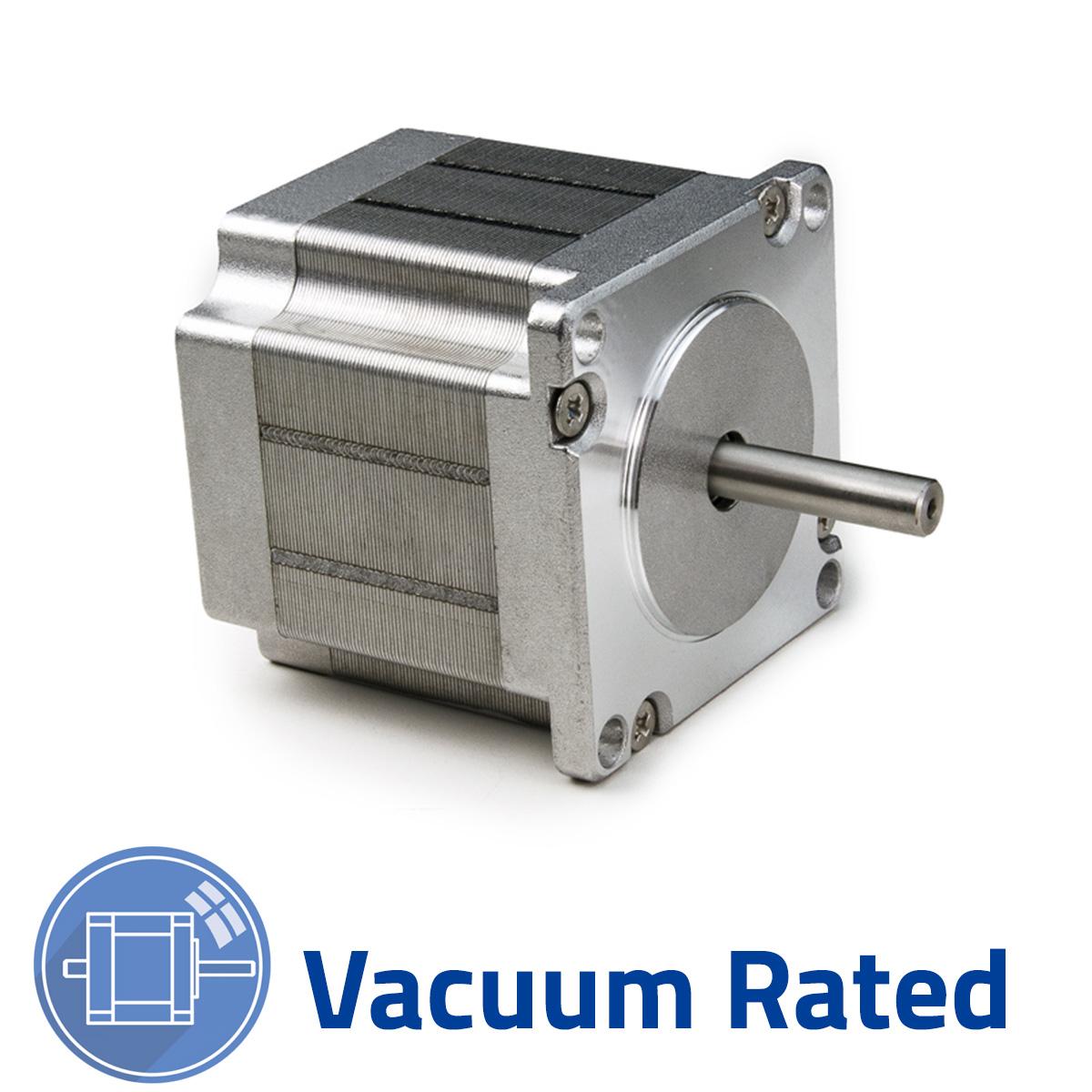

V5718 SeriesHybrid Stepper Motor
Features and Benefits:
- Rated for vacuum up to 10E-7 Torr
- Low outgassing: <1% TML (based on testing)
- Low and high temperature operation of -50C to +100C (optional -70C to 130C)
- Lightweight/high power density
Specifications:
- NEMA 23 (2.250 in) Frame Size
- 1.8° Step Angle
- 1.74 to 3.1 in Length
- 100.54 to 294.55 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V5718L-01P | NEMA 23 | 2.250 in | 1.8° | Parallel | 3.100 in | 2.8 AMP | 294.55 oz-in | 1.1 | 2.6 oz-in² | 2.35 lbs | 4 | Quote |
| V5718L-01S | NEMA 23 | 2.250 in | 1.8° | Series | 3.100 in | 1.4 AMP | 294.55 oz-in | 4.5 | 2.6 oz-in² | 2.35 lbs | 4 | Quote |
| V5718M-02P | NEMA 23 | 2.250 in | 1.8° | Parallel | 2.220 in | 4.2 AMP | 172.77 oz-in | 0.5 | 1.5 oz-in² | 1.501 lbs | 4 | Quote |
| V5718M-02S | NEMA 23 | 2.250 in | 1.8° | Series | 2.220 in | 2.1 AMP | 172.77 oz-in | 1.8 | 1.5 oz-in² | 1.501 lbs | 4 | Quote |
| V5718X-01P | NEMA 23 | 2.250 in | 1.8° | Parallel | 1.740 in | 2.8 AMP | 100.54 oz-in | 0.7 | 0.7 oz-in² | 1.052 lbs | 4 | Quote |
| V5718X-01S | NEMA 23 | 2.250 in | 1.8° | Series | 1.740 in | 1.4 AMP | 100.54 oz-in | 2.8 | 0.7 oz-in² | 1.052 lbs | 4 | Quote |
Torque Curves
Speed
RPM
- V5718L-01P
- V5718L-01S
- V5718M-02P
- V5718M-02S
- V5718X-01P
- V5718X-01S
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| V5718L-01P | 3.100 in |
| V5718L-01S | 3.100 in |
| V5718M-02P | 2.220 in |
| V5718M-02S | 2.220 in |
| V5718X-01P | 1.740 in |
| V5718X-01S | 1.740 in |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 15 lbs |
| Dimension "K" | 0.550 in |
| Max Axial Load | 13 lbs |
| Ambient Temperature | -58 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class H 180 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
