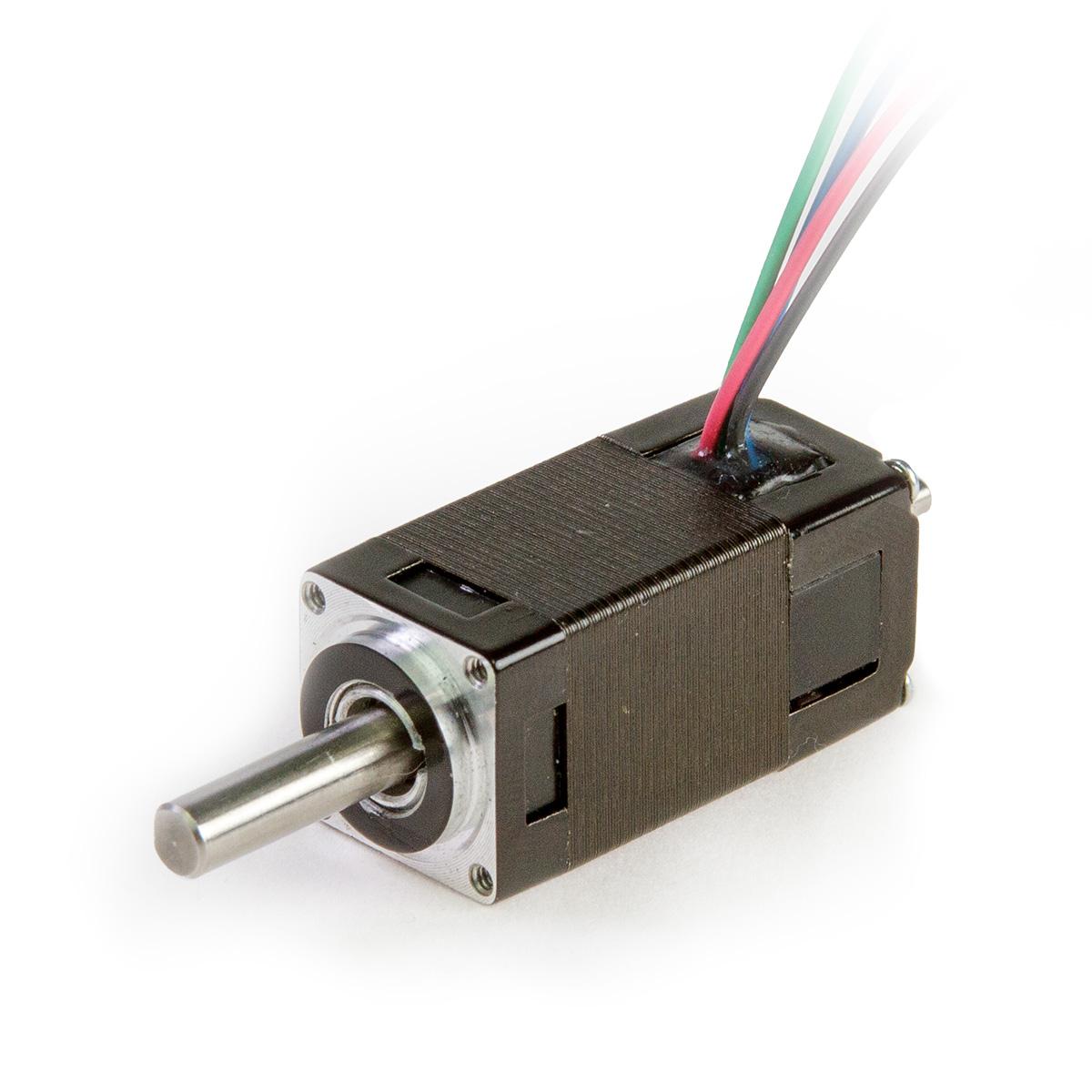

206 SeriesHybrid Stepper Motor
Features and Benefits:
- 14mm frame size
- Fast acceleration/Low inertia
Specifications:
- NEMA 06 (0.550 in) Frame Size
- 1.8° Step Angle
- 1.18 in Length
- 0.91 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 206-12-01 | NEMA 06 | 0.550 in | 1.8° | Bipolar | 1.180 in | 0.3 AMP | 0.91 oz-in | 22 | 0.032 oz-in² | 0.066 lbs | 4 | Online |
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Operating Specifications
| Max Radial Load at Dimension "K" from mounting face | 11.023 lbs |
| Dimension "K" | 0.390 in |
| Max Axial Load | 2.205 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less |
| Magnet Wire Insulation | Class B 130 |
| Insulation Resistance | 100M at 500 VCD |
| Dielectric Strength | 500VAC for 1min |
Downloads
Motor Numbering System (PDF)
