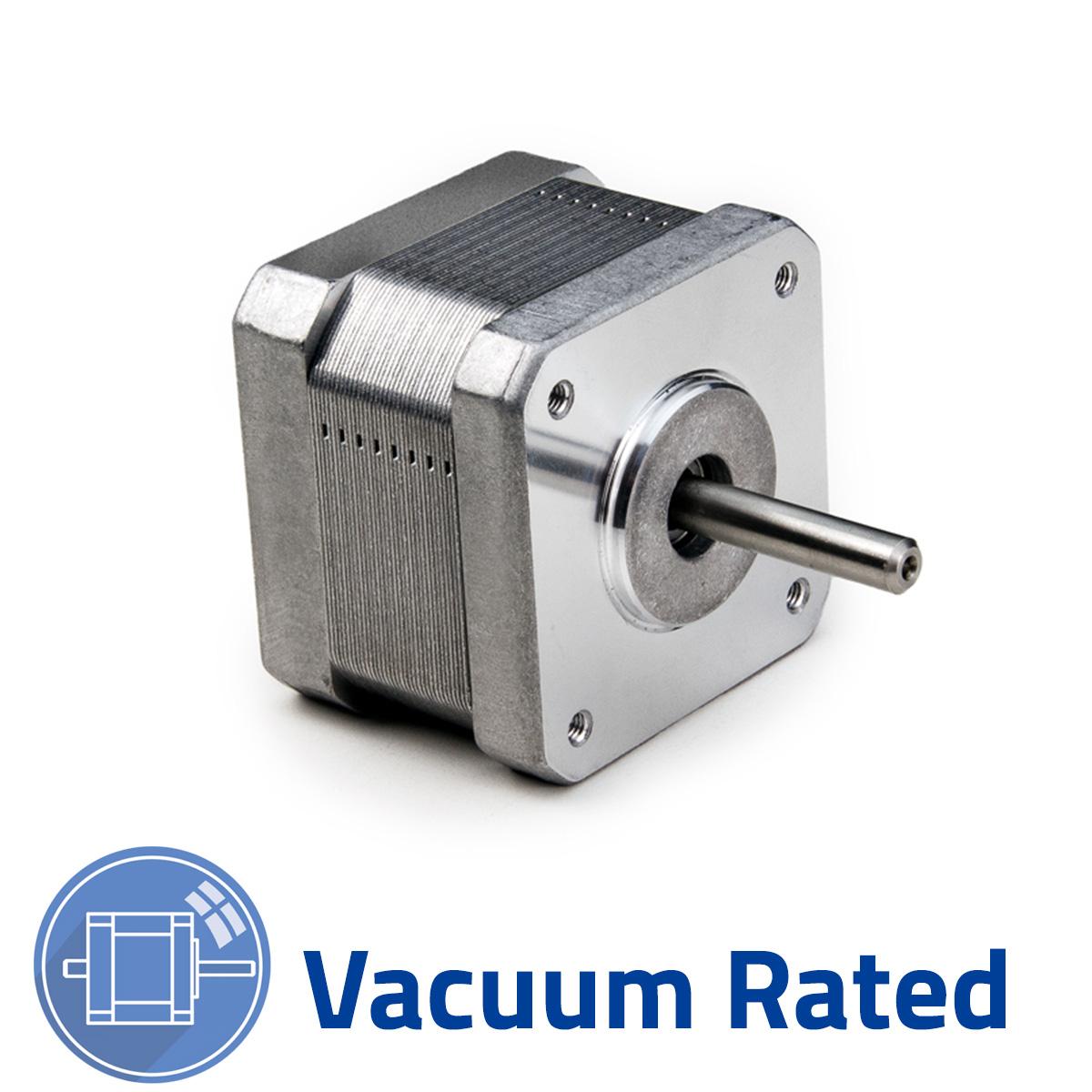

V4118 SeriesHybrid Stepper Motor
Features and Benefits:
- Rated for vacuum up to 10E-7 Torr
- Low outgassing: <1% TML (based on testing)
- Low and high temperature operation of -50C to +100C (optional -70C to 130C)
- Lightweight/high power density
Specifications:
- NEMA 17 (1.670 in) Frame Size
- 1.8° Step Angle
- 1.34 to 2.34 in Length
- 42.48 to 124.62 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V4118C-01 | NEMA 17 | 1.670 in | 1.8° | Bipolar | 2.340 in | 2 AMP | 124.62 oz-in | 2 | 0.56 oz-in² | 0.902 lbs | 4 | Quote |
| V4118L-07P | NEMA 17 | 1.670 in | 1.8° | Parallel | 1.890 in | 2.1 AMP | 83.55 oz-in | 1.3 | 0.37 oz-in² | 0.701 lbs | 4 | Quote |
| V4118L-07S | NEMA 17 | 1.670 in | 1.8° | Series | 1.890 in | 1.05 AMP | 83.55 oz-in | 5.2 | 0.37 oz-in² | 0.701 lbs | 4 | Quote |
| V4118M-06P | NEMA 17 | 1.670 in | 1.8° | Parallel | 1.580 in | 1.4 AMP | 62.31 oz-in | 2.7 | 0.28 oz-in² | 0.602 lbs | 4 | Quote |
| V4118M-06S | NEMA 17 | 1.670 in | 1.8° | Bipolar | 1.580 in | 0.7 AMP | 62.31 oz-in | 10.8 | 0.28 oz-in² | 0.602 lbs | 4 | Quote |
| V4118S-04P | NEMA 17 | 1.670 in | 1.8° | Parallel | 1.340 in | 1.34 AMP | 42.48 oz-in | 2.5 | 0.18 oz-in² | 0.401 lbs | 4 | Quote |
| V4118S-04S | NEMA 17 | 1.670 in | 1.8° | Series | 1.340 in | 0.67 AMP | 42.48 oz-in | 9.9 | 0.18 oz-in² | 0.401 lbs | 4 | Quote |
Torque Curves
Speed
RPM
- V4118C-01
- V4118L-07P
- V4118L-07S
- V4118M-06P
- V4118M-06S
- V4118S-04P
- V4118S-04S
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| V4118C-01 | 2.340 in |
| V4118L-07P | 1.890 in |
| V4118L-07S | 1.890 in |
| V4118M-06P | 1.580 in |
| V4118M-06S | 1.580 in |
| V4118S-04P | 1.340 in |
| V4118S-04S | 1.340 in |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Ambient Temperature | -58 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class H 180 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
