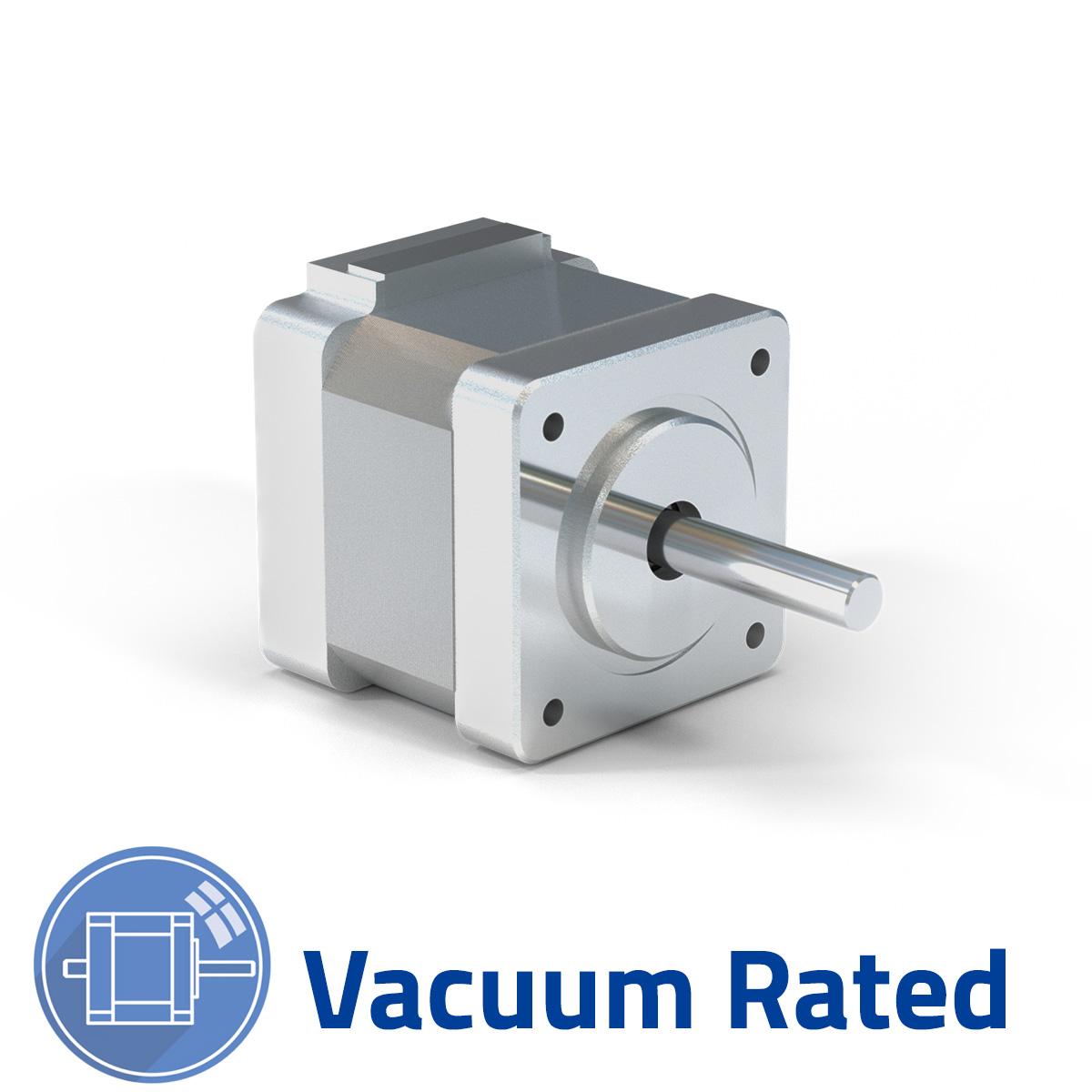

V3518 SeriesHybrid Stepper Motor
Features and Benefits:
- Rated for vacuum up to 10E-7 Torr
- Low outgassing: <1% TML (based on testing)
- Low and high temperature operation of -50C to +100C (optional -70C to 130C)
- Lightweight/high power density
Specifications:
- NEMA 14 (1.390 in) Frame Size
- 1.8° Step Angle
- 1.34 to 2.19 in Length
- 19.83 to 56.64 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V3518L-02 | NEMA 14 | 1.390 in | 1.8° | Bipolar | 2.190 in | 1 AMP | 56.64 oz-in | 5.1 | 0.191 oz-in² | 0.529 lbs | 4 | Quote |
| V3518L-04P | NEMA 14 | 1.390 in | 1.8° | Bipolar | 2.190 in | 2 AMP | 56.64 oz-in | 1.34 | 0.191 oz-in² | 0.529 lbs | 4 | Quote |
| V3518M-07 | NEMA 14 | 1.390 in | 1.8° | Bipolar | 1.340 in | 0.8 AMP | 19.83 oz-in | 7.5 | 0.08 oz-in² | 0.351 lbs | 4 | Quote |
Torque Curves
Speed
RPM
- V3518L-02
- V3518L-04P
- V3518M-07
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Ambient Temperature | -58 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class H 180 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
