3618 SeriesHybrid Stepper Motor
- Stepper + Slim Planetary Gearbox
- Ultra-Slim Profile
- High Torque, Speed, and Efficiency
- NEMA 17 (1.670 in) Frame Size
- 0.18° Step Angle
- 1.02 in Length
- 52.99 to 105.98 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Gear | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3618-012-01-01 | NEMA 17 | 1.670 in | 0.18° | 5:1 | Bipolar | 1.020 in | 1 AMP | 52.99 oz-in | 2.3 | 0.022 oz-in² | 0.41 lbs | 4 | Quote |
| 3618-012-01-05 | NEMA 17 | 1.670 in | 0.2571° | 7:1 | Bipolar | 1.020 in | 1 AMP | 71.94 oz-in | 2.3 | 0.022 oz-in² | 0.41 lbs | 4 | Quote |
| 3618-012-01-06 | NEMA 17 | 1.670 in | 0.36° | 10:1 | Bipolar | 1.020 in | 1 AMP | 105.98 oz-in | 2.3 | 0.022 oz-in² | 0.41 lbs | 4 | Quote |
Torque Curves
Speed
- 3618-012-01-01
- 3618-012-01-05
- 3618-012-01-06
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| 3618-012-01-01 | 1.020 in |
| 3618-012-01-05 | 1.020 in |
| 3618-012-01-06 | 1.020 in |
Operating Specifications
| Max Radial Load at Dimension "K" from mounting face | 19.996 lbs |
| Dimension "K" | 0.200 in |
| Max Axial Load | 49.979 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
Gearbox Specifications
| MAX EFFICIENCY (%) | 90% |
| GEARHEAD INERTIA (oz-in^2) | 4.542 oz-in^2 |
| MAX BACKLASH (arcmin) | +/- 25 arcminutes |
Ultra-slim Profile.
High Torque, Speed, and Efficiency.

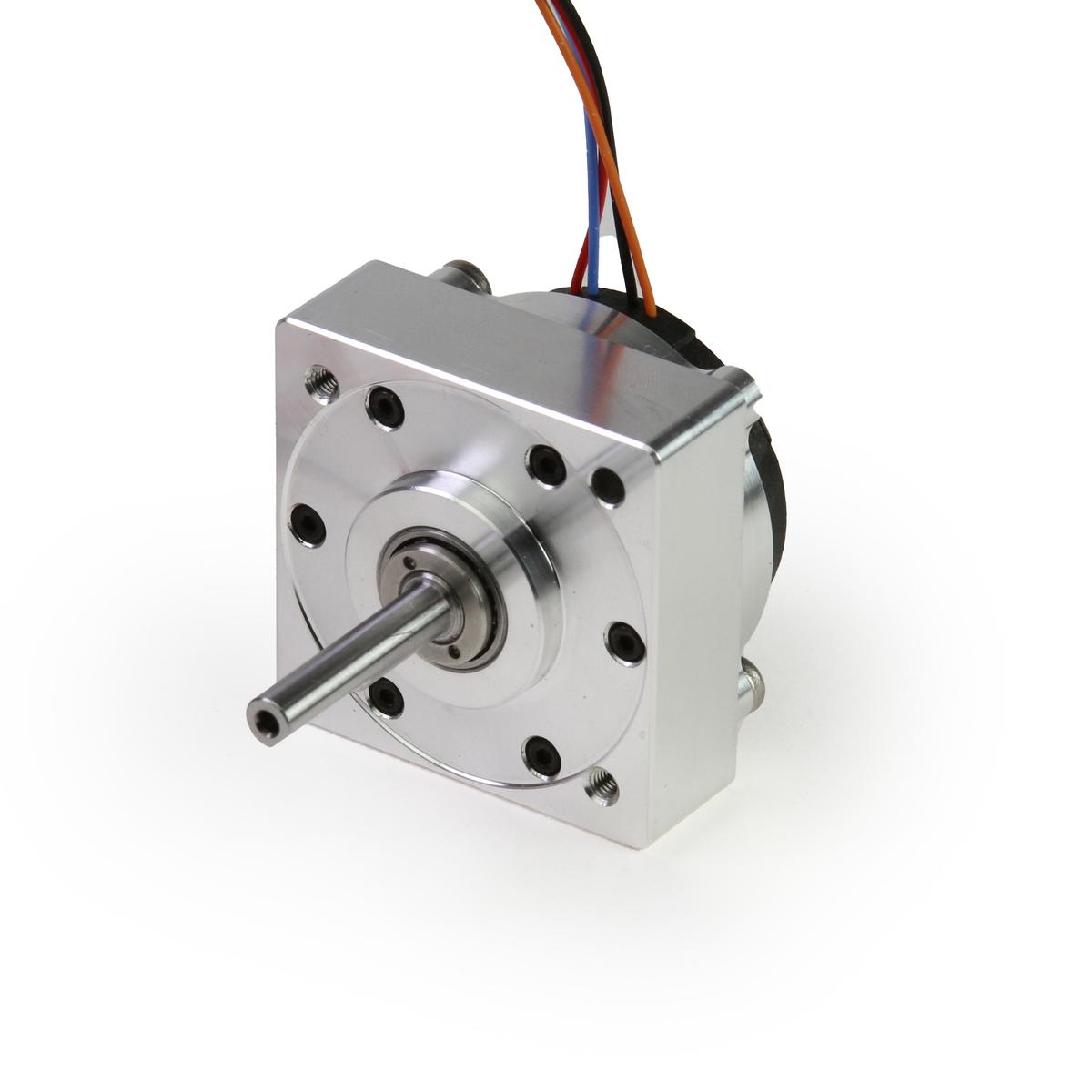

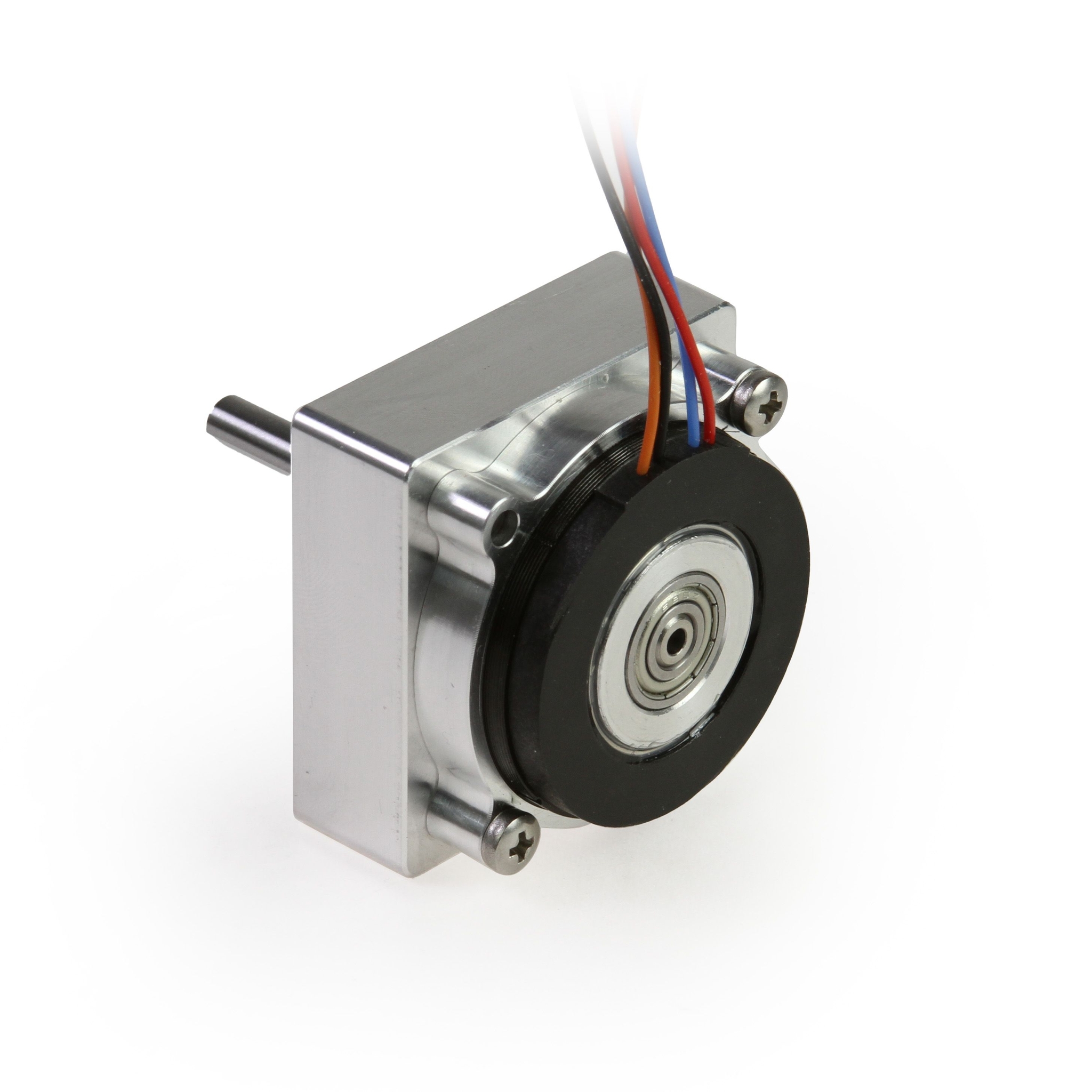

The 3618 from Lin Engineering represents a breakthrough in motor design, combining high-speed functionality with a low-profile form. This high-speed motor, paired with our slim planetary gearbox, provides substantial torque output across a broad speed range while maintaining an ultra-slim profile that sets a new standard in its class. Ideal for applications where space is at a premium but NEMA 17 performance is required, the 3618 offers the same mounting compatibility as standard NEMA 17 motors, delivering exceptional performance in a significantly smaller package. Furthermore, the 3618 is a highly efficient motor, achieving higher torque output with lower power consumption and better thermal capability compared to a standard NEMA 17 motor with similar performance.
The 3618 is versatile, allowing for compatibility with various gearboxes featuring different gear ratios—contact us for more options.
