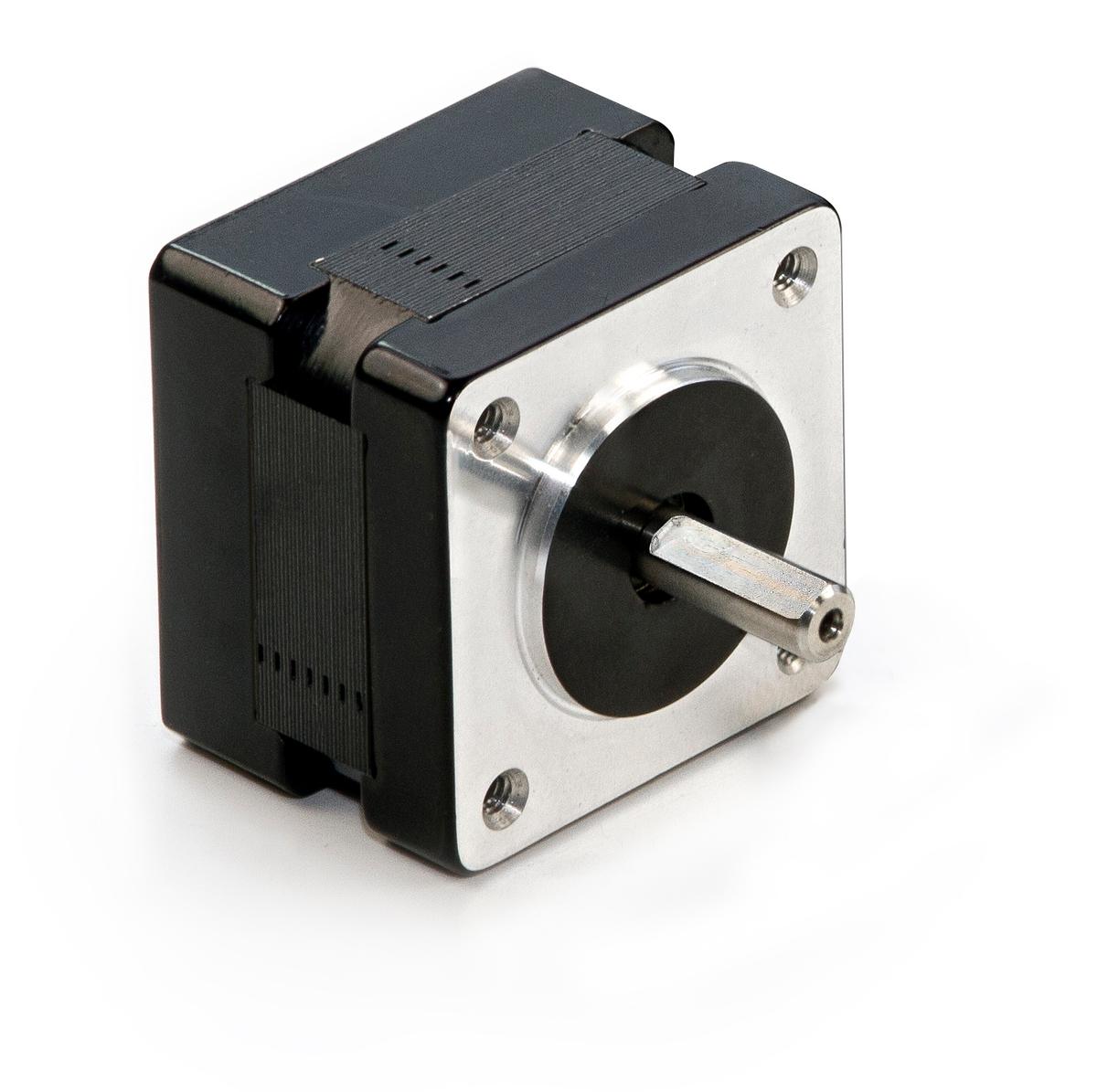

3518 Series - Rapid Prototyping Motors3518X-04Hybrid Stepper Motor
Quick Facts
3518X-04 Hybrid Stepper Motors
- Signature Series Technology for ultimate smooth motion and high accuracy
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| 3518X-04 | 1.020 in |
Torque Curves
Speed
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 3518X-04 |
| Configured Motor Part Number | WO-3518X-04 |
| Step Angle | 1.8° |
| Frame Size | 1.390 in |
| NEMA Size | NEMA 14 |
| Body Length | 1.020 in |
| Current (AMP) | 0.45 AMP |
| Holding Torque | 7.08 oz-in |
| Resistance | 3.8 ohm |
| Rotor Inertia | 0.06 oz-in² |
| Number of leads | 4 |
| Connection | Bipolar |
| Weight | 0.251 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
Customizations & Optimizations
Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Multiple Shaft Options
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Drivers & Controllers, Encoders, Gearboxes & Accessories
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
