5618 Series
5618M-08P
Hybrid Stepper Motor

Name: 5618M-08P
Brand: Lin Engineering
SKU: 5618M-08P
Price: 108.0135 USD
Availability: InStock

Quick Facts

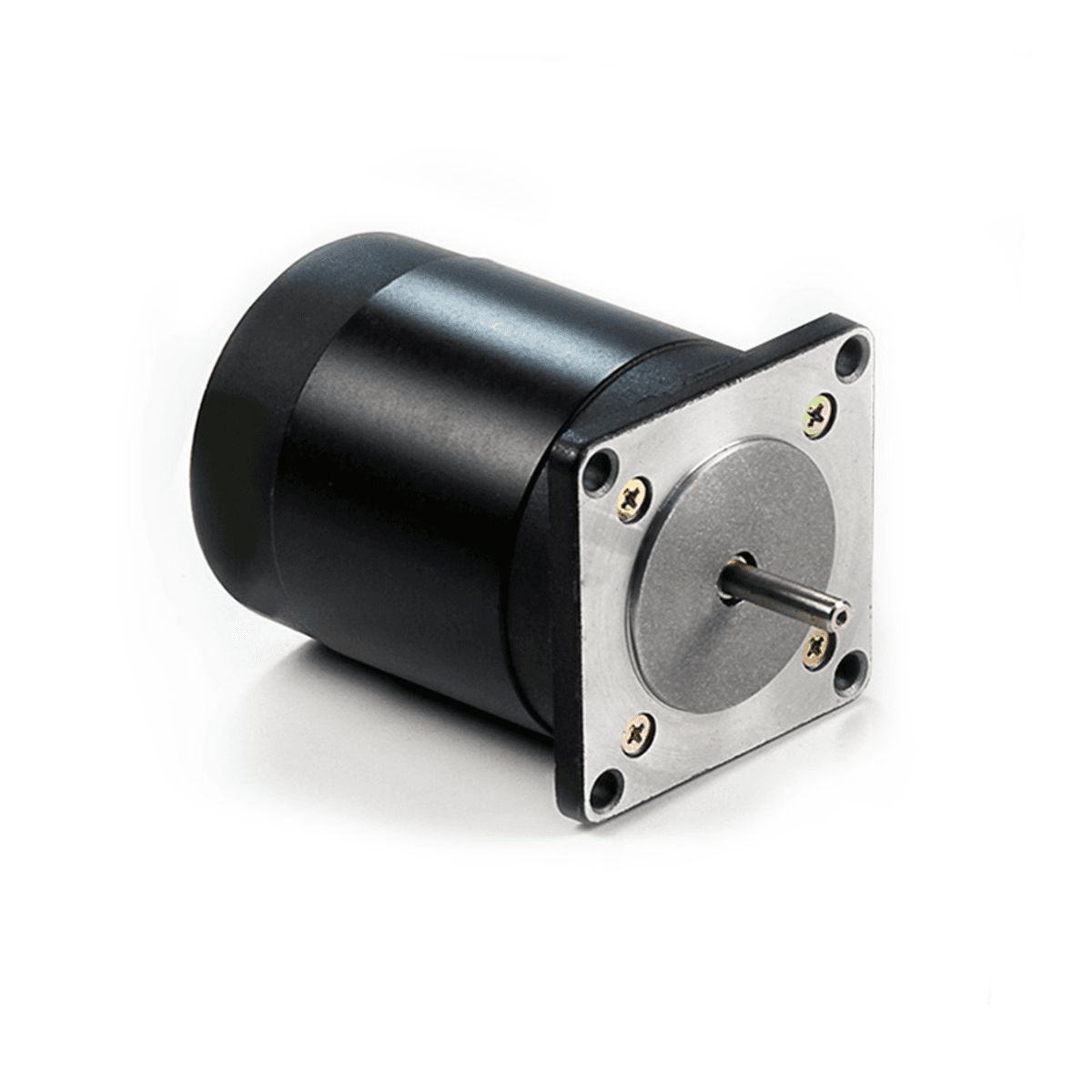

5618M-08P Hybrid Stepper Motors

Specifications:

NEMA 23 (2.250 in) Frame Size
1.8° Step Angle
2.250 in Length
131.7 oz-in Holding Torque

Features and Benefits:

Ideal for high speed applications

Dimensions

Model	DIM. A (length) in
5618M-08P	2.250 in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part Number	5618M-08P
Step Angle	1.8°
Frame Size	2.250 in
NEMA Size	NEMA 23
Body Length	2.250 in
Current (AMP)	3.1 AMP
Holding Torque	131.7 oz-in
Resistance	0.7 ohm
Rotor Inertia	0.74 oz-in²
Number of leads	4
Connection	Parallel
Weight	1.402 lbs

Operating Specifications

Radial Play	0.001 in @ 1 lbs
End Play	0.003 in @ 3 lbs
Shaft Run Out	0.002 TIR
Concentricity of Mounting Pilot to Shaft	0.003 TIR
Perpendicularity of Mounting Pilot to Face	0.003 TIR
Max Radial Load at Dimension "K" from mounting face	15 lbs
Dimension "K"	0.550 in
Max Axial Load	13 lbs
Maximum Case Temperature	176.00 °F maximum
Ambient Temperature	-4 °F to 122.00 °F
Storage Temperature	-4 °F to 212.00 °F
Humidity Range (%)	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

5618 Series

Downloads

5618M-08P Configured Datasheet (PDF)

Motor Numbering System (PDF)

Download

5618M 3D Models (ZIP)
