5618 Series - Rapid Prototyping Motors5618S-01PHybrid Stepper Motor
Quick Facts

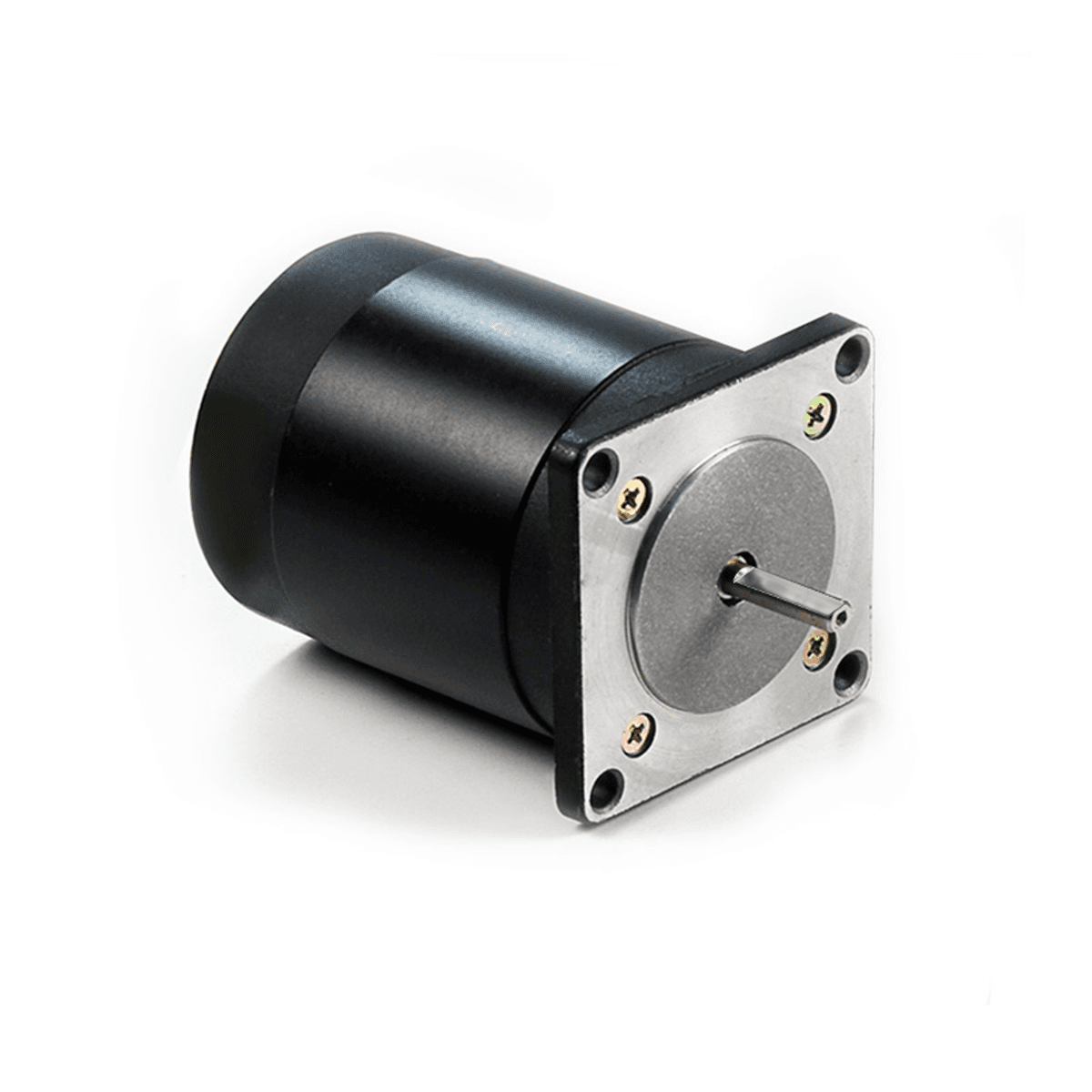

5618S-01P Hybrid Stepper Motors
5618S-01P Hybrid Stepper Motors
Features and Benefits:
- Ideal for high speed applications
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| 5618S-01P | 2.010 in |
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 5618S-01P |
| Configured Motor Part Number | WO-5618S-01P |
| Step Angle | 1.8° |
| Frame Size | 2.250 in |
| NEMA Size | NEMA 23 |
| Body Length | 2.010 in |
| Current (AMP) | 1.4 AMP |
| Holding Torque | 106.21 oz-in |
| Resistance | 2.4 ohm |
| Rotor Inertia | 0.6 oz-in² |
| Number of leads | 4 |
| Connection | Parallel |
| Weight | 1.202 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 15 lbs |
| Dimension "K" | 0.550 in |
| Max Axial Load | 13 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
