ZN417 SeriesZN417-17-01Hybrid Stepper Motor
- NEMA 17 (1.650 in) Frame Size
- 0.9° Step Angle
- 1.700 in Length
- 28.32 oz-in Holding Torque
Dimensions
| Model | DIM. A (length) in |
|---|---|
| ZN417-17-01 | 1.700 in |
Torque Curves
Speed
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | ZN417-17-01 |
| Step Angle | 0.9° |
| Frame Size | 1.650 in |
| NEMA Size | NEMA 17 |
| Body Length | 1.700 in |
| Current (AMP) | 0.5 AMP |
| Holding Torque | 28.32 oz-in |
| Resistance | 18.2 ohm |
| Rotor Inertia | 0.14 oz-in² |
| Number of leads | 4 |
| Connection | bipolar |
| Weight | 0.531 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
Features and Benefits
We’ve Reinvented the Step Motor

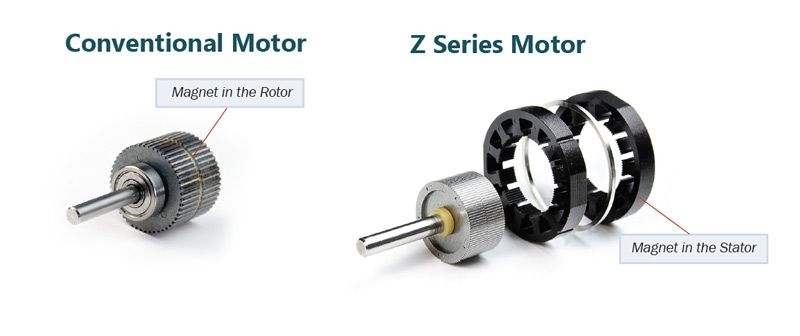

Conventional hybrid stepper motor utilizes a permanent magnet in the rotor. Our patented design uses a ring magnet in the stator instead. This drastically reduces the detent torque (unenergized drag torque) because the magnetic flux path is able to reach over the stator windings and go through only the outer edge of the rotor. Reducing detent torque improves accuracy, smooth operation and reduces noise. Best of all, modifying the magnet location does not change the dynamic torque.

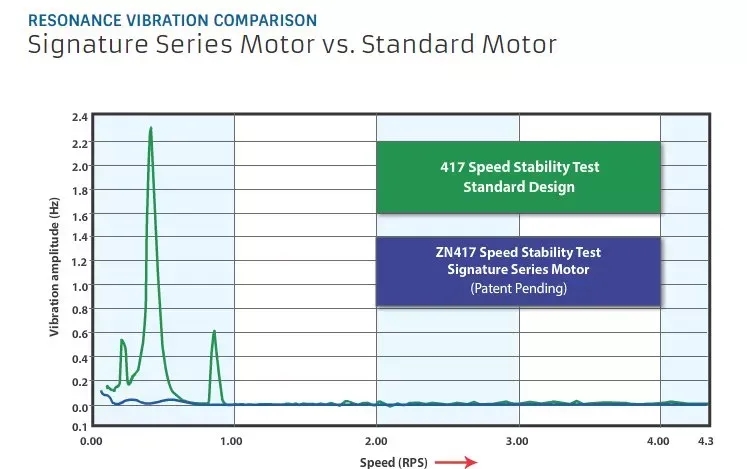

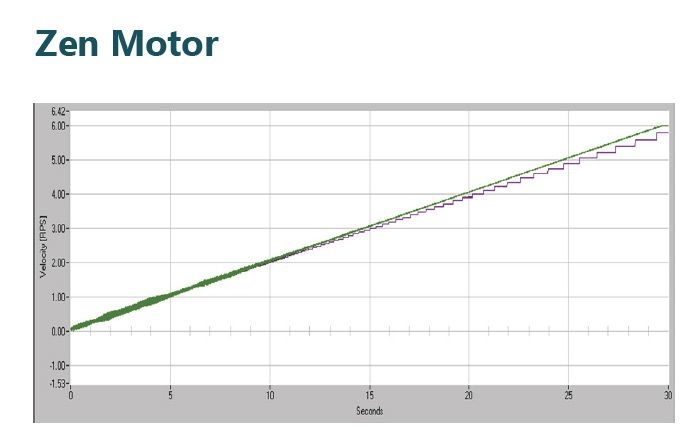

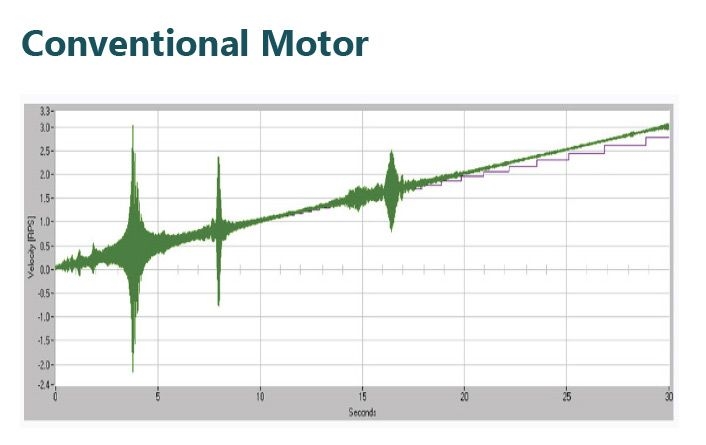

Zen technology significantly reduces vibration without the use of external dampers: this results in extremely smooth and accurate motion.

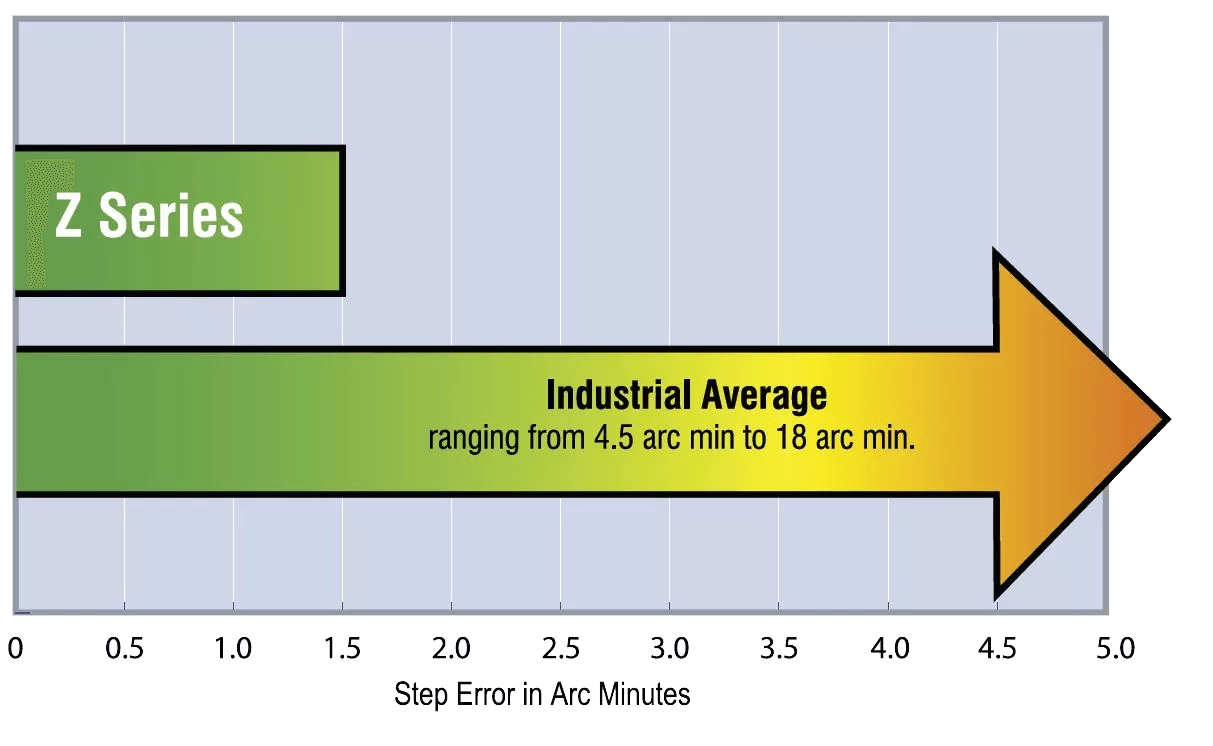

Extreme accuracy
Z-Series motor maintains ±1.5 arc minutes error under 64x microstepping. Industry average can range from ±4.5 to ±18 arc minutes in 0.9° step motors.
Quiet Operation
By eliminating detent torque, the motor operates substantially quieter than regular hybrid stepper motor.
Application
Vibration can cause serious problems when smooth and precise motion is critical. This is especially the case in the semiconductor industry where assemblies are getting exponentially smaller or medial applications where precision and accuracy could literally be a life or death matter.
Precision surgical
equipment
Semiconductor
Manufacturing
Video Overview
Customizations
Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Multiple Shaft Options
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Drivers & Controllers, Encoders, Gearboxes & Accessories
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
