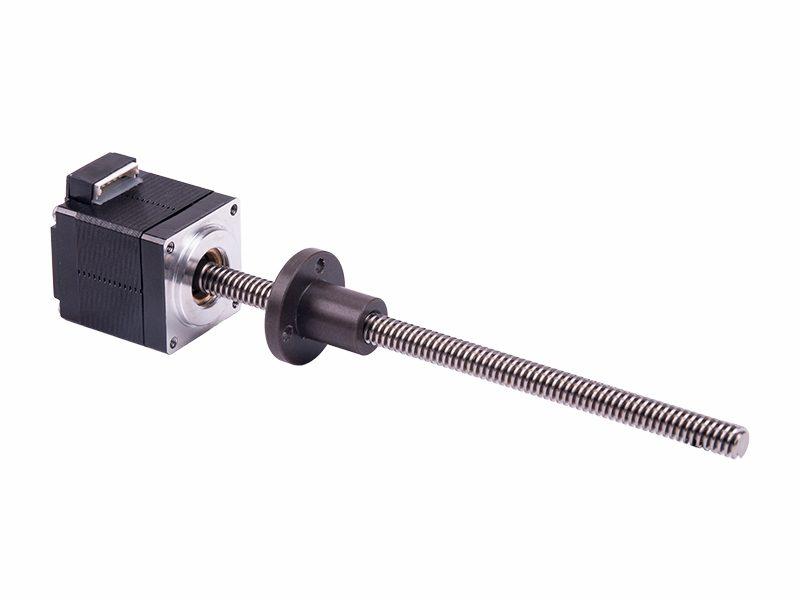

LE11 SERIESLE11S1100-E06063-200N-AR
Motor Configuration:
Screw
Ø: 0.250 in Lead: 0.250 in (E06063)
Screw Length
Screw End Finish
No End Finish
Nut
Circular Flange (AR)
Unit Price:
$161.70
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LE11S1100-E06063-200N-AR
Looking For Higher Volume?
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
| Motor Frame Size | 1.110 in |
| Motor Length | 1.260 in |
| Rated Current | 1 AMP |
| Motor Step Angle | 1.8° |
| Screw Lead | 0.250 in |
| Screw Diameter | 0.250 in |
| Screw Length | 7.870 in |
| Linear Travel Per Step | 0 in |
| Resistance | 2.7 ohm |
| Rotor Inertia | 0.049 oz-in² |
| Winding | bipolar |
| Weight | 0.099 lbs |
Motor Dimensions
| Dimension A | 1.260 in |
| Dimension L (Lx + Lu) | 7.870 in (±0.060 in) |
Performance Chart
LE11S1100 with E06063 screw
24 VDC, 1 AMP/Phase
Nut Dimension
| Title | AR |
| Flange Type | Circular Flange |
| Nut Style | Free Running |
Leadscrew End Finish (Front)
No End Finish
| Dimensions | N/A |
Downloads
LE11S1100-E06063-200N-AR Configured Datasheet (PDF)
