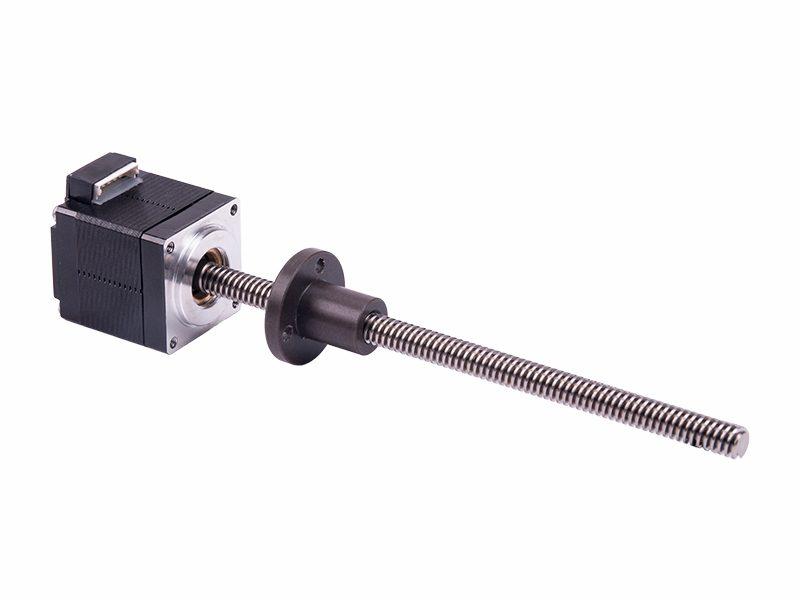

LE11 SERIESLE11S5100-E06063-200N-AR
Motor Configuration:
Screw
Ø: 0.250 in Lead: 0.250 in (E06063)
Screw Length
Screw End Finish
No End Finish
Nut
Circular Flange (AR)
Unit Price:
$172.70
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LE11S5100-E06063-200N-AR
Looking For Higher Volume?
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
Motor Frame Size | 1.110 in |
Motor Length | 2.050 in |
Rated Current | 1 AMP |
Motor Step Angle | 1.8° |
Screw Lead | 0.250 in |
Screw Diameter | 0.250 in |
Screw Length | 7.870 in |
Linear Travel Per Step | 0 in |
Resistance | 3.7 ohm |
Rotor Inertia | 0.098 oz-in² |
Winding | bipolar |
Weight | 0.5 lbs |
Motor Dimensions
Dimension A | 2.050 in |
Dimension L (Lx + Lu) | 7.870 in (±0.060 in) |
![Dimensions](https://lin-product-images.s3.amazonaws.com/1663784802788-N11-FRONT-LINEAR-LE-PIN.png)
![Dimensions](https://lin-product-images.s3.amazonaws.com/1661156252702-N11-SIDE-LINEAR-LE.png)
Performance Chart
LE11S5100 with E06063 screw
24 VDC, 1 AMP/Phase
Nut Dimension
Title | AR |
Flange Type | Circular Flange |
Nut Style | Free Running |
![Dimensions](https://lin-product-images.s3.amazonaws.com/1661156253268-Nut-AR1-Dimension-e1540833973282-1024x550.png)
Leadscrew End Finish (Front)
No End Finish
Dimensions | N/A |
![Dimensions](https://lin-web.s3.us-west-2.amazonaws.com/images/rapid-prototype-configurator/NO-MOD-END-FINISH-LINEAR-LE.png)
Downloads
LE11S5100-E06063-200N-AR Configured Datasheet (PDF)
