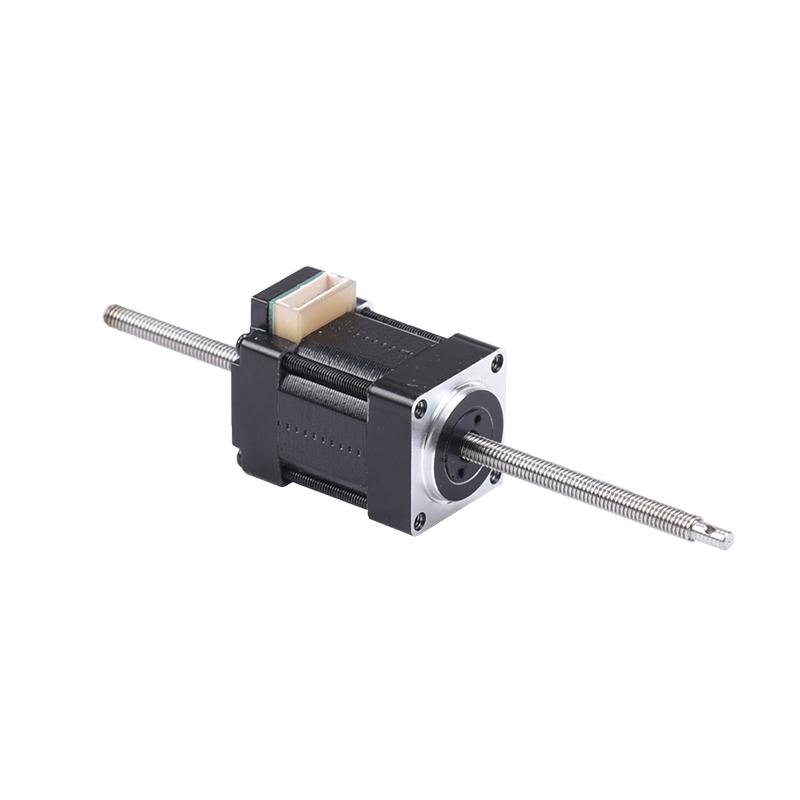

LN08 Series
Features and Benefits:
- Internal Nut: Non-Captive Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 08 (0.790 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.16 in Motor Length
- 0.024 to 0.096 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LN08S1050-E03006-200MN | 0.790 in | 1.160 in | 0.5 AMP | 0.024 in | 0.140 in | 0.00012 in | Online |
| LN08S1050-E03024-200MN | 0.790 in | 1.160 in | 0.5 AMP | 0.096 in | 0.140 in | 0.00048 in | Online |
Performance Chart
- LN08S1050-E03006-200MN
- LN08S1050-E03024-200MN
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LN08S1050-E03006-200MN | 1.160 in |
| LN08S1050-E03024-200MN | 1.160 in |
