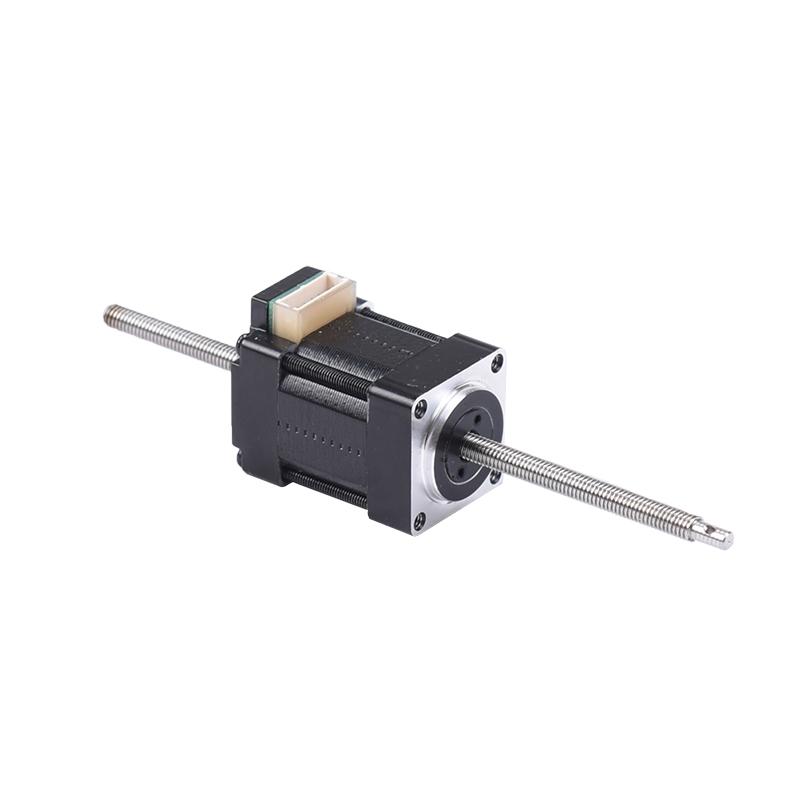

LN08 SERIES
LN08S1050-E03006-200MN

Motor Configuration:

Screw

Ø: 0.140 in Lead: 0.024 in (E03006)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$137.77

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

LN08S1050-E03006-200MN

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size0.790 in
Motor Length1.160 in
Rated Current0.5 AMP
Motor Step Angle1.8°
Screw Lead0.024 in
Screw Diameter0.140 in
Screw Length7.870 in
Linear Travel Per Step0 in
Resistance8.6 ohm
Rotor Inertia0.009 oz-in²
Windingbipolar
Weight0.088 lbs

Motor Dimensions

Dimension A1.160 in
Dimension L (Lx + Lu)7.870 in (±0.060 in)

Performance Chart

LN08S1050 with E03006 screw
24 VDC, 0.5 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U0.236 in
Dimension TM2x0.4

Leadscrew End Finish (Back)

No End Finish

DimensionsN/A

Downloads

LN08S1050-E03006-200MN Configured Datasheet (PDF)
