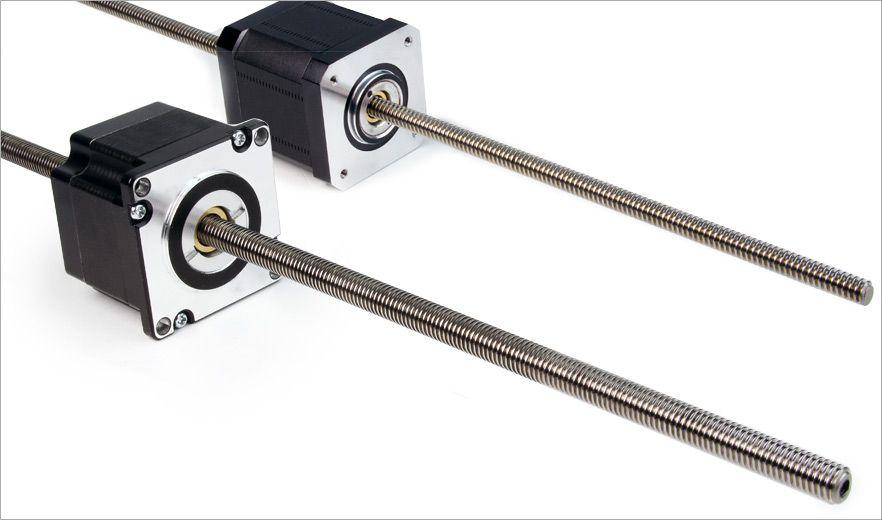

non captive actuators

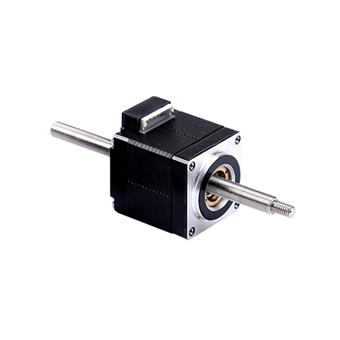

Frame Size

NEMA 08 (0.790 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.16 in

Screw Lead

0.024 to 0.096 in

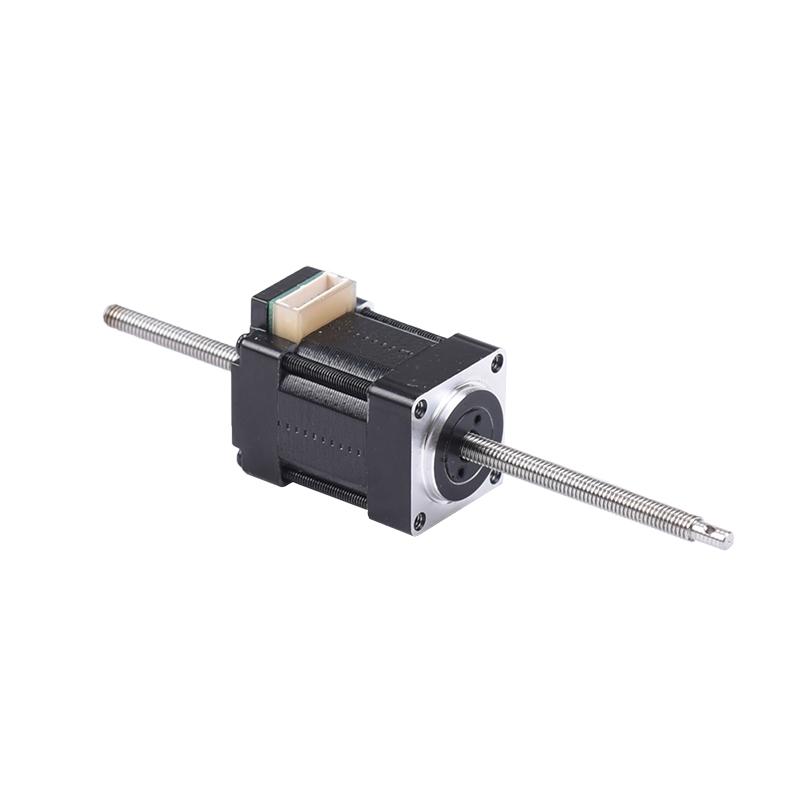

Frame Size

NEMA 11 (1.110 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.26 in

Screw Lead

0.025 to 0.1 in

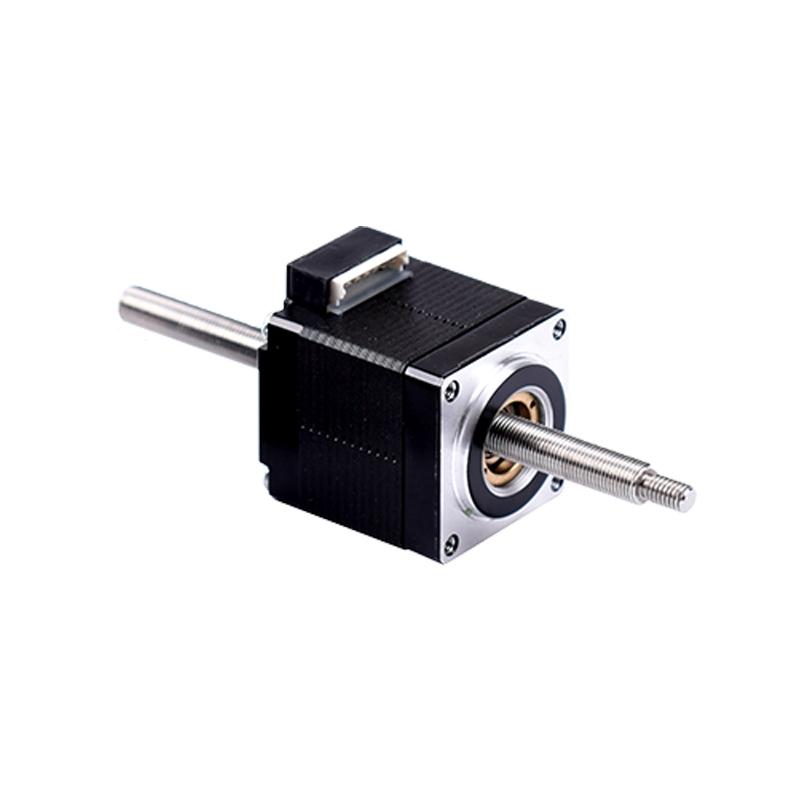

Frame Size

NEMA 14 (1.390 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.38 in

Screw Lead

0.031 to 0.5 in

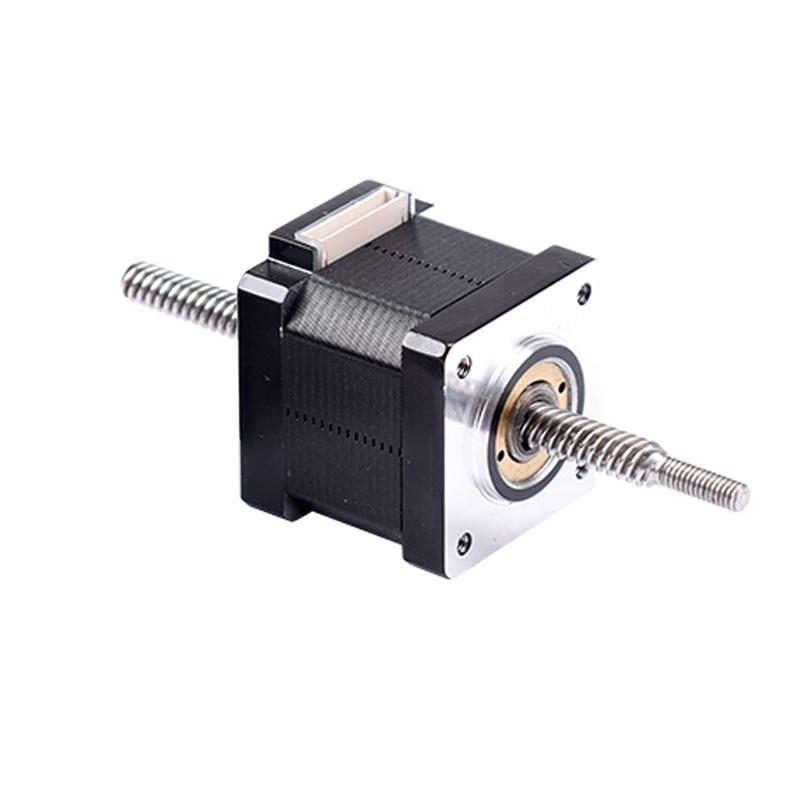

Frame Size

NEMA 17 (1.670 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.35 to 1.9 in

Screw Lead

0.031 to 0.5 in

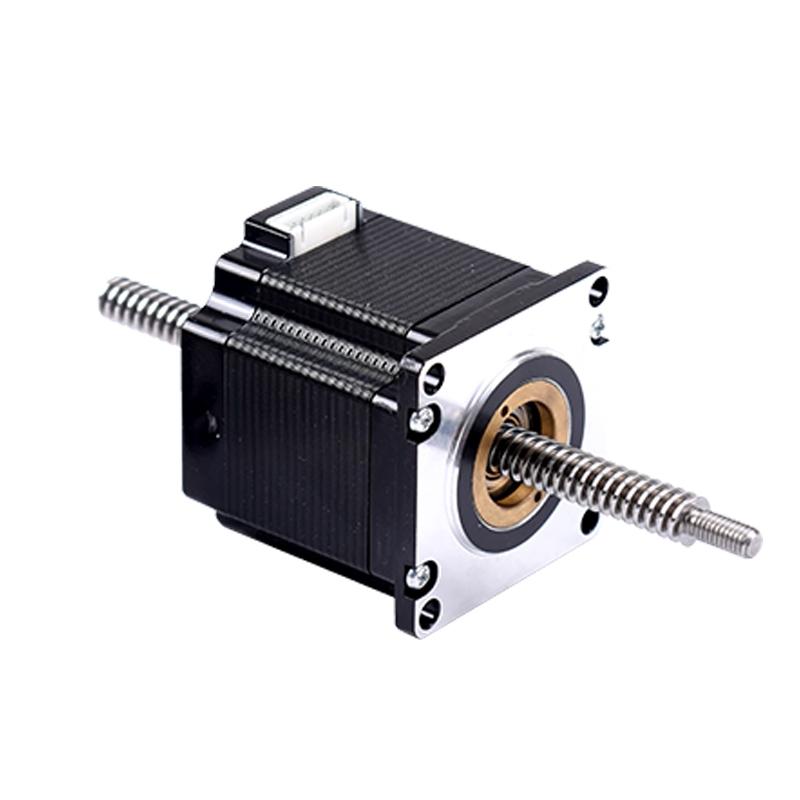

Frame Size

NEMA 23 (2.220 in)

Step Angle Stepper Motor

1.8°

Motor Length

1.77 to 3.11 in

Screw Lead

0.2 to 0.4 in
