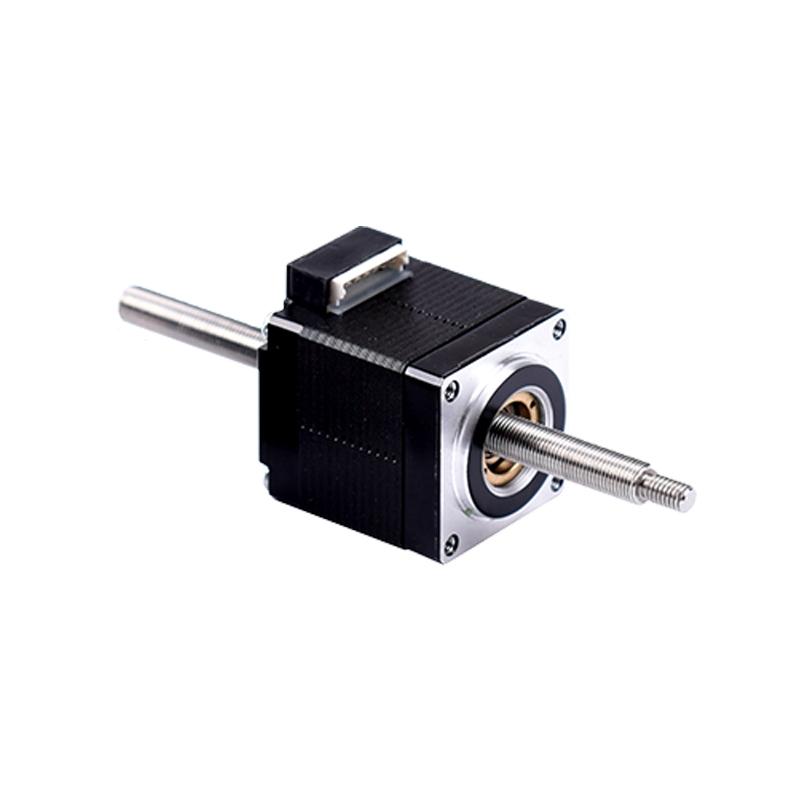

LN11 Series
Features and Benefits:
- Internal Nut: Non-Captive Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 11 (1.110 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.26 in Motor Length
- 0.025 to 0.1 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LN11S1050-E04006-200MN | 1.110 in | 1.260 in | 0.5 AMP | 0.025 in | 0.180 in | 0.00013 in | Online |
| LN11S1050-E04025-200MN | 1.110 in | 1.260 in | 0.5 AMP | 0.100 in | 0.180 in | 0.0005 in | Online |
| LN11S1067-E04006-200MN | 1.110 in | 1.260 in | 0.67 AMP | 0.025 in | 0.180 in | 0.00013 in | Online |
| LN11S1067-E04025-200MN | 1.110 in | 1.260 in | 0.67 AMP | 0.100 in | 0.180 in | 0.0005 in | Online |
| LN11S1100-E04006-200MN | 1.110 in | 1.260 in | 1 AMP | 0.025 in | 0.180 in | 0.00013 in | Online |
| LN11S1100-E04025-200MN | 1.110 in | 1.260 in | 1 AMP | 0.100 in | 0.180 in | 0.0005 in | Online |
Performance Chart
- LN11S1050-E04006-200MN
- LN11S1050-E04025-200MN
- LN11S1067-E04006-200MN
- LN11S1067-E04025-200MN
- LN11S1100-E04006-200MN
- LN11S1100-E04025-200MN
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LN11S1050-E04006-200MN | 1.260 in |
| LN11S1050-E04025-200MN | 1.260 in |
| LN11S1067-E04006-200MN | 1.260 in |
| LN11S1067-E04025-200MN | 1.260 in |
| LN11S1100-E04006-200MN | 1.260 in |
| LN11S1100-E04025-200MN | 1.260 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
