Part Number

LN11S1067-E04025-200MN

Motor Configuration:

Screw

Ø: 0.180 in Lead: 0.100 in (E04025)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$128.70

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

QTY

Looking For Higher Volume?

LN11 SERIES

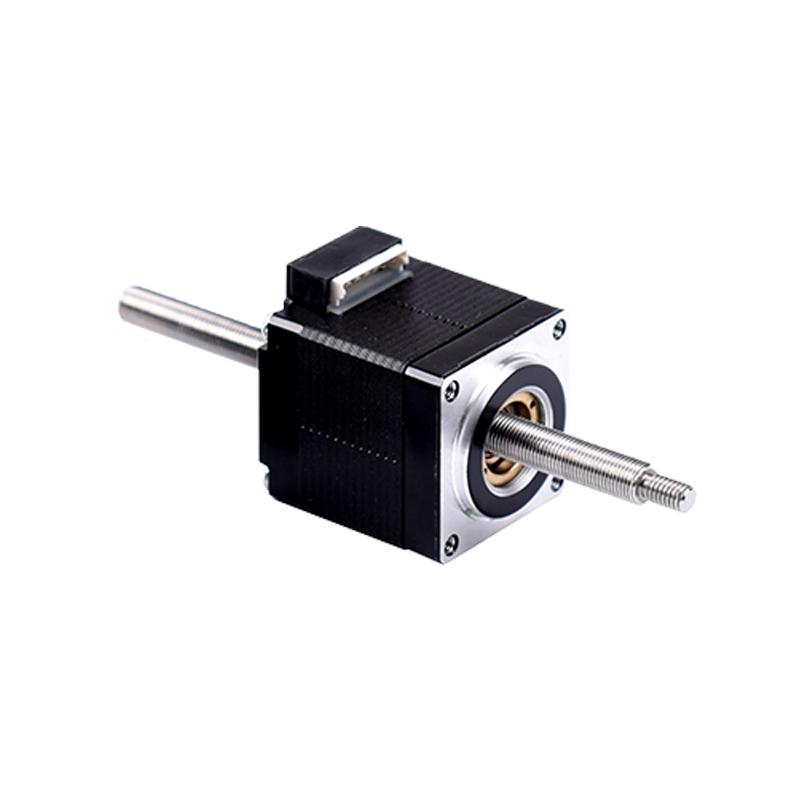

LN11S1067-E04025-200MN

Name: LN11S1067-E04025-200MN
Brand: Lin Engineering
SKU: LN11S1067-E04025-200MN
Price: 128.7022 USD
Availability: InStock

Quick Facts

LN11S1067-E04025-200MN LN

Features and Benefits:

Internal Nut: Non-Captive Configuration
Multiple Lead screw options available
Fast lead times and delivery

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure

Configure your motor using the online configuration tool.

Test

Start testing within your application with minimum downtime.

Iterate

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size	1.110 in
Motor Length	1.260 in
Rated Current	0.67 AMP
Motor Step Angle	1.8°
Screw Lead	0.100 in
Screw Diameter	0.180 in
Screw Length	7.870 in
Linear Travel Per Step	0 in
Resistance	6.1 ohm
Rotor Inertia	0.049 oz-in²
Winding	bipolar
Weight	0.22 lbs

Motor Dimensions

Dimension A	1.260 in
Dimension L (Lx + Lu)	7.870 in (±0.060 in)

Performance Chart

LN11S1067 with E04025 screw

24 VDC, 0.67 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U	0.236 in
Dimension T	M3X0.5

Leadscrew End Finish (Back)
