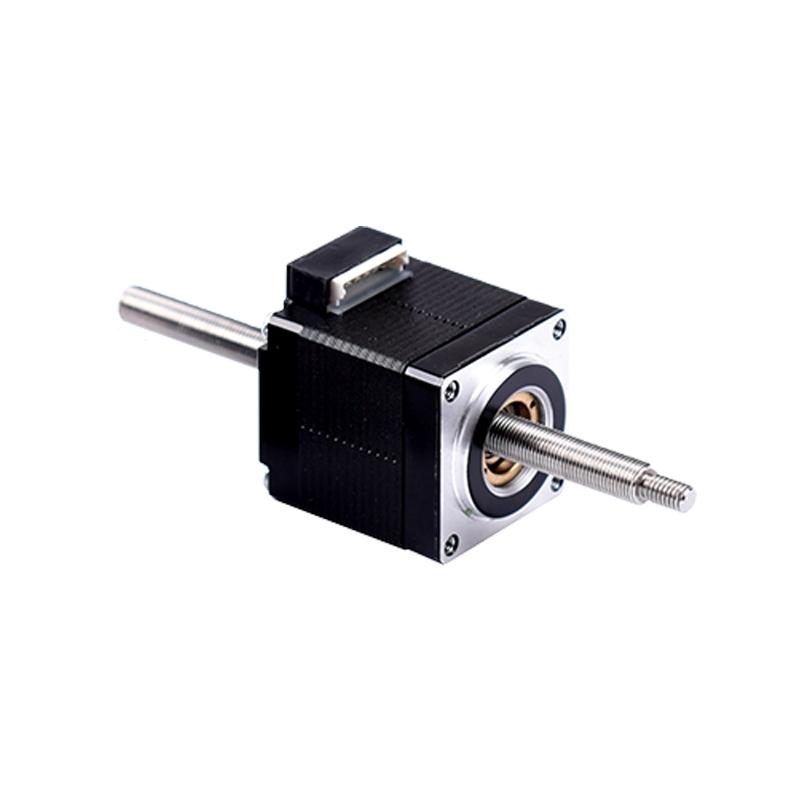

LN11 SERIESLN11S1050-E04025-200MN
Screw
Ø: 0.180 in Lead: 0.100 in (E04025)
Screw Length
Screw End Finish (front)
Metric Threaded End
Screw End Finish (back)
No End Finish
Unit Price:
$128.70
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LN11S1050-E04025-200MN
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
| Motor Frame Size | 1.110 in |
| Motor Length | 1.260 in |
| Rated Current | 0.5 AMP |
| Motor Step Angle | 1.8° |
| Screw Lead | 0.100 in |
| Screw Diameter | 0.180 in |
| Screw Length | 7.870 in |
| Linear Travel Per Step | 0 in |
| Resistance | 10.9 ohm |
| Rotor Inertia | 0.049 oz-in² |
| Winding | bipolar |
| Weight | 0.22 lbs |
Motor Dimensions
| Dimension A | 1.260 in |
| Dimension L (Lx + Lu) | 7.870 in (±0.060 in) |
Performance Chart
LN11S1050 with E04025 screw
24 VDC, 0.5 AMP/Phase
Leadscrew End Finish (Front)
Metric Threaded End
| Dimension U | 0.236 in |
| Dimension T | M3X0.5 |
Leadscrew End Finish (Back)
No End Finish
| Dimensions | N/A |
Downloads
LN11S1050-E04025-200MN Configured Datasheet (PDF)
