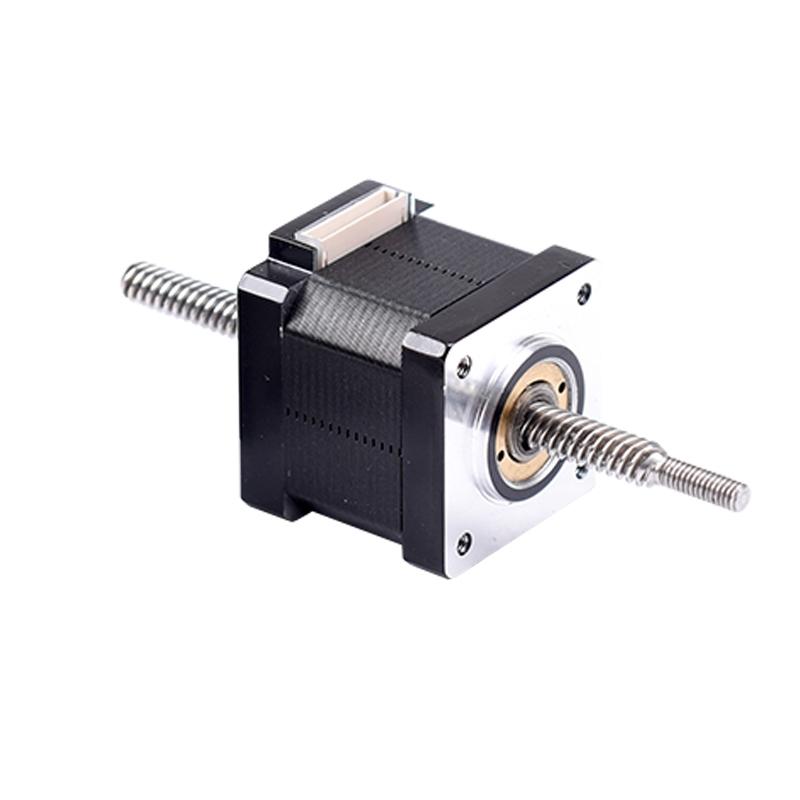

LN14 Series
Features and Benefits:
- Internal Nut: Non-Captive Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 14 (1.390 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.38 in Motor Length
- 0.031 to 0.5 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LN14S3050-E06008-300MN | 1.390 in | 1.380 in | 0.5 AMP | 0.031 in | 0.250 in | 0.00015 in | Online |
| LN14S3050-E06063-300MN | 1.390 in | 1.380 in | 0.5 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LN14S3050-E06127-300MN | 1.390 in | 1.380 in | 0.5 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LN14S3050-W0601-300MN | 1.390 in | 1.380 in | 0.5 AMP | 0.039 in | 0.240 in | 0.00019 in | Online |
| LN14S3100-E06008-300MN | 1.390 in | 1.380 in | 1 AMP | 0.031 in | 0.250 in | 0.00015 in | Online |
| LN14S3100-E06063-300MN | 1.390 in | 1.380 in | 1 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LN14S3100-E06127-300MN | 1.390 in | 1.380 in | 1 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LN14S3100-W0601-300MN | 1.390 in | 1.380 in | 1 AMP | 0.039 in | 0.240 in | 0.00019 in | Online |
| LN14S3150-E06008-300MN | 1.390 in | 1.380 in | 1.5 AMP | 0.031 in | 0.250 in | 0.00015 in | Online |
| LN14S3150-E06063-300MN | 1.390 in | 1.380 in | 1.5 AMP | 0.250 in | 0.250 in | 0.00125 in | Online |
| LN14S3150-E06127-300MN | 1.390 in | 1.380 in | 1.5 AMP | 0.500 in | 0.250 in | 0.0025 in | Online |
| LN14S3150-W0601-300MN | 1.390 in | 1.380 in | 1.5 AMP | 0.039 in | 0.240 in | 0.00019 in | Online |
Performance Chart
- LN14S3050-E06008-300MN
- LN14S3050-E06063-300MN
- LN14S3050-E06127-300MN
- LN14S3050-W0601-300MN
- LN14S3100-E06008-300MN
- LN14S3100-E06063-300MN
- LN14S3100-E06127-300MN
- LN14S3100-W0601-300MN
- LN14S3150-E06008-300MN
- LN14S3150-E06063-300MN
- LN14S3150-E06127-300MN
- LN14S3150-W0601-300MN
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LN14S3050-E06008-300MN | 1.380 in |
| LN14S3050-E06063-300MN | 1.380 in |
| LN14S3050-E06127-300MN | 1.380 in |
| LN14S3050-W0601-300MN | 1.380 in |
| LN14S3100-E06008-300MN | 1.380 in |
| LN14S3100-E06063-300MN | 1.380 in |
| LN14S3100-E06127-300MN | 1.380 in |
| LN14S3100-W0601-300MN | 1.380 in |
| LN14S3150-E06008-300MN | 1.380 in |
| LN14S3150-E06063-300MN | 1.380 in |
| LN14S3150-E06127-300MN | 1.380 in |
| LN14S3150-W0601-300MN | 1.380 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
