Part Number

LN14S3150-W0601-300MN

Motor Configuration:

Screw

Ø: 0.240 in Lead: 0.039 in (W0601)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$132.08

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

QTY

Looking For Higher Volume?

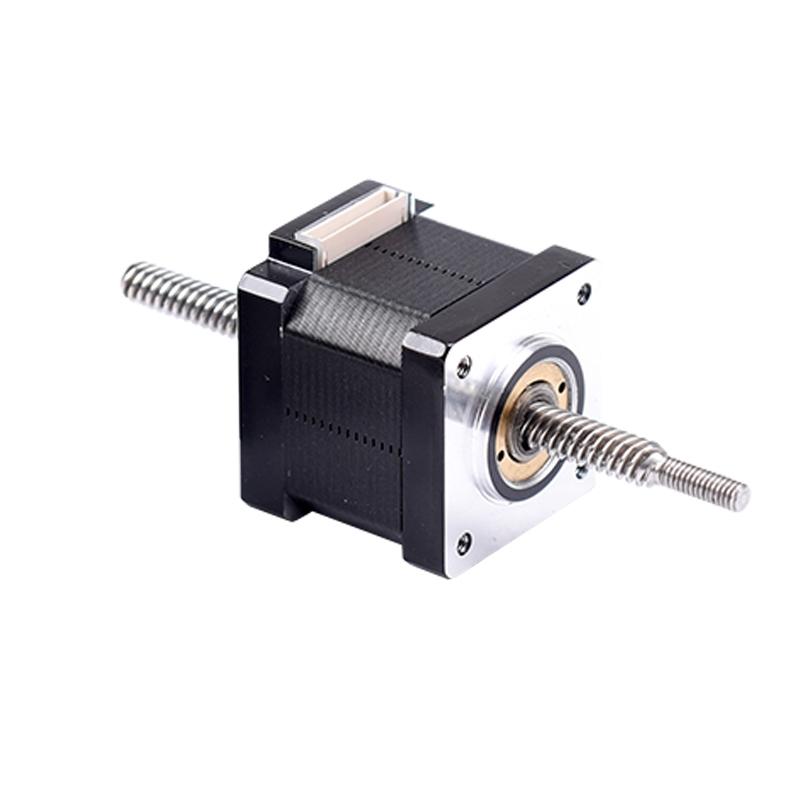

LN14 SERIES
LN14S3150-W0601-300MN

Name: LN14S3150-W0601-300MN
Brand: Lin Engineering
SKU: LN14S3150-W0601-300MN
Price: 132.0801625 USD
Availability: InStock

Quick Facts

LN14S3150-W0601-300MN LN

Features and Benefits:

Internal Nut: Non-Captive Configuration
Multiple Lead screw options available
Fast lead times and delivery

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure

Configure your motor using the online configuration tool.

Test

Start testing within your application with minimum downtime.

Iterate

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size	1.390 in
Motor Length	1.380 in
Rated Current	1.5 AMP
Motor Step Angle	1.8°
Screw Lead	0.039 in
Screw Diameter	0.240 in
Screw Length	11.810 in
Linear Travel Per Step	0 in
Resistance	1.61 ohm
Rotor Inertia	0.109 oz-in²
Winding	bipolar
Weight	0.461 lbs

Motor Dimensions

Dimension A	1.380 in
Dimension L (Lx + Lu)	11.810 in (±0.060 in)

Performance Chart

LN14S3150 with W0601 screw

24 VDC, 1.5 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U	0.276 in
Dimension T	M4x0.7

Leadscrew End Finish (Back)
