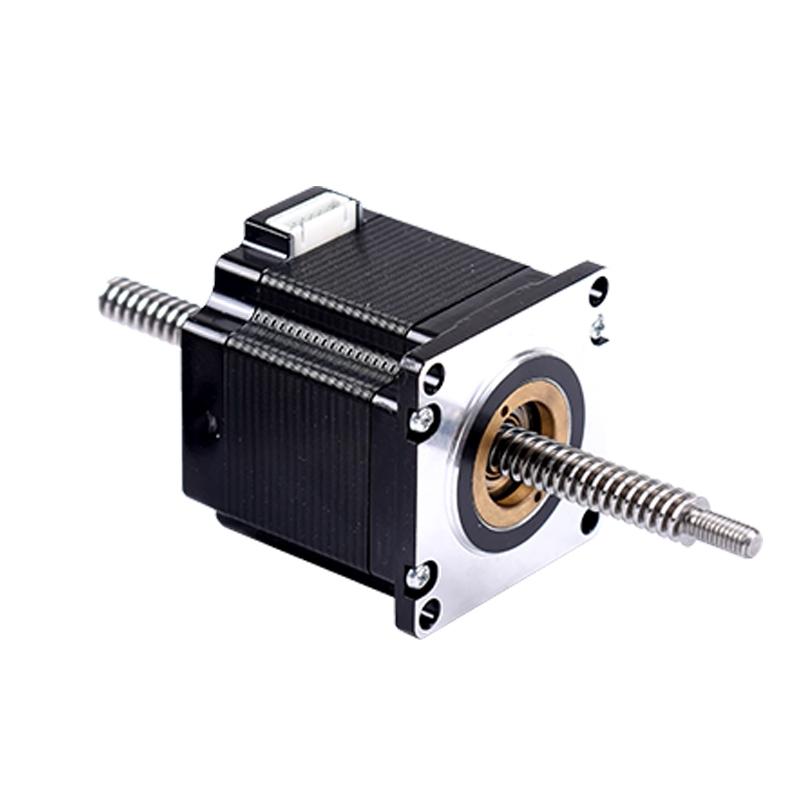

LN23 Series
Features and Benefits:
- Internal Nut: Non-Captive Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Specifications:
- NEMA 23 (2.220 in) Frame Size
- 1.8° Step Angle Stepper Motor
- 1.77 to 3.11 in Motor Length
- 0.2 to 0.4 in Screw Lead
Models
| Model # | Frame size | Motor Length | Rated Current | Screw Lead | Screw Diameter | Linear Travel Per Step | Availability |
|---|---|---|---|---|---|---|---|
| LN23S4150-E09050-400MN | 2.220 in | 1.770 in | 1.5 AMP | 0.200 in | 0.370 in | 0.001 in | Online |
| LN23S4150-E09102-400MN | 2.220 in | 1.770 in | 1.5 AMP | 0.400 in | 0.380 in | 0.002 in | Online |
| LN23S4210-E09050-400MN | 2.220 in | 1.770 in | 2.1 AMP | 0.200 in | 0.370 in | 0.001 in | Online |
| LN23S4210-E09102-400MN | 2.220 in | 1.770 in | 2.1 AMP | 0.400 in | 0.380 in | 0.002 in | Online |
| LN23S8220-E09050-400MN | 2.220 in | 2.240 in | 2.2 AMP | 0.200 in | 0.370 in | 0.001 in | Online |
| LN23S8220-E09102-400MN | 2.220 in | 2.240 in | 2.2 AMP | 0.400 in | 0.380 in | 0.002 in | Online |
| LN23SA300-E09050-400MN | 2.220 in | 3.110 in | 3 AMP | 0.200 in | 0.370 in | 0.001 in | Online |
| LN23SA300-E09102-400MN | 2.220 in | 3.110 in | 3 AMP | 0.400 in | 0.380 in | 0.002 in | Online |
Performance Chart
- LN23S4150-E09050-400MN
- LN23S4150-E09102-400MN
- LN23S4210-E09050-400MN
- LN23S4210-E09102-400MN
- LN23S8220-E09050-400MN
- LN23S8220-E09102-400MN
- LN23SA300-E09050-400MN
- LN23SA300-E09102-400MN
Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| LN23S4150-E09050-400MN | 1.770 in |
| LN23S4150-E09102-400MN | 1.770 in |
| LN23S4210-E09050-400MN | 1.770 in |
| LN23S4210-E09102-400MN | 1.770 in |
| LN23S8220-E09050-400MN | 2.240 in |
| LN23S8220-E09102-400MN | 2.240 in |
| LN23SA300-E09050-400MN | 3.110 in |
| LN23SA300-E09102-400MN | 3.110 in |
