LN23 SERIES

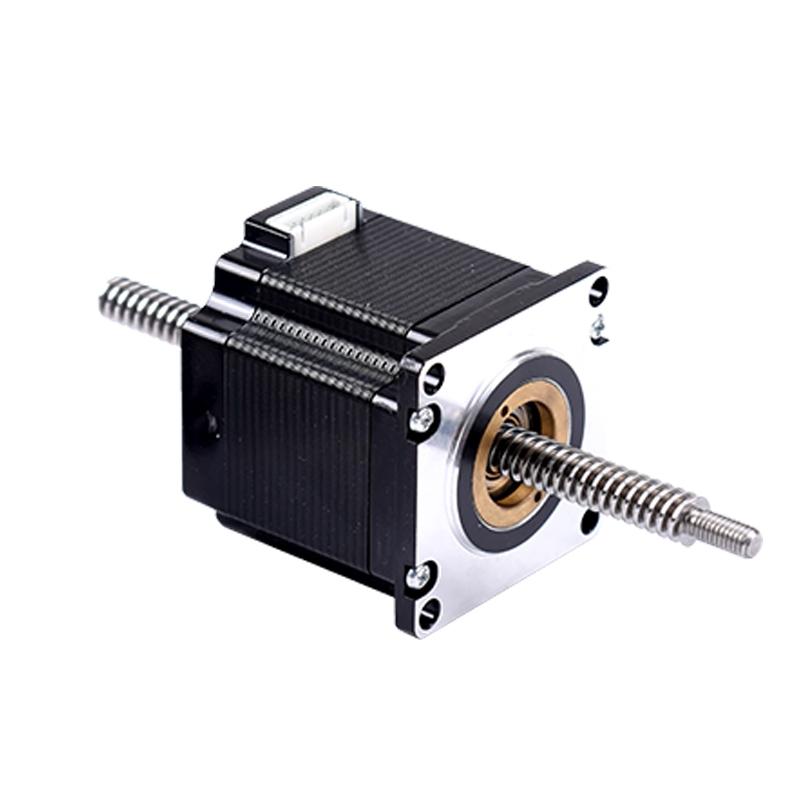

LN23S8220-E09050-400MN

Motor Configuration:

Screw

Ø: 0.370 in Lead: 0.200 in (E09050)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$186.45

Inventory:

5 Available in 3 Weeks

Ships:

3 Weeks

Part Number:

LN23S8220-E09050-400MN

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size2.220 in
Motor Length2.240 in
Rated Current2.2 AMP
Motor Step Angle1.8°
Screw Lead0.200 in
Screw Diameter0.370 in
Screw Length15.750 in
Linear Travel Per Step0 in
Resistance1.6 ohm
Rotor Inertia1.18 oz-in²
Windingbipolar
Weight1.321 lbs

Motor Dimensions

Dimension A2.240 in
Dimension L (Lx + Lu)15.750 in (±0.060 in)

Performance Chart

LN23S8220 with E09050 screw
24 VDC, 2.2 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U0.512 in
Dimension TM6X1.0

Leadscrew End Finish (Back)

No End Finish

DimensionsN/A

Downloads

LN23S8220-E09050-400MN Configured Datasheet (PDF)
