Part Number
LN23SA300-E09102-400MN
Screw
Ø: 0.380 in Lead: 0.400 in (E09102)
Screw Length
Screw End Finish (front)
Metric Threaded End
Screw End Finish (back)
No End Finish
Unit Price:
$173.47
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
LN23 SERIESLN23SA300-E09102-400MN
Quick Facts

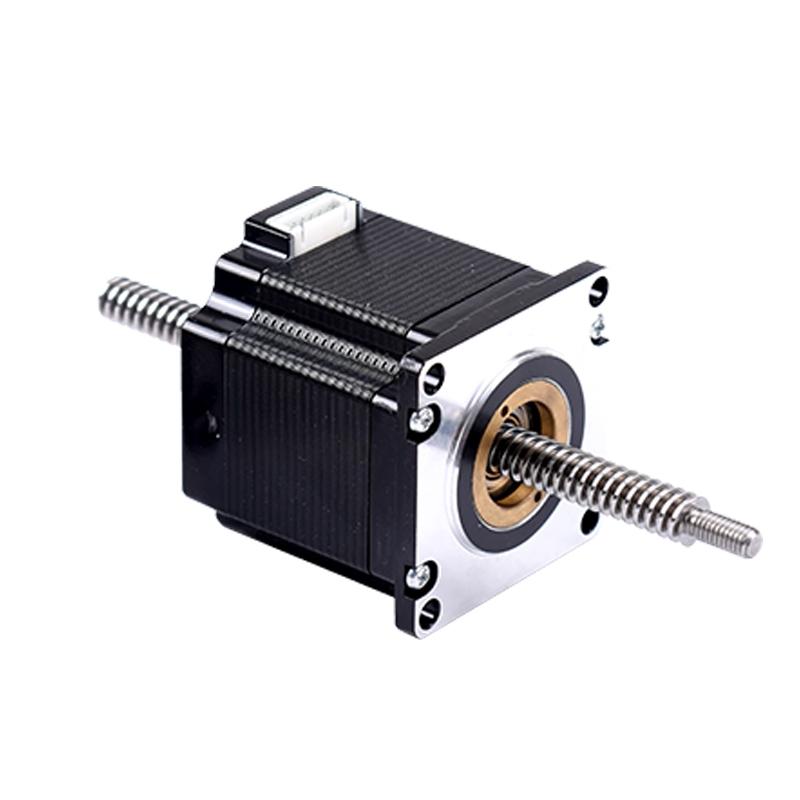

LN23SA300-E09102-400MN LN
- Internal Nut: Non-Captive Configuration
- Multiple Lead screw options available
- Fast lead times and delivery
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
| Motor Frame Size | 2.220 in |
| Motor Length | 3.110 in |
| Rated Current | 3 AMP |
| Motor Step Angle | 1.8° |
| Screw Lead | 0.400 in |
| Screw Diameter | 0.380 in |
| Screw Length | 15.750 in |
| Linear Travel Per Step | 0 in |
| Resistance | 1.1 ohm |
| Rotor Inertia | 2.52 oz-in² |
| Winding | bipolar |
| Weight | 2.421 lbs |
Motor Dimensions
| Dimension A | 3.110 in |
| Dimension L (Lx + Lu) | 15.750 in (±0.060 in) |
Performance Chart
LN23SA300 with E09102 screw
24 VDC, 3 AMP/Phase
Leadscrew End Finish (Front)
Metric Threaded End
| Dimension U | 0.512 in |
| Dimension T | M6x1 |
Leadscrew End Finish (Back)
No End Finish
| Dimensions | N/A |
