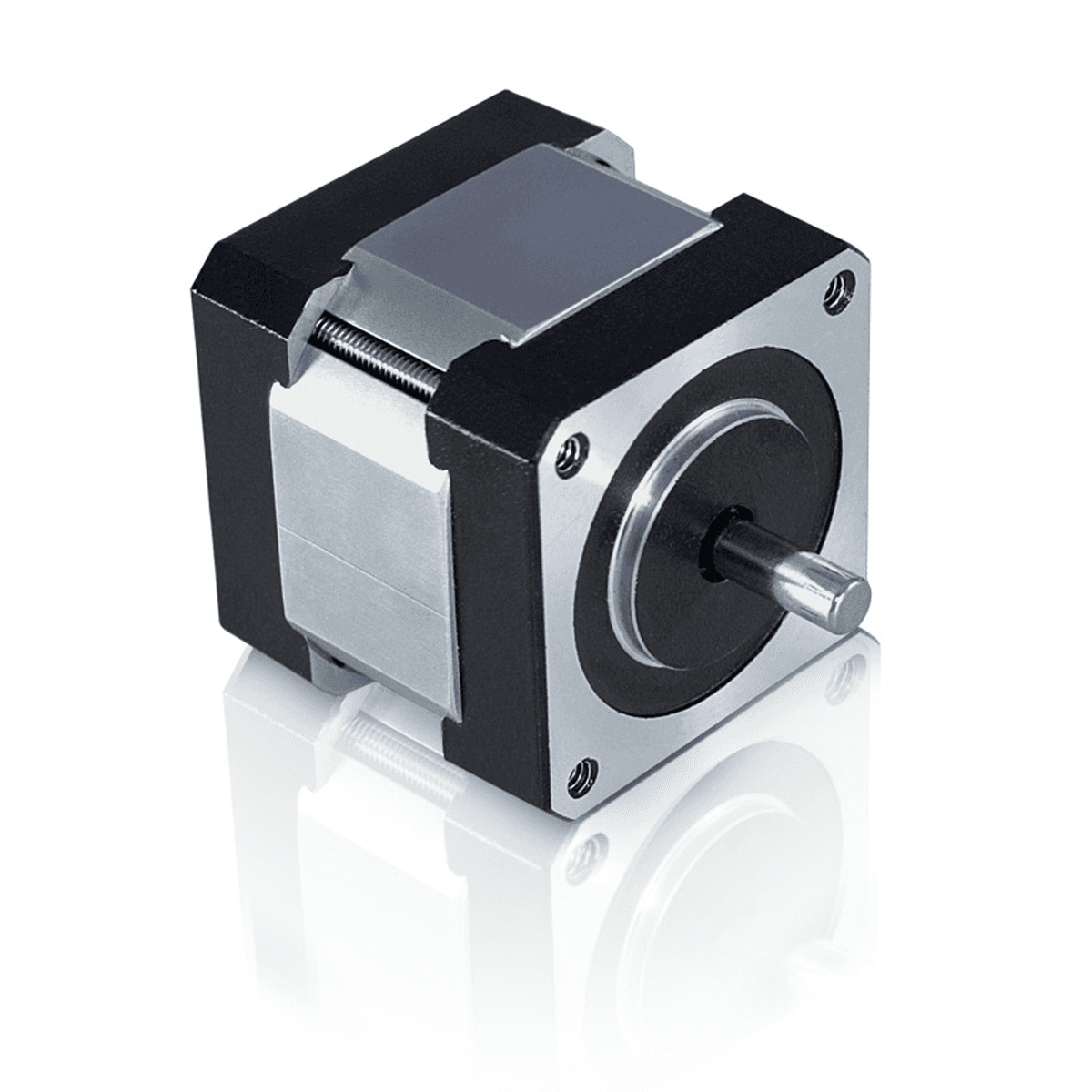

Dimensions
| Model | DIM. A (length) in |
|---|---|
| 417-09-18 | 0.930 in |
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 417-09-18 |
| Step Angle | 0.9° |
| Frame Size | 1.650 in |
| NEMA Size | NEMA 17 |
| Body Length | 0.930 in |
| Current (AMP) | 0.6 AMP |
| Holding Torque | 11.33 oz-in |
| Resistance | 10 ohm |
| Rotor Inertia | 0.05 oz-in² |
| Number of leads | 4 |
| Connection | Bipolar |
| Weight | 0.302 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 2 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 6 lbs |
| Dimension "K" | 0.620 in |
| Max Axial Load | 6 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
417 Series
Downloads
417-09-18 Configured Datasheet (PDF)
Motor Numbering System (PDF)
