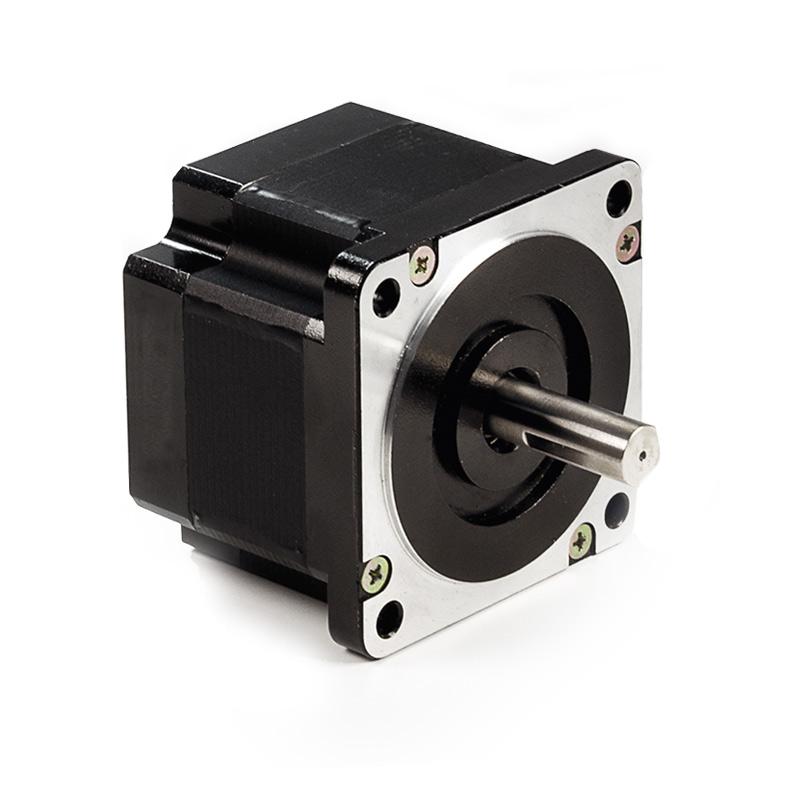

8718 Series - Rapid Prototyping Motors8718L-08SHybrid Stepper Motor
Quick Facts
8718L-08S Series Hybrid Stepper Motors
- High Torque
- Cost effective
Dimensions
| Model | DIM. A (length) in |
|---|---|
| 8718L-08S | 5.000 in |
Torque Curves
Speed
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | 8718L-08S |
| Configured Motor Part Number | WO-8718L-08S |
| Step Angle | 1.8° |
| Frame Size | 3.390 in |
| NEMA Size | NEMA 34 |
| Body Length | 5.000 in |
| Current (AMP) | 3.85 AMP |
| Holding Torque | 1288.67 oz-in |
| Resistance | 1.2 ohm |
| Rotor Inertia | 21.9 oz-in² |
| Number of leads | 4 |
| Connection | Series |
| Weight | 8.442 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 39 lbs |
| Dimension "K" | 0.900 in |
| Max Axial Load | 25 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 900 VAC for 1 minute |
