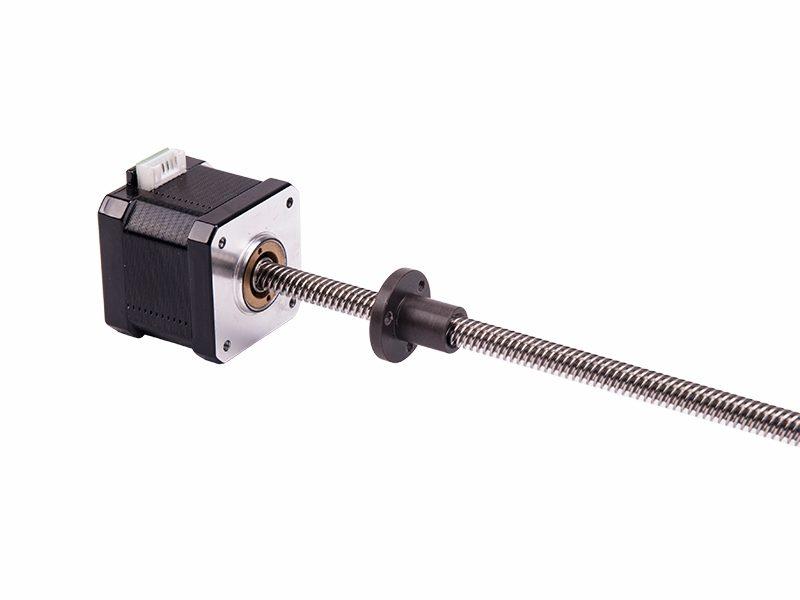

LE17 SERIESLE17D4065-T0804-300N-AR
Motor Configuration:
Screw
Ø: 0.310 in Lead: 0.157 in (T0804)
Screw Length
Screw End Finish
No End Finish
Nut
Circular Flange (AR)
Unit Price:
$138.60
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LE17D4065-T0804-300N-AR
Looking For Higher Volume?
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
Motor Frame Size | 1.670 in |
Motor Length | 1.350 in |
Rated Current | 0.65 AMP |
Motor Step Angle | 1.8° |
Screw Lead | 0.157 in |
Screw Diameter | 0.310 in |
Screw Length | 11.810 in |
Linear Travel Per Step | 0 in |
Resistance | 8.7 ohm |
Rotor Inertia | 0.208 oz-in² |
Winding | bipolar |
Weight | 0.5 lbs |
Motor Dimensions
Dimension A | 1.350 in |
Dimension L (Lx + Lu) | 11.810 in (±0.060 in) |
![Dimensions](https://lin-product-images.s3.amazonaws.com/1663784825028-N17-FRONT-LINEAR-LE-PIN.png)
![Dimensions](https://lin-product-images.s3.amazonaws.com/1661156252938-N17-SIDE-LINEAR-LE.png)
Performance Chart
LE17D4065 with T0804 screw
24 VDC, 0.65 AMP/Phase
Nut Dimension
Title | AR |
Flange Type | Circular Flange |
Nut Style | Free Running |
![Dimensions](https://lin-product-images.s3.amazonaws.com/1661156253382-Nut-AR3-Dimension-e1540833846439-1024x517.png)
Leadscrew End Finish (Front)
No End Finish
Dimensions | N/A |
![Dimensions](https://lin-web.s3.us-west-2.amazonaws.com/images/rapid-prototype-configurator/NO-MOD-END-FINISH-LINEAR-LE.png)
Downloads
LE17D4065-T0804-300N-AR Configured Datasheet (PDF)
