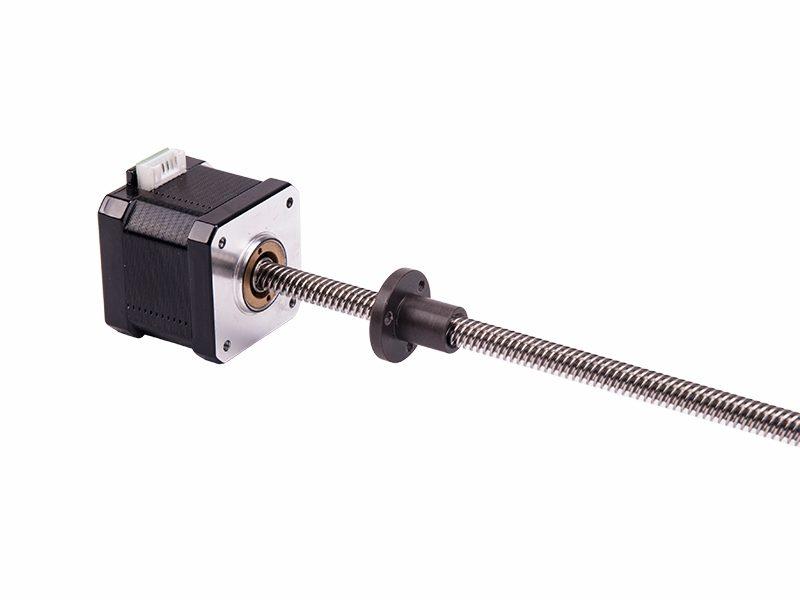

LE17 SERIESLE17D4065-T0808-300N-AR
Motor Configuration:
Screw
Ø: 0.320 in Lead: 0.315 in (T0808)
Screw Length
Screw End Finish
No End Finish
Nut
Circular Flange (AR)
Unit Price:
$138.60
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
LE17D4065-T0808-300N-AR
Looking For Higher Volume?
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Actuator Specifications
| Motor Frame Size | 1.670 in |
| Motor Length | 1.350 in |
| Rated Current | 0.65 AMP |
| Motor Step Angle | 1.8° |
| Screw Lead | 0.315 in |
| Screw Diameter | 0.320 in |
| Screw Length | 11.810 in |
| Linear Travel Per Step | 0 in |
| Resistance | 8.7 ohm |
| Rotor Inertia | 0.208 oz-in² |
| Winding | bipolar |
| Weight | 0.5 lbs |
Motor Dimensions
| Dimension A | 1.350 in |
| Dimension L (Lx + Lu) | 11.810 in (±0.060 in) |
Performance Chart
LE17D4065 with T0808 screw
24 VDC, 0.65 AMP/Phase
Nut Dimension
| Title | AR |
| Flange Type | Circular Flange |
| Nut Style | Free Running |
Leadscrew End Finish (Front)
No End Finish
| Dimensions | N/A |
Downloads
LE17D4065-T0808-300N-AR Configured Datasheet (PDF)
