Part Number

LN17D2200-E06008-300MN

Motor Configuration:

Screw

Ø: 0.250 in Lead: 0.031 in (E06008)

Screw Length

Screw End Finish (front)

Metric Threaded End

Screw End Finish (back)

No End Finish

Unit Price:

$135.15

Inventory:

5 Available in 10 Business Days

Ships:

10 Business Days

QTY

Looking For Higher Volume?

LN17 SERIES

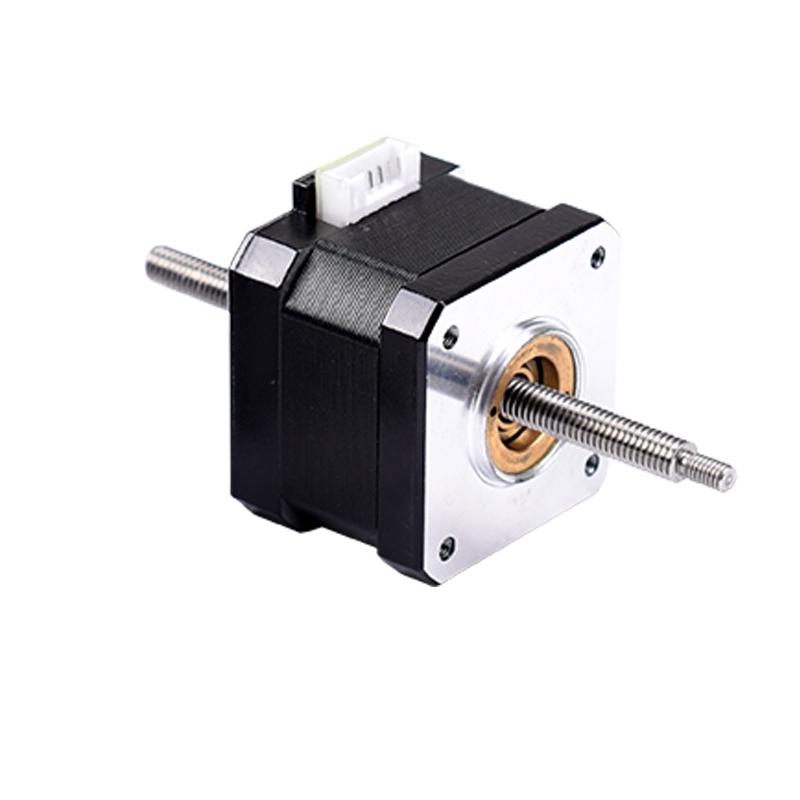

LN17D2200-E06008-300MN

Name: LN17D2200-E06008-300MN
Brand: Lin Engineering
SKU: LN17D2200-E06008-300MN
Price: 135.1533333 USD
Availability: InStock

Quick Facts

LN17D2200-E06008-300MN LN

Features and Benefits:

Internal Nut: Non-Captive Configuration
Multiple Lead screw options available
Fast lead times and delivery

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure

Configure your motor using the online configuration tool.

Test

Start testing within your application with minimum downtime.

Iterate

We’ll work with you to nail down the final design.

Actuator Specifications

Motor Frame Size	1.670 in
Motor Length	1.570 in
Rated Current	2 AMP
Motor Step Angle	1.8°
Screw Lead	0.031 in
Screw Diameter	0.250 in
Screw Length	11.810 in
Linear Travel Per Step	0 in
Resistance	1 ohm
Rotor Inertia	0.312 oz-in²
Winding	bipolar
Weight	0.619 lbs

Motor Dimensions

Dimension A	1.570 in
Dimension L (Lx + Lu)	11.810 in (±0.060 in)

Performance Chart

LN17D2200 with E06008 screw

24 VDC, 2 AMP/Phase

Leadscrew End Finish (Front)

Metric Threaded End

Dimension U	0.276 in
Dimension T	M4X0.7

Leadscrew End Finish (Back)
